Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. PERFORM ACTIVE TEST BY HAND-HELD TESTER (COMBINATION METER)
    1. Operate the hand-held tester according to the steps on the display and perform the "ACTIVE TEST".
      HAND-HELD TESTER ACTIVE TEST DETAIL

      Item Test Details Diagnostic Note
      TACHOMETER 0 rpm /1000 rpm / 2000 rpm / 3000 rpm / 4000 rpm / 5000 rpm / 6000 rpm / 7000 -
    1. NG: CHECK AND REPLACE COMBINATION METER ASSY
    2. OK: GO TO NEXT STEP
  2. READ VALUE OF HAND-HELD TESTER (COMBINATION METER)
    1. Operate the hand-held tester according to the steps on the display and select "DATA LIST".
      HAND-HELD TESTER VALUE DETAIL

      Item Test Details Diagnostic Note
      TACHOMETER Engine speed / Min.: 0 rpm, Max.: 12,750 rpm Almost same at the meter rpm (When engine is running)
    1. OK: CHECK AND REPLACE COMBINATION METER ASSY
    2. NG: GO TO NEXT STEP
  3. READ VALUE OF HAND-HELD TESTER (ECM)
    1. Operate the hand-held tester according to the steps on the display and select "DATA LIST".
      HAND-HELD TESTER VALUE DETAIL

      Item Test Details Diagnostic Note
      TACHOMETER Engine speed / Min.: 0 rpm, Max.: 12,750 rpm -
    1. NG: GO TO ENGINE CONTROL SYSTEM
    2. OK: GO TO NEXT STEP
  4. INSPECT COMBINATION METER ASSY

    (REFERENCE) INSPECTION USING OSCILLOSCOPE

    1. Check the input signal waveform.
      1. Remove the combination meter assy.
      2. Connect the oscilloscope to the terminal C10-37 and C10-30 of the combination meter assy.
      3. Start the engine.
      4. Check the signal waveform.
      ITEM AND CONTENTS

      Item Contents
      Tool setting 5 V/ DIV, 10 ms/ DIV
      Vehicle condition Engine idle speed

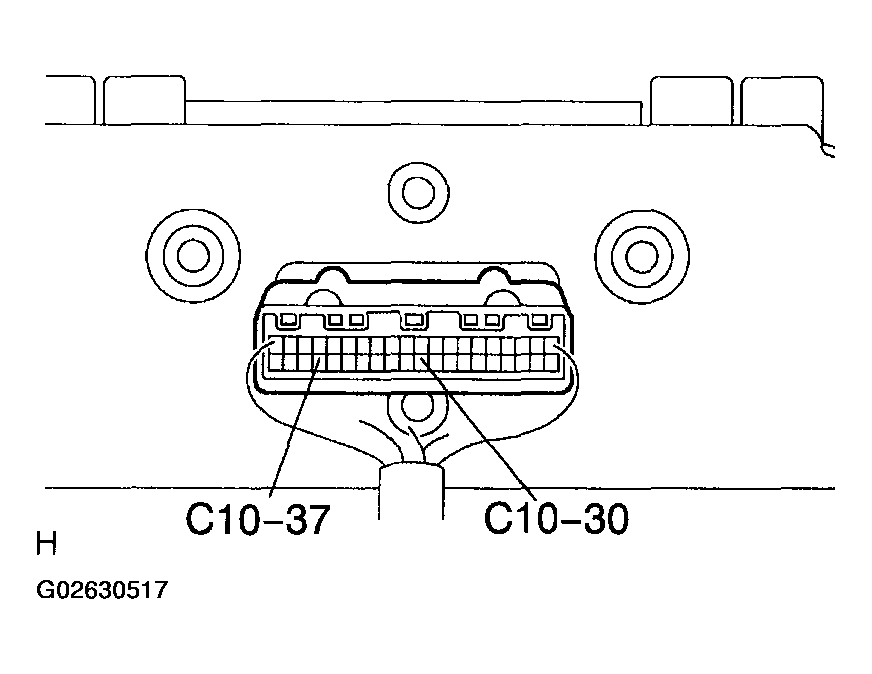

      Fig 1: Identifying Combination Meter Assy Connectors
      G02630517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: CHECK AND REPLACE COMBINATION METER ASSY

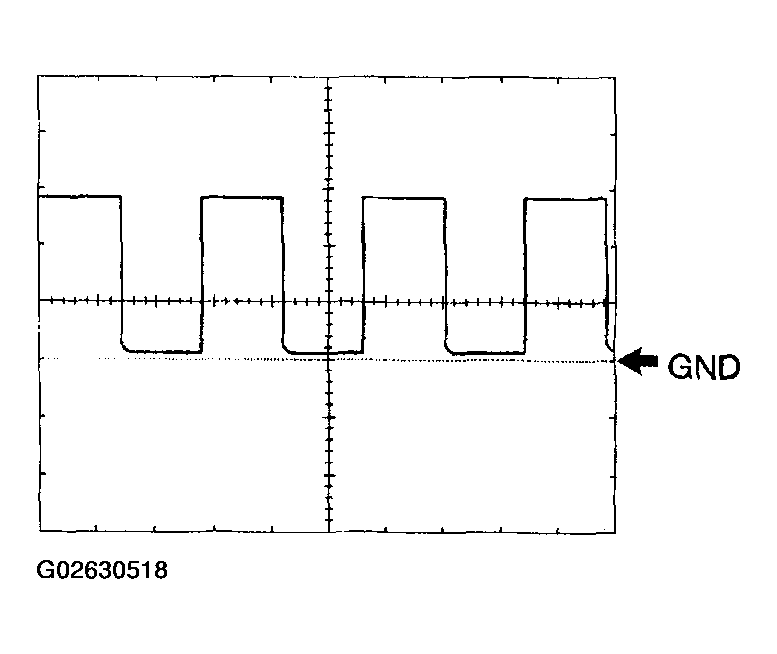

      Fig 2: Signal Waveform Graph
      G02630518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. NG: GO TO NEXT STEP
  5. CHECK HARNESS AND CONNECTOR (BETWEEN ECM AND COMBINATION METER ASSY)
    1. Remove the combination meter assy.
    2. Disconnect the connector from ECM.
    3. Check the continuity between the terminal E4-5 (TACH) of ECM and the terminal C10-37 of the combination meter connector (See TERMINALS OF ECU  ).

      Standard: Continuity.

    1. OK: CHECK AND REPLACE ECM
    2. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
