Inspection Procedure
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- PERFORM ACTIVE TEST BY HAND-HELD TESTER (COMBINATION METER)
- Operate the hand-held tester according to the steps on the display and perform the "ACTIVE TEST".HAND-HELD TESTER ACTIVE TEST DETAIL
Item Test Details Diagnostic Note SPEED METER 0/40/80/120/160 Diagnostic Note
- NG: CHECK AND REPLACE COMBINATION METER ASSY
- OK: GO TO NEXT STEP
- Operate the hand-held tester according to the steps on the display and perform the "ACTIVE TEST".
- READ VALUE OF HAND-HELD TESTER (COMBINATION METER)
- Operate the hand-held tester according to the steps on the display and select "DATA LIST".HAND-HELD TESTER VALUE DETAIL
Item Test Details Diagnostic Note SPEED METER Vehicle speed / Min.: 0 km/h, Max.: 255 km/h Almost same at the meter speed (When driving)
- NG: CHECK AND REPLACE COMBINATION METER ASSY
- OK: GO TO NEXT STEP
- Operate the hand-held tester according to the steps on the display and select "DATA LIST".
- READ VALUE OF HAND-HELD TESTER (SKID CONTROL ECU)
- Operate the hand-held tester according to the steps on the display and select "DATA LIST".HAND-HELD TESTER VALUE DETAIL
Item Test Details Diagnostic Note SPD1 Vehicle speed / Min.: 0 km/h, Max.: 255 km/h -
- NG: GO TO BRAKE SYSTEM
- OK: GO TO NEXT STEP
- Operate the hand-held tester according to the steps on the display and select "DATA LIST".
- INSPECT COMBINATION METER ASSY
(REFERENCE) INSPECTION USING OSCILLOSCOPE
- Check the input signal waveform.
- Remove the combination meter assy.

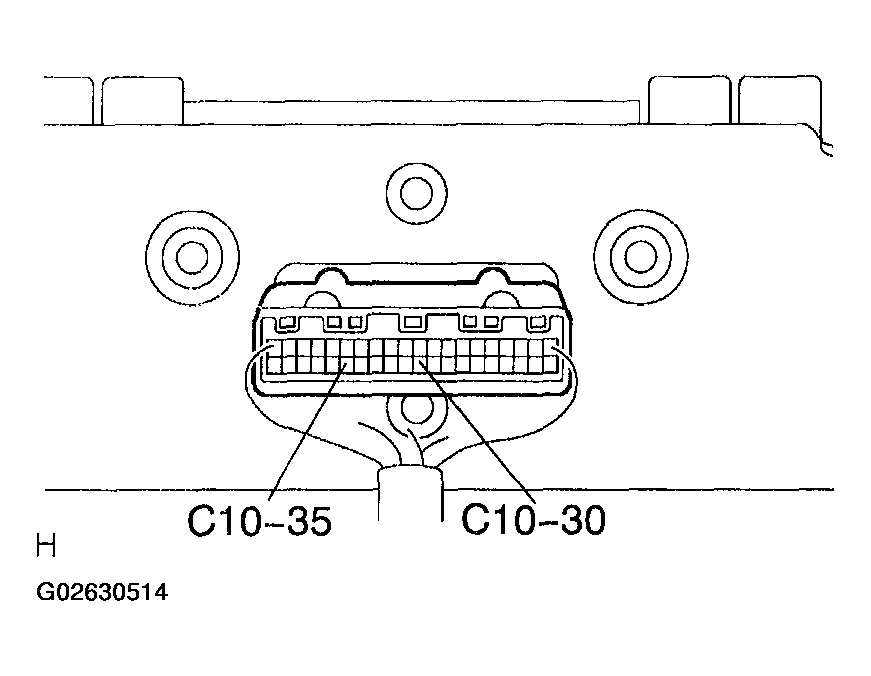

- Connect the oscilloscope to the terminal C10-35 and C10-30 of the combination meter assy.
- Start the engine.

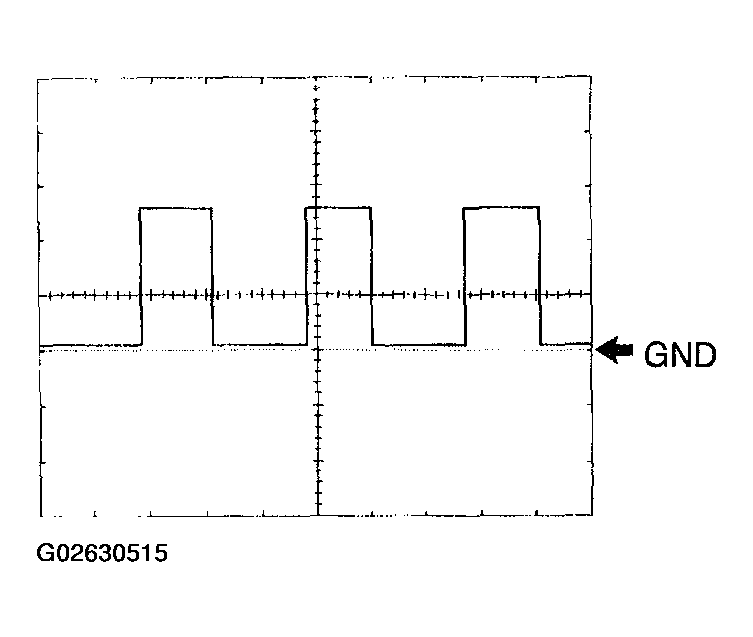

- Check the signal waveform.
ITEM AND CONTENTSItem Contents Tool setting 5 V/ DIV, 20 ms/ DIV Vehicle condition Driving at approx. 20 Km/h HINT:
As the vehicle speed becomes higher, the cycle of the signal waveform becomes shorter.
- NG: CHECK AND REPLACE COMBINATION METER ASSY
- OK: GO TO NEXT STEP
- Check the input signal waveform.
- CHECK HARNESS AND CONNECTOR (BETWEEN SKID CONTROL ECU ASSY AND COMBINATION METER ASSY)
- Remove the combination meter.
- Disconnect the connector from skid control ECU.
- Check continuity between the terminal S3-12, 17 (SP1) of skid control ECU and the terminal C10-35 of the combination meter connector.
Standard: Continuity.
- NG: CHECK AND REPLACE SKID CONTROL ECU ASSY
- OK: REPAIR OR REPLACE HARNESS OR CONNECTOR
