Inspection Procedure
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

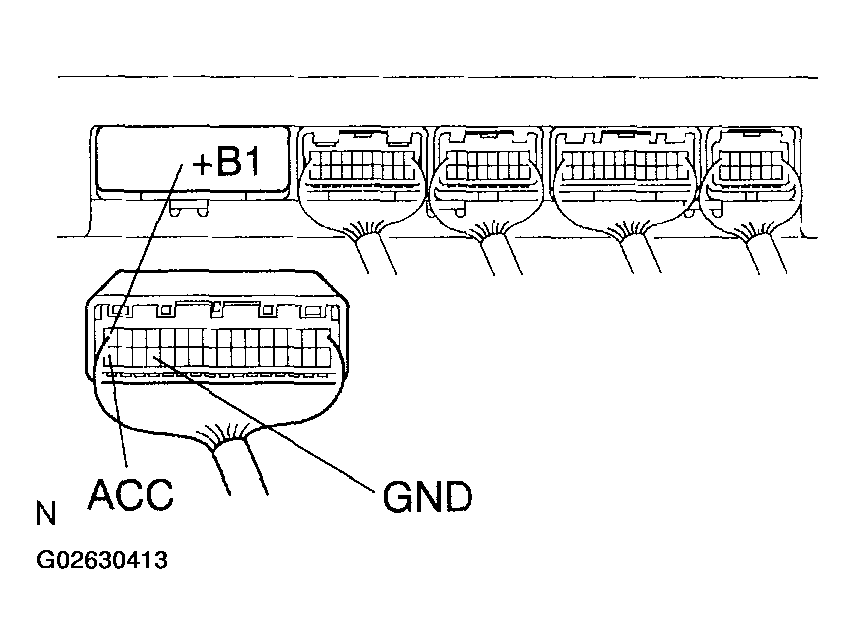

- INSPECT MULTI-DISPLAY CONTROLLER SUB-ASSY (+B1, ACC, GND)
- Disconnect the multi-display controller sub-assy connectors.
- In order to check for an open circuit, measure the resistance between the terminals according to the condition, as shown in +B1, ACC, GND (OPEN CIRCUIT)
.
Standard:
+B1, ACC, GND (OPEN CIRCUIT)Tester connection Condition Specified condition GND - Body ground Always Below 1 Ω - Check the voltage between the terminals according to the conditions, as shown in +B1, ACC, GND (VOLTAGE)
.
Standard:
+B1, ACC, GND (VOLTAGE)Tester connection Condition Specified condition +B1 - GND Always 10 to 14 V ACC - GND Ignition SW ACC 10 to 14 V Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: GO TO NEXT STEP
- CHECK FOR PROBLEM SYMPTOMS TABLE
- (See PROBLEM SYMPTOMS TABLE ).
Result:
PROBLEM SYMPTOMS TABLEA Suspected areas are cleared B Suspected areas still exist - B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- A: REPLACE MULTI-DISPLAY CONTROLLER SUB-ASSY
