Inspection Procedure
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK HARNESS AND CONNECTOR (VIDEO ADAPTER TERMINAL) - MULTI-DISPLAY CONTROLLER SUB-ASSY)
- Disconnect the video (video adapter) terminal and multi-display controller sub-assy connectors.
- In order to check for an open circuit, measure the resistance between the terminals, as shown in TESTER CONNECTION SPECIFIED CONDITION
.
Standard:
VIDEO ADAPTER TERMINAL) - MULTI-DISPLAY CONTROLLER SUB-ASSY (OPEN CIRCUIT)Tester connection Specified condition 5-NTS4 Below 1 Ω 6-SGN5 Below 1 Ω 7-SG6 Below 1 Ω - In order to check for a short circuit, measure the resistance between the terminals, as shown in TESTER CONNECTION SPECIFIED CONDITION
.
Standard:

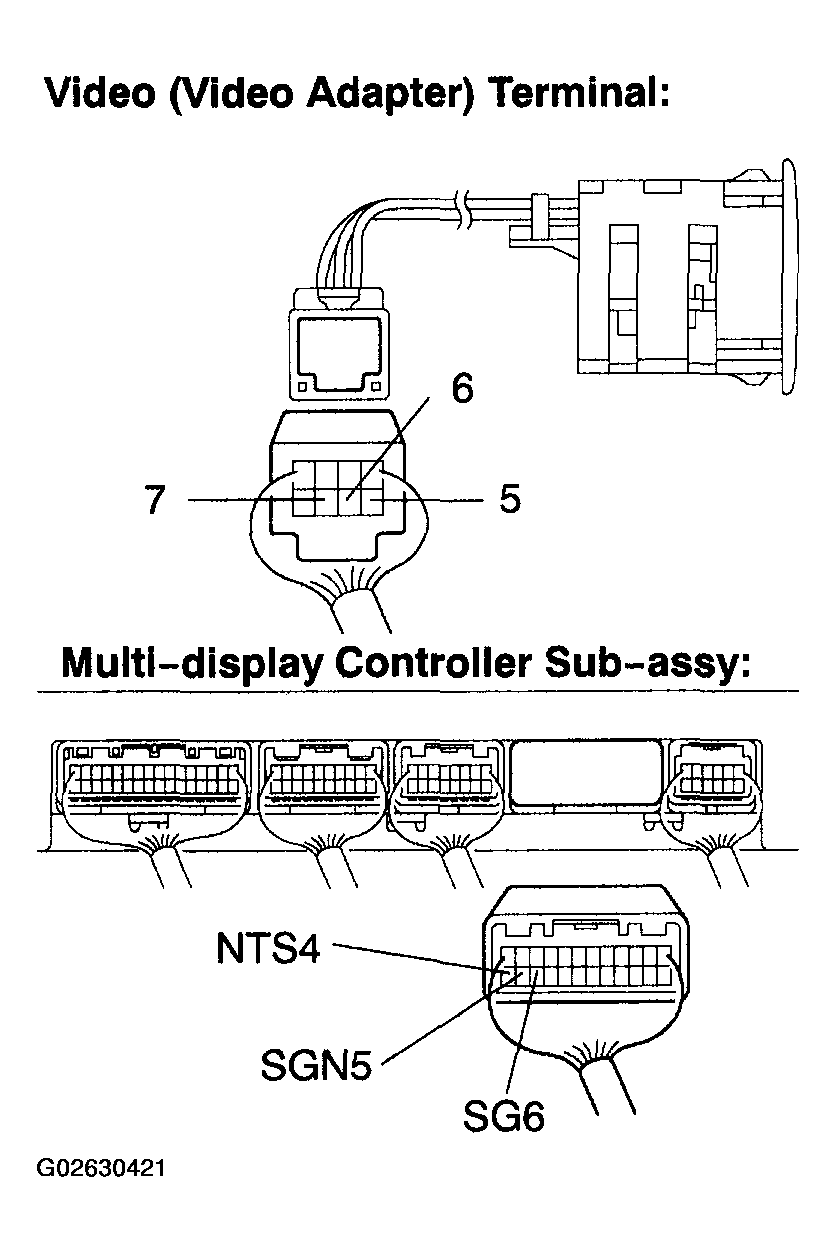

VIDEO ADAPTER TERMINAL) - MULTI-DISPLAY CONTROLLER SUB-ASSY (SHORT CIRCUIT)Tester connection Specified condition NTS4 - Body ground 10 kΩ or higher SGN5 - Body ground 10 kΩ or higher SG6 - Body ground 10 kΩ or higher Fig 1: Checking Harness And Connector (Video (Video Adapter) Terminal - Multi-Display Controller Sub-Assy)Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: GO TO NEXT STEP
- REPLACE (VIDEO ADAPTER TERMINAL)
OK: Malfunction disappears
- OK: NORMAL
- NG: REPLACE MULTI-DISPLAY CONTROLLER SUB-ASSY
