Display Check Mode

1. ENTER DIAGNOSTIC MODE (See  DIAGNOSTIC START-UP/FINISH   )
2. DISPLAY CHECK MODE

HINT:

Display check mode is operated as follows.

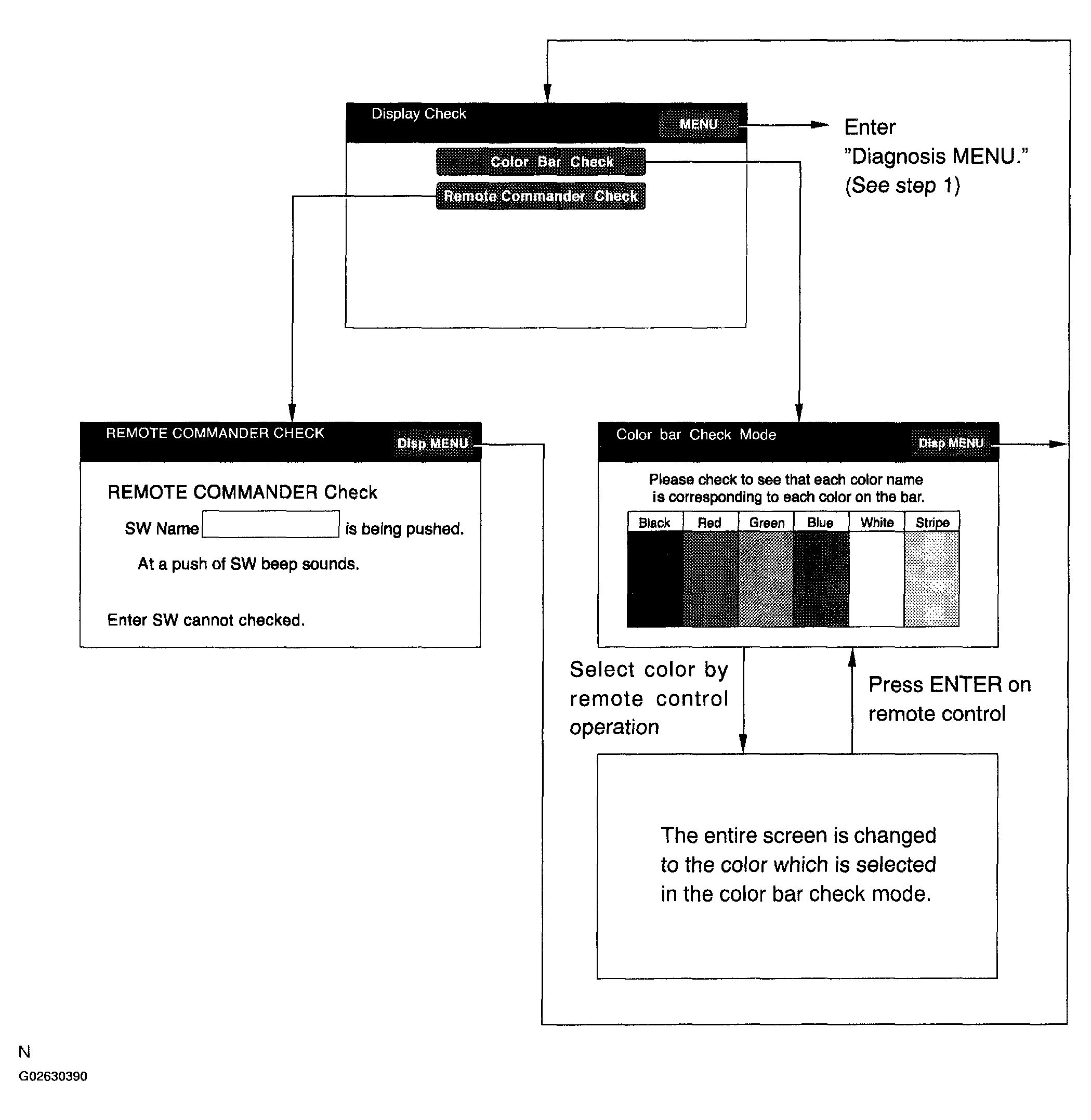

Fig 1: Display Check Mode Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Display Check Mode
   CHECK MODE SPECIFICATION



   Display	Contents
   Color Bar Check/*1	Color display is checked.
   Remote Commander/*2	Operating condition of remote commander display is checked.

   HINT:

   In Display Check Mode, above checks can be performed.

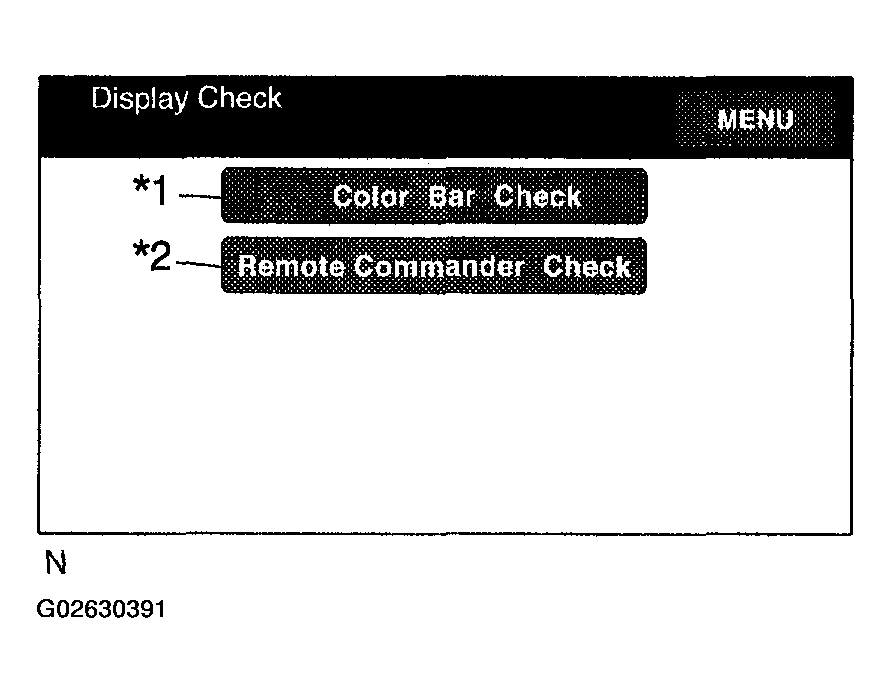

   Fig 2: Displaying Check Mode Menu

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Display Color Bar Check
   1. Start the Diagnosis System.
   2. Select "MENU".
   3. Select "Display Check".
   4. Select "Color Bar Check".
   5. Make sure that each color name is corresponding to each color on the bar.

      HINT:

      Select Black, Red, Green, Blue, White and Stripe to display selected colors and stripe on the entire screen.

   6. Compare the color with the Color Bar Check, and make sure that the color is the same.

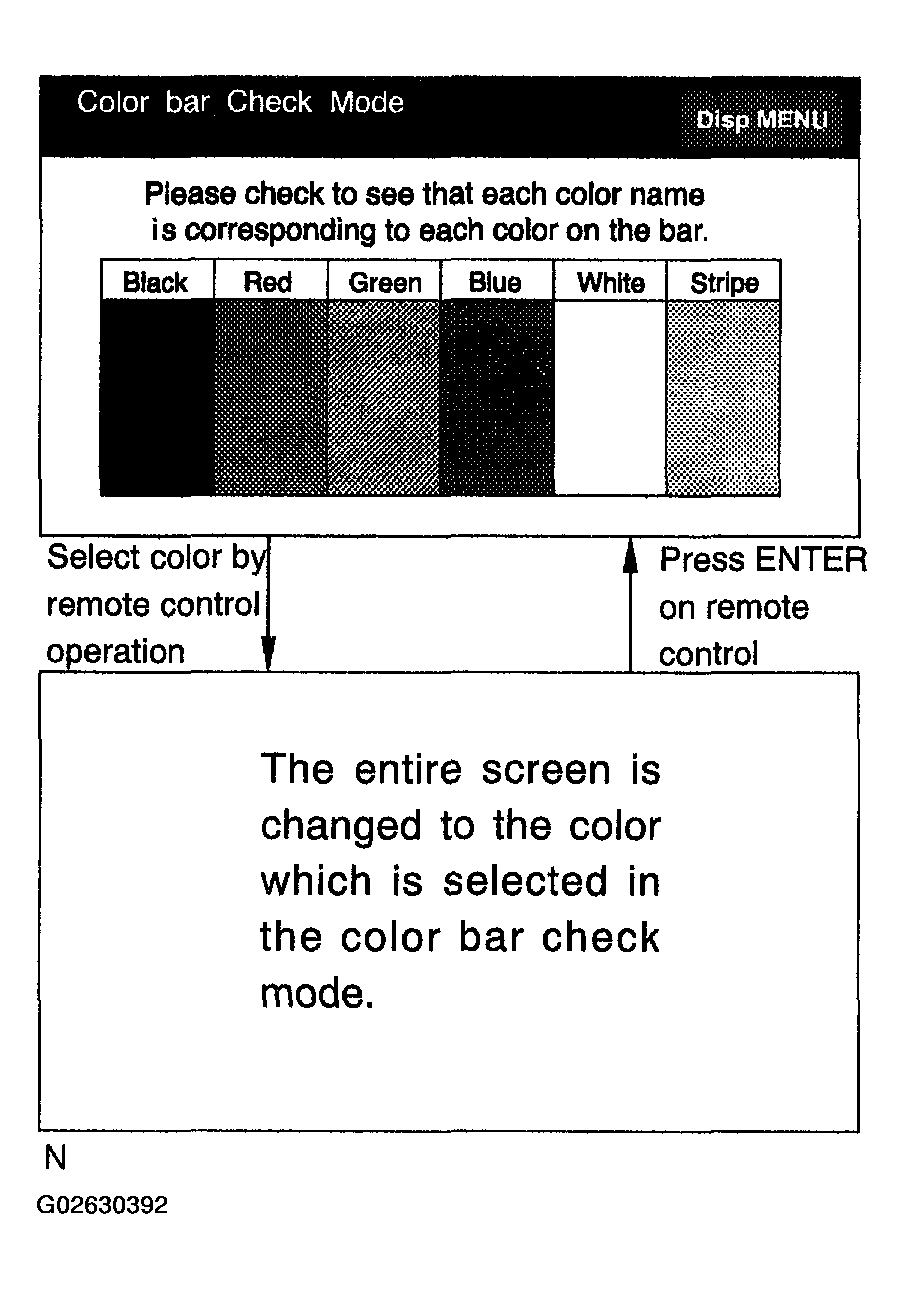

   Fig 3: Displaying Color Bar Check Menu

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Display Remote Commander Check
   1. Start the Diagnosis system.
   2. Select "MENU".
   3. Select "Display Check".
   4. Select "Remote Commander".
   5. Press each switch and make sure that it corresponds to the display on the screen.

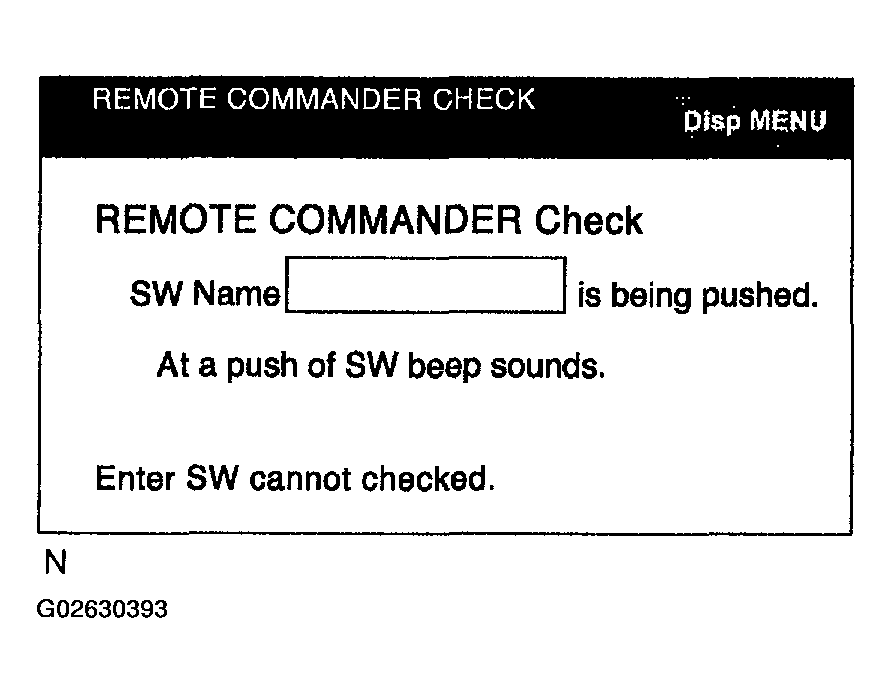

   Fig 4: Displaying Remote Commander Check Menu

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
