Diagnostic Trouble Code Table
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
DIAGNOSTIC TROUBLE CODE TABLE
| Terms | Meaning |
|---|---|
| Physical address | Three-digit code (shown in hexadecimal) which is given to each component comprising the AVC-LAN. Corresponding to the function, individual symbols are specified. |
| Logical address | Two-digit code (shown in hexadecimal) which is given to each function comprising the inner system of the AVC-LAN. |
HINT:
The DTC of the Main AVC-LAN circuit is displayed on the radio receiver assy or radio and navigation assy, and the DTC of the Sub AVC-LAN circuit is displayed on the television display assy.
Titles for each unit are stated in the following order: parts name, (physical address) and [name indicated on the DTC display].

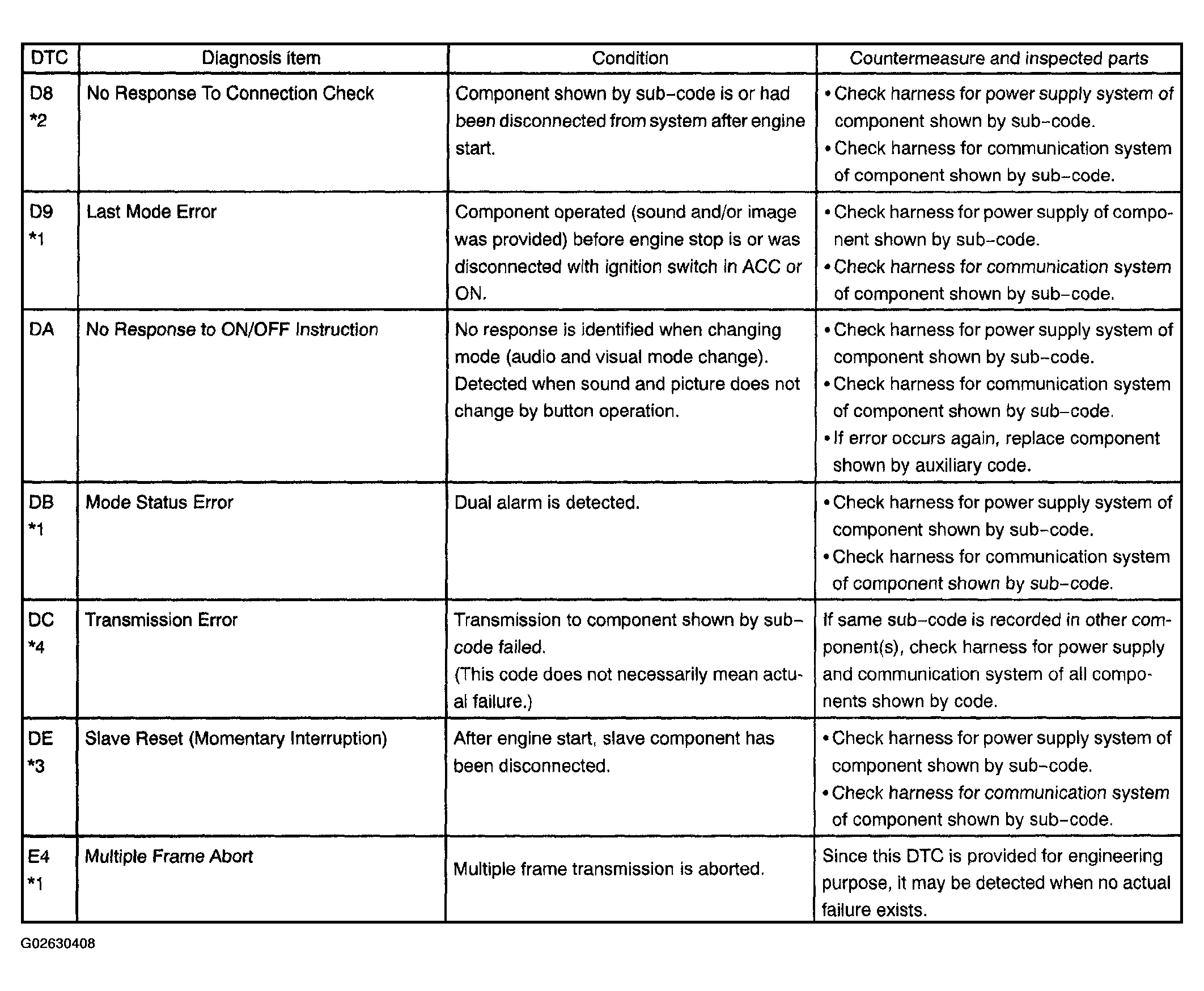

- MULTI-DISPLAY CONTROLLER SUB-ASSY (Physical address: 16C) [RSE ECU]
HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code is stored when 180 seconds have passed after the power supply connector is pulled out after engine start.
- *3: This code may be stored when the engine key is turned again after the engine starts.
- *4: This code may be stored when the engine key is turned again in 1 minute after the engine starts.
- Sub (16C)-AVC-LAN L-1
Logical address: 01 (Communication control)

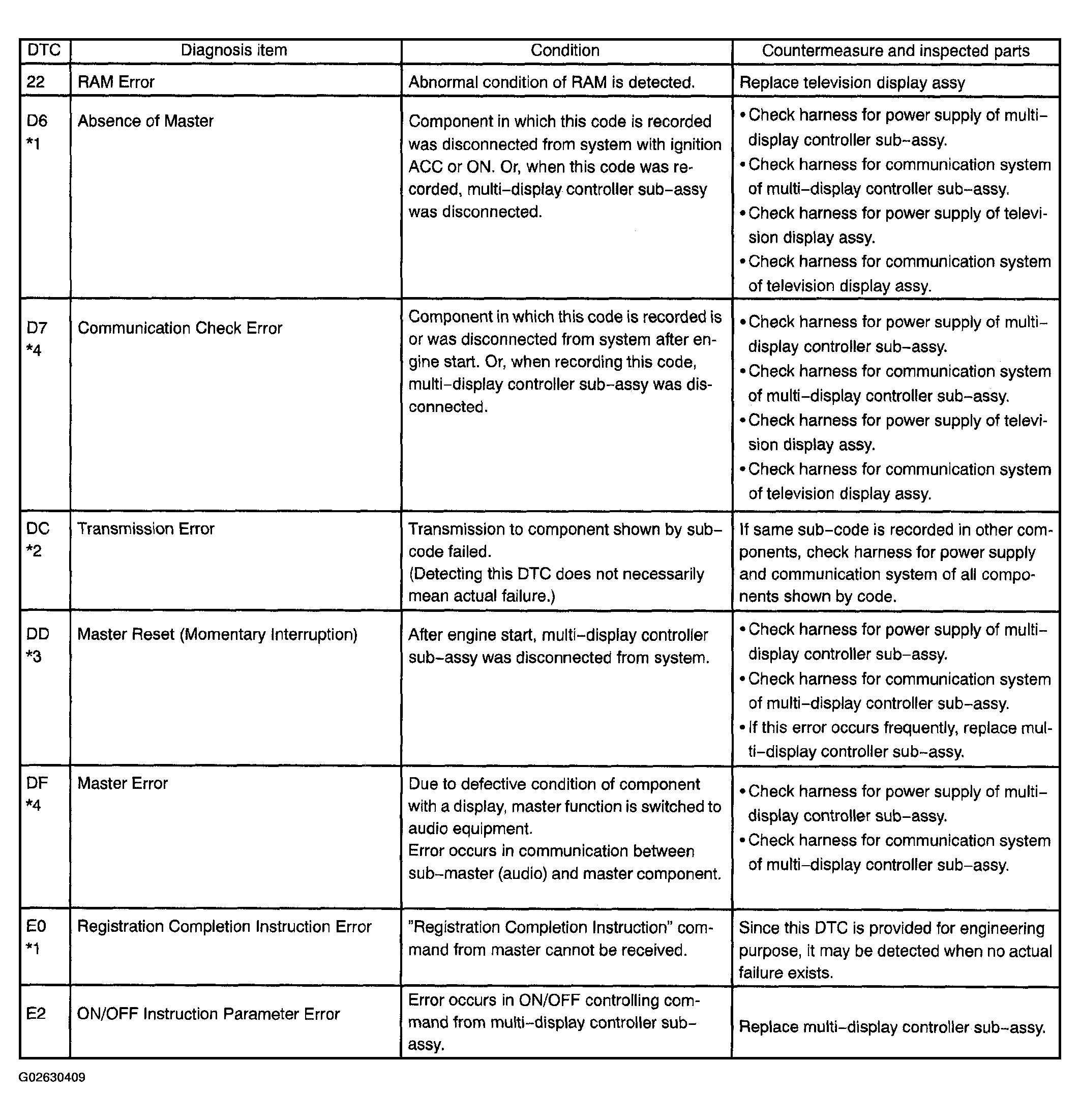

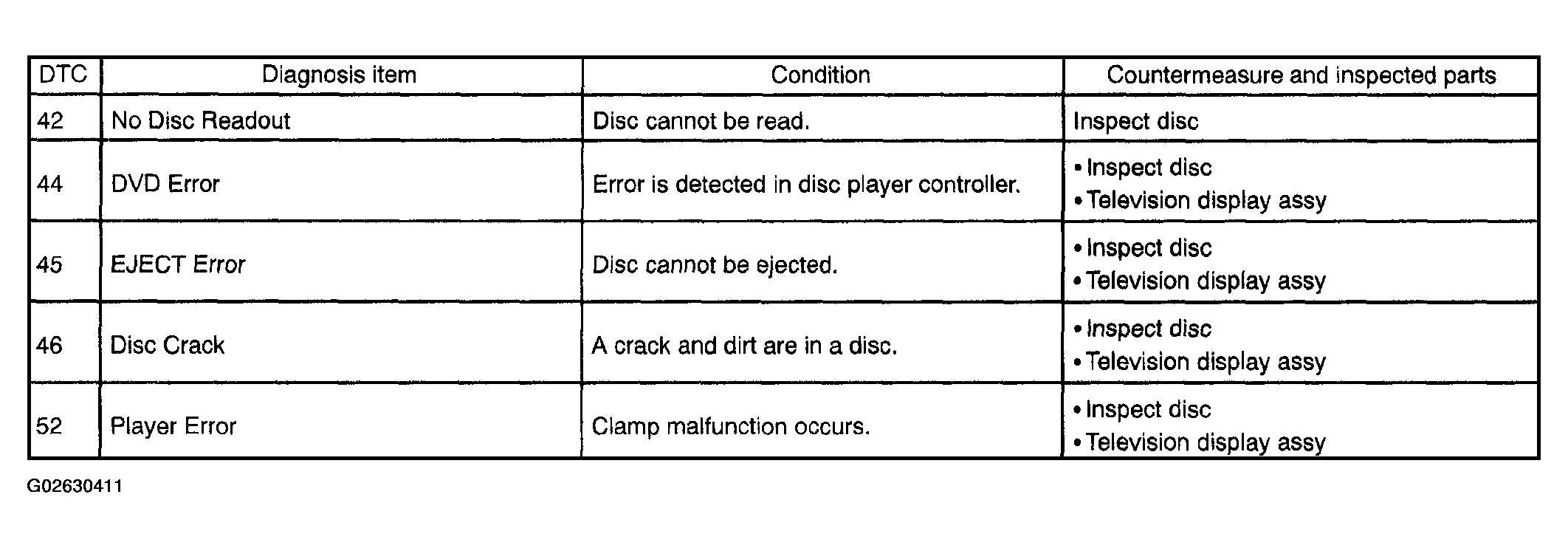

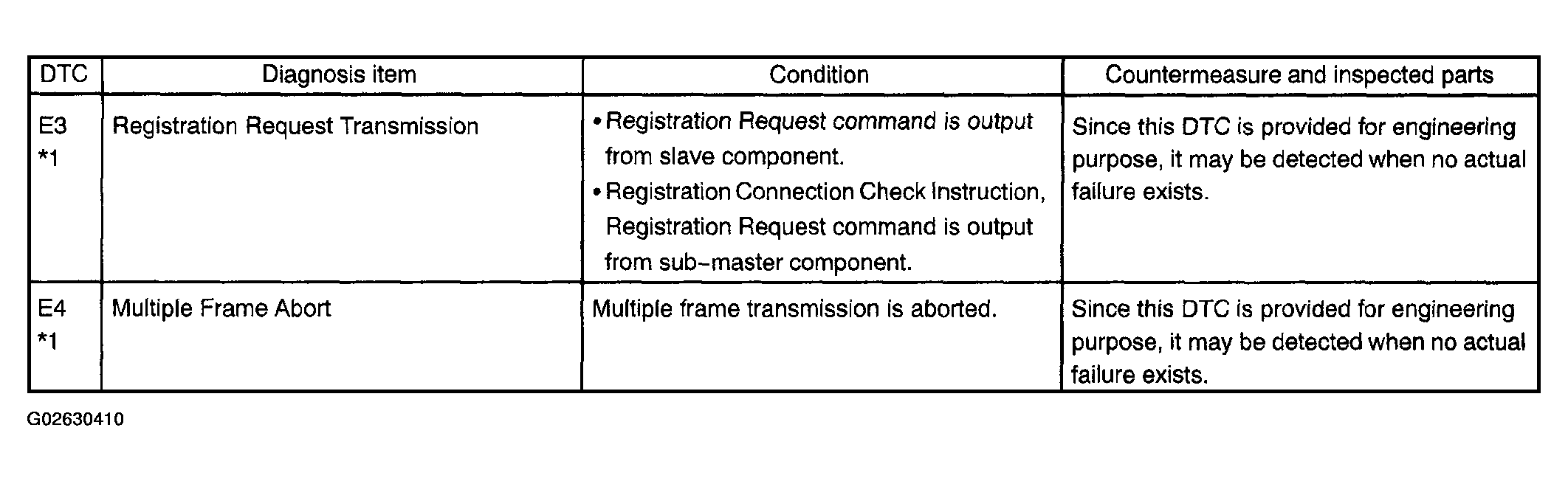

- TELEVISION DISPLAY ASSY (Physical address: 1B0) [Rr TV]
HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code may be stored when the engine key is turned again in 1 minute after the engine starts.
- *3: This code may be stored when the engine key is turned again after the engine starts.
- *4: When 210 seconds have passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
