Inspection Procedure
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
Start the inspection from step 1 in the case of using the hand-held tester, and start from step 2 in the case of not using the hand-held tester.
- READ VALUE OF HAND-HELD TESTER
- Connect the hand-held tester to DLC3.
- Turn the ignition switch ON and push the hand-held tester main switch ON.
- Select the items below in the DATA LIST, and read the displays on the hand-held tester.
BODY NO.1:
DIAGNOSIS PROCEDURE (BODY NO. 1)Item Measurement Item/Display (Range) Normal Condition Diagnostic Note PARKING BRAKE SW Parking brake SW signal/ON or OFF ON: Parking brake pedal is ON OFF: Parking brake pedal is OFF - - OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE )
- NG: GO TO NEXT STEP
- INSPECT PARKING BRAKE SWITCH ASSY
- Check that there is continuity between the terminal and the body ground when parking brake switch is operated.
Standard:
ON (When shaft is pressed): No continuity
OFF (When shaft is not pressed): Continuity
- NG: REPLACE PARKING BRAKE SWITCH ASSY
- OK: GO TO NEXT STEP
- Check that there is continuity between the terminal and the body ground when parking brake switch is operated.
- CHECK HARNESS AND CONNECTOR

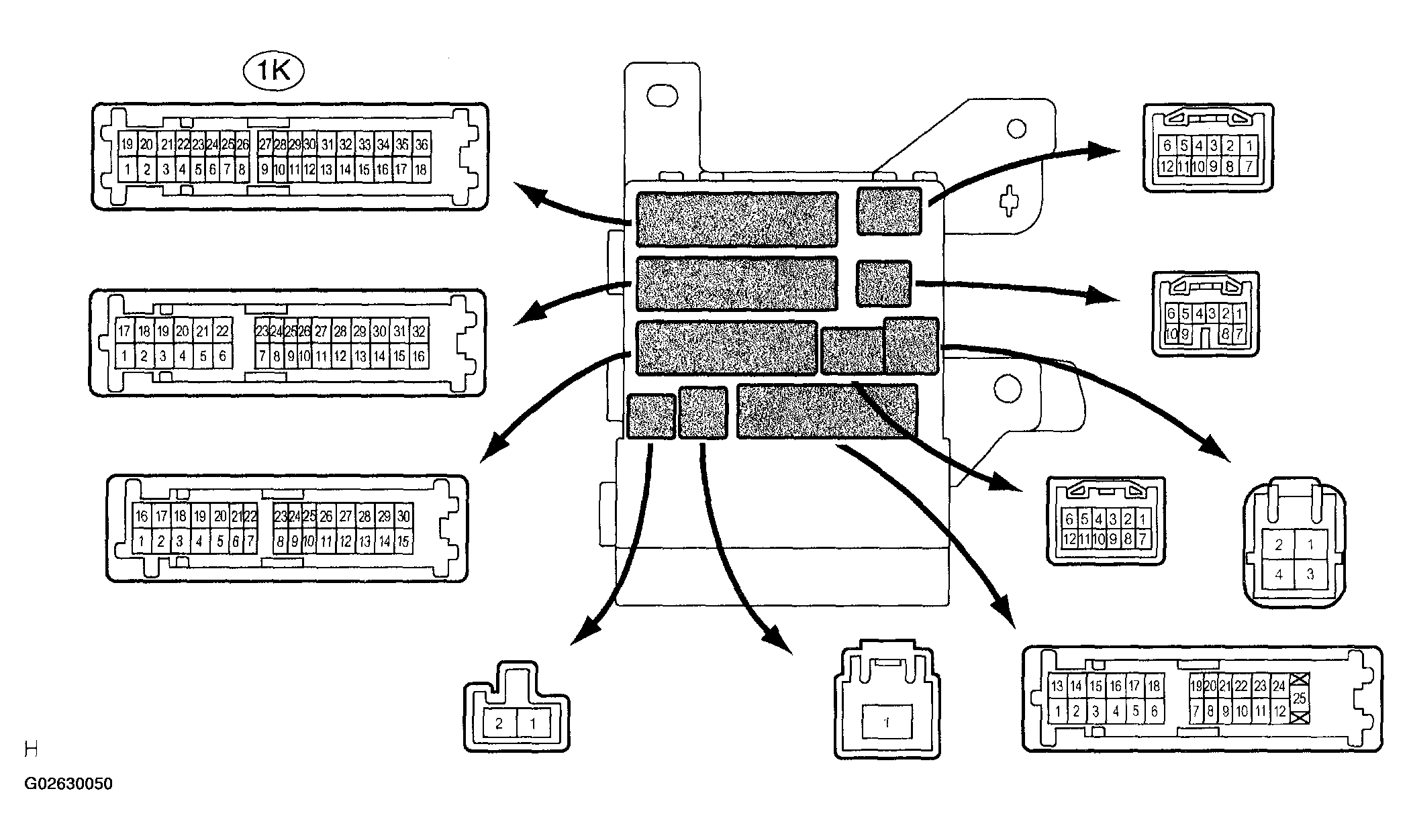

- Disconnect the 1K connector from instrument panel junction block assy.
- Check the continuity between the terminal 1K-10 of the instrument panel junction block assy connector side and body ground.
Standard:
INSTRUMENT PANEL JUNCTION BLOCK ASSY CONNECTOR SIDE AND BODY GROUNDTester connection Condition Specified condition 1K - 10 - Body ground Shaft of parking brake switch is pressed No continuity 1K - 10 - Body ground Shaft of parking brake switch is not pressed Continuity
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
