Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

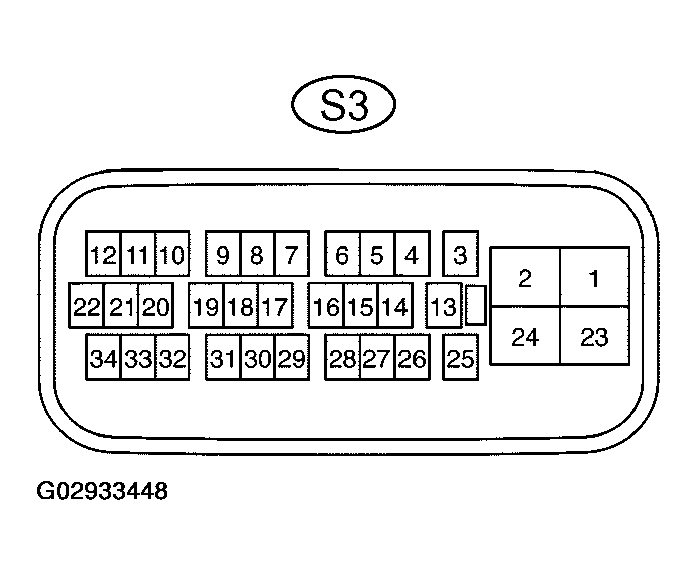

Fig 1: Identifying ECU Connector Terminals
G02933448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

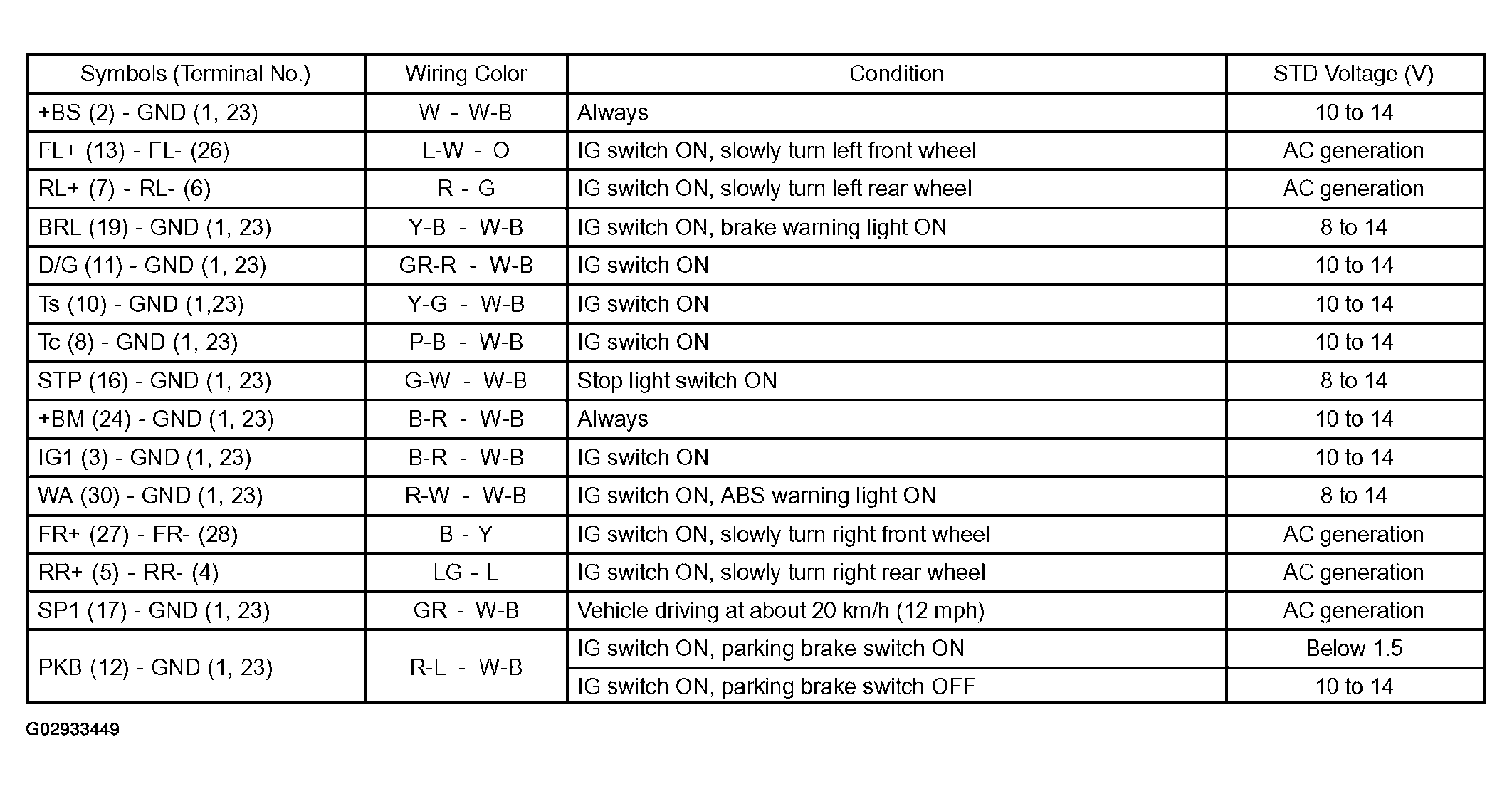

Fig 2: ECU Connector Terminals Description Chart
G02933449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
