Section 106 (Power Sliding Door): Components

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

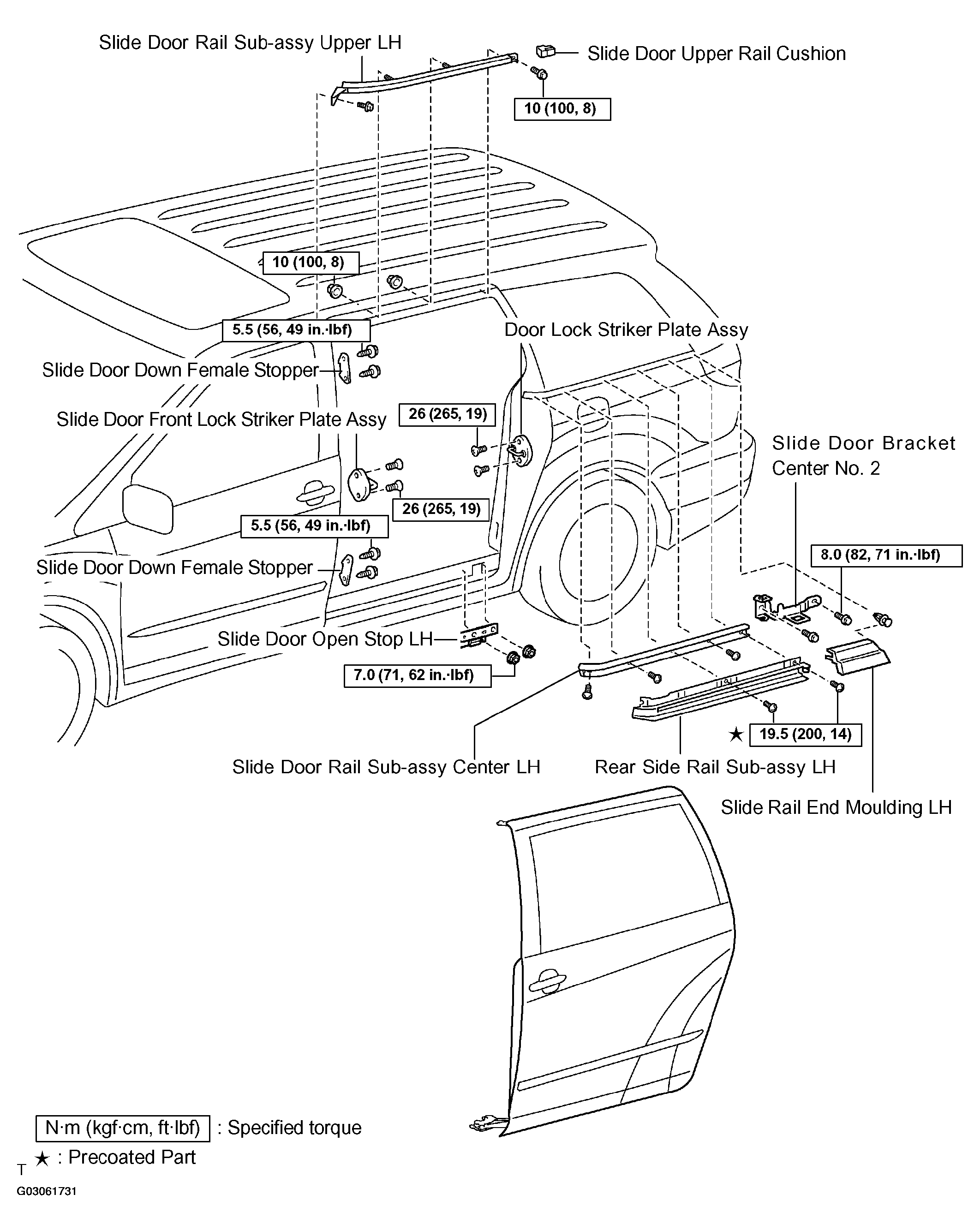

Fig 1: Identifying Power Slide Door Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

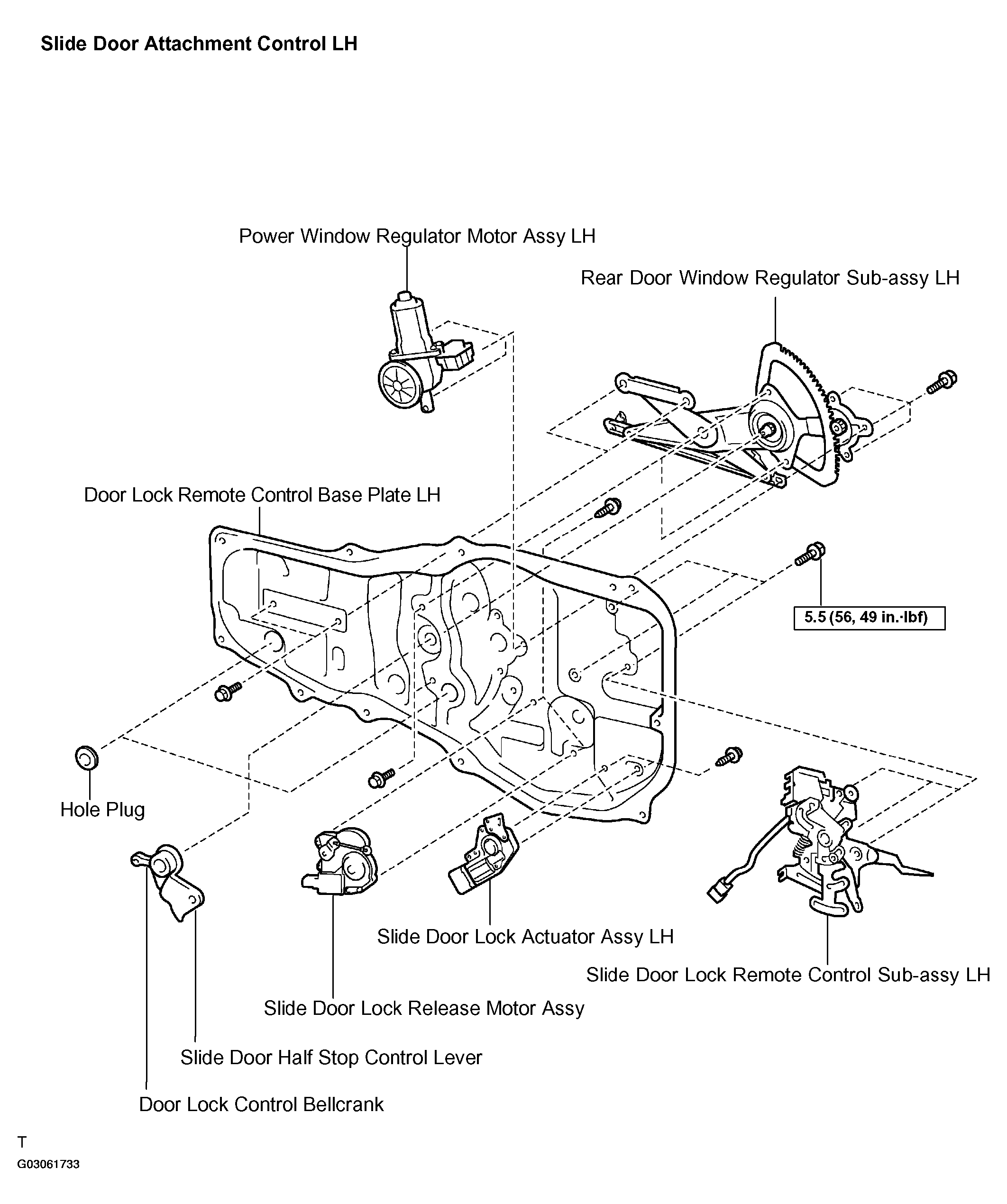

Fig 2: Identifying Power Slide Door Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

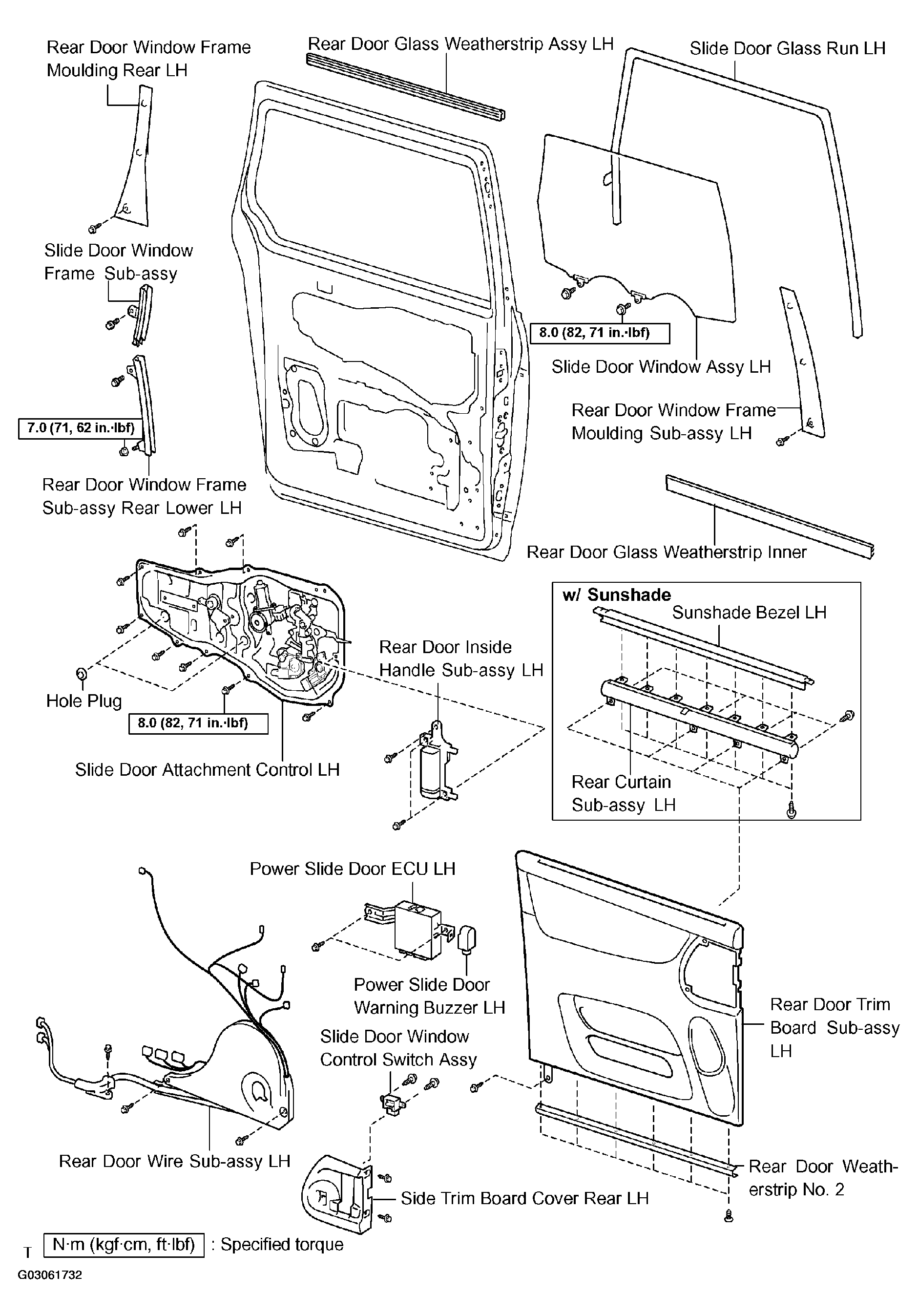

Fig 3: Identifying Power Slide Door Components (3 Of 4)

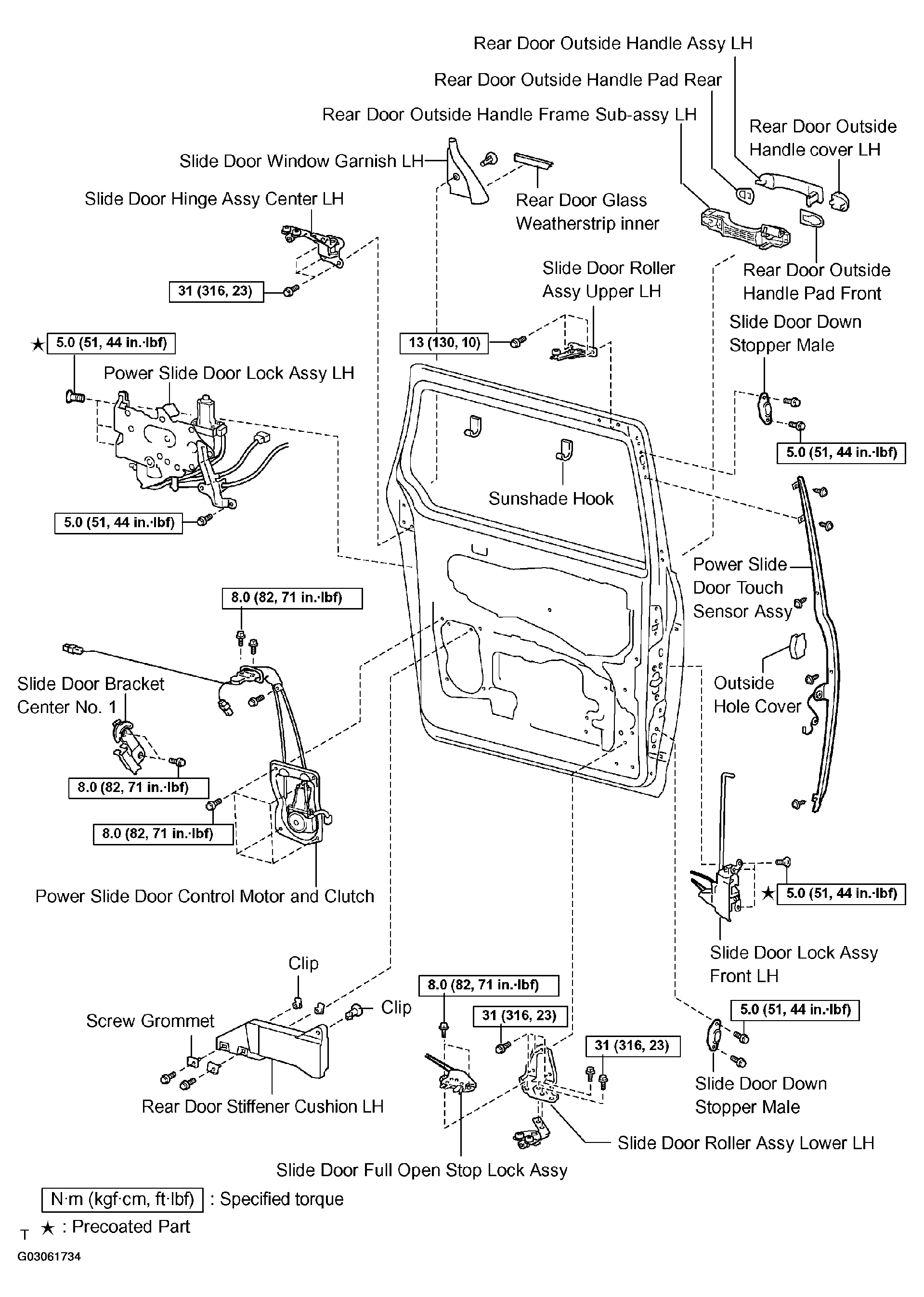

Fig 4: Identifying Power Slide Door Components (4 Of 4)
