Generator ASSY (3MZ-FE): Replacement

DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
REMOVE GENERATOR ASSY
1. Remove the 2 wire harness clamps.
2. Disconnect the generator connector.
3. Open the terminal cap.
4. Remove the nut, then disconnect the generator wire.

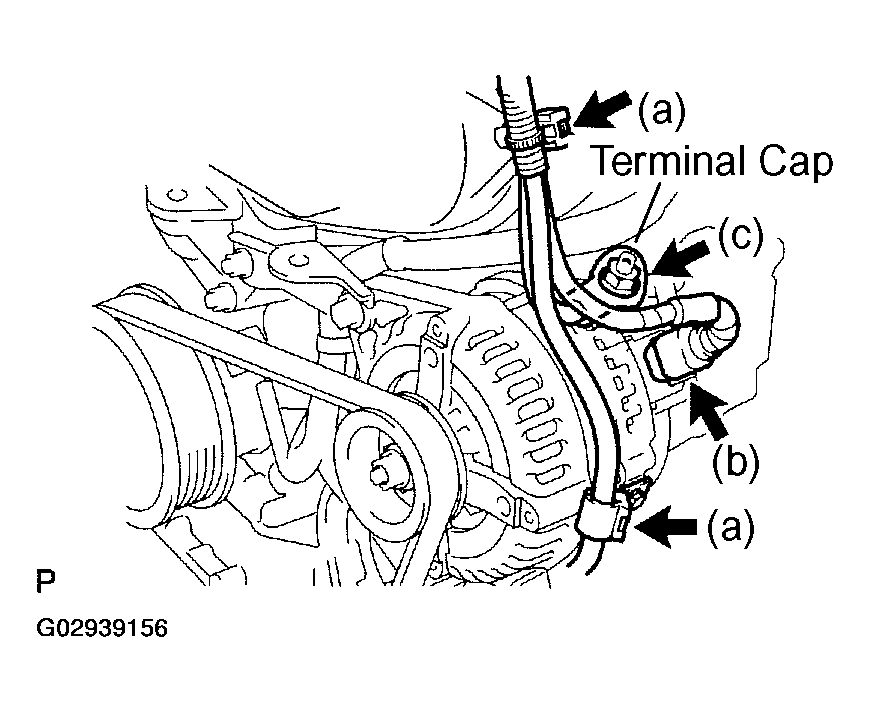

  Fig 1: Locating Wire Harness Clamps Connector And Terminals Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Loosen bolts A and B.
6. Loosen bolt C to lessen the tension of the V-ribbed belt No.1.

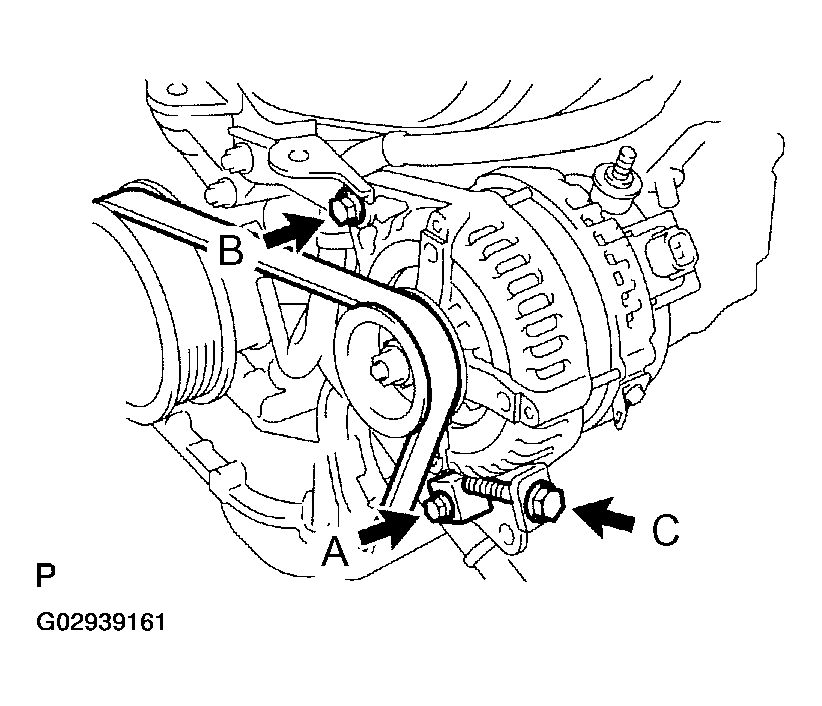

  Fig 2: Locating Bolts A, B And C
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove bolts A and B, then remove the generator.

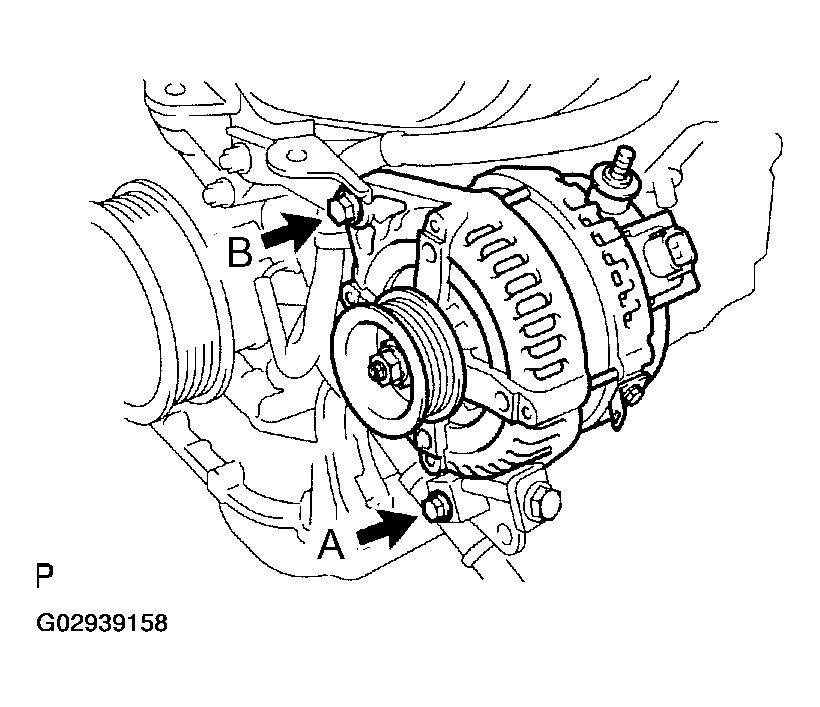

  Fig 3: Locating Bolts A And B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Remove the bolt, then remove the wiring harness clamp bracket.

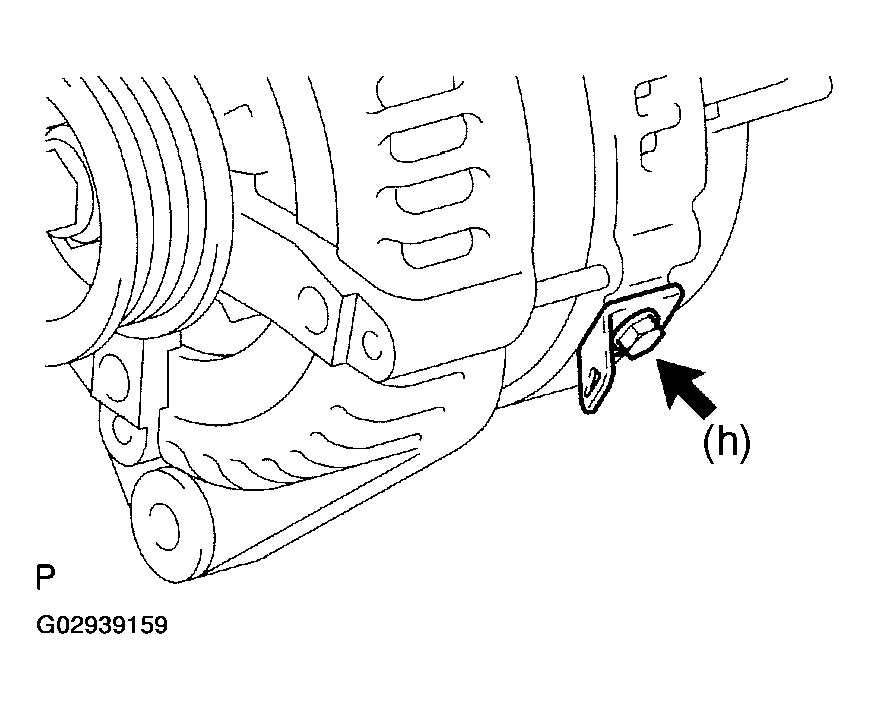

Fig 4: Locating Wiring Harness Clamp Bracket Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GENERATOR ASSY
1. Install the wiring harness clamp bracket with the bolt.
  1. Torque: 8.4 N.m (86 kgf.cm, 74 in..lbf)
2. Temporarily install the generator with bolts A and B.

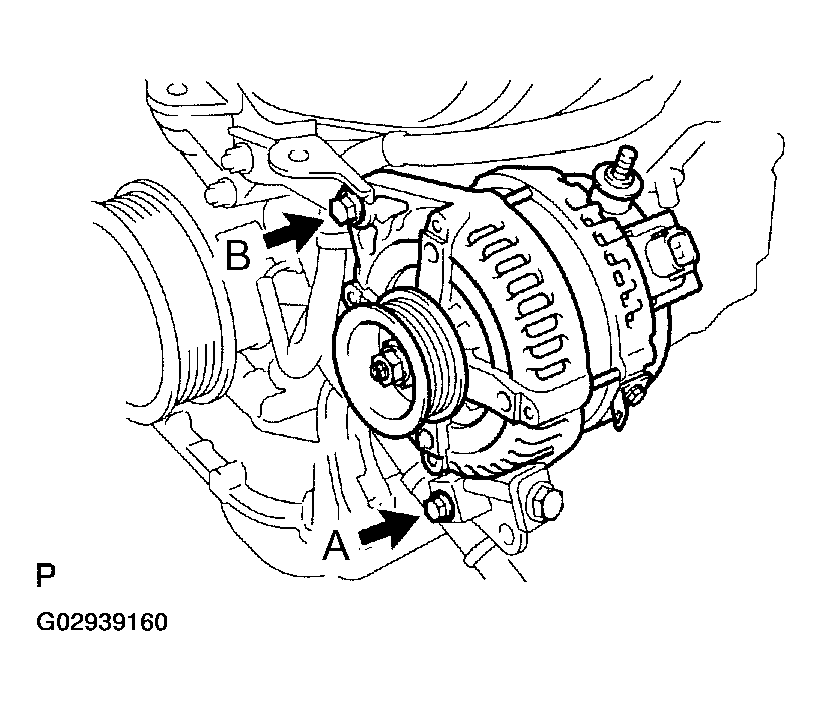

  Fig 5: Locating Bolts A And B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Adjust the V-ribbed belt No. 1 tension by tightening bolt C (see ENGINE (3MZ-FE) ).
4. Tighten bolts A and B.
  1. Torque:
  2. 18 N.m (180 kgf.cm, 13 ft.lbf) for bolt A
  3. 58 N.m (591 kgf.cm, 43 ft.lbf) for bolt B
5. Install the generator wire with the nut.
  1. Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)
6. Connect the generator connector.
7. Install the wire harness clamp.
Fig 6: Locating Bolts A, B And C
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT DRIVE BELT (See ENGINE (3MZ-FE) )
CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
SYSTEM INITIALIZATION (See CHARGING SYSTEM (3MZ-FE) )
