Problem Symptoms Table

Warning Lights and Buzzer:

Fig 1: Wiring Lights And Buzzer Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Indicator Lights:

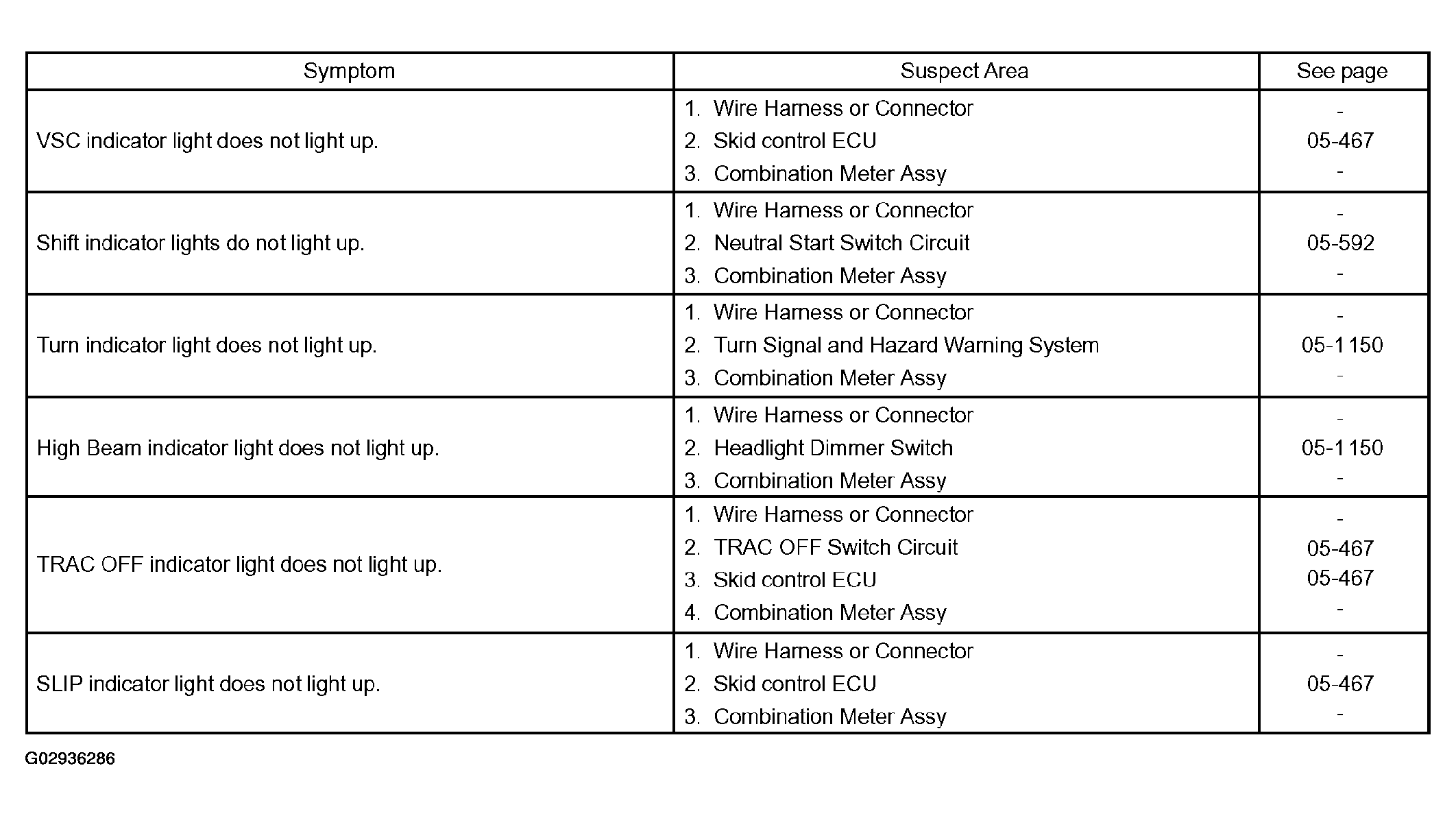

Fig 2: Indicator Lights Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Meter Gauges:

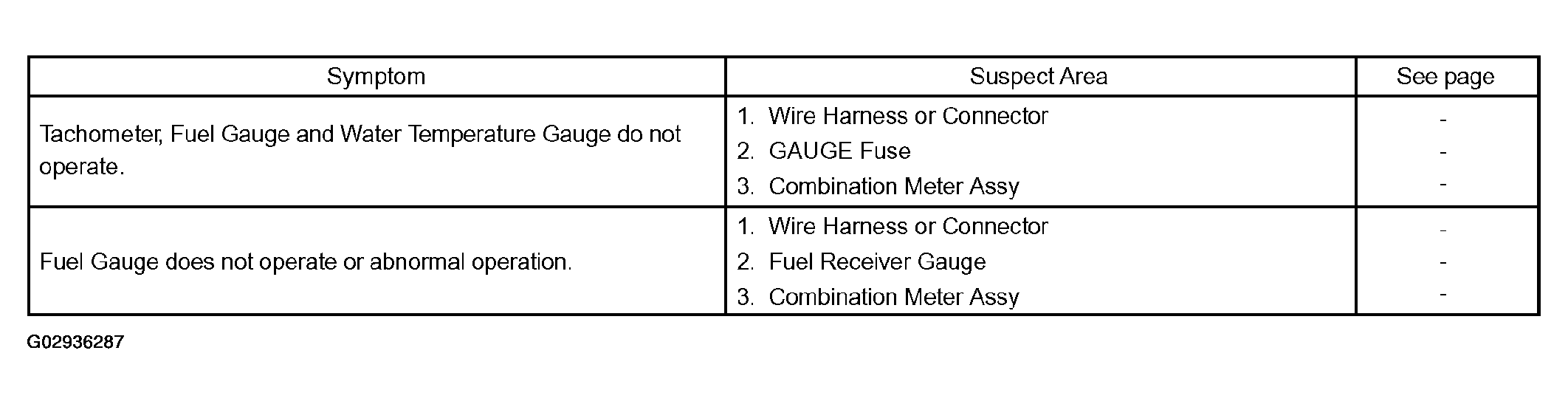

Fig 3: Meter Gauges Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
