Remote Control Power Window Regulator By Master Switch: Wiring Diagram

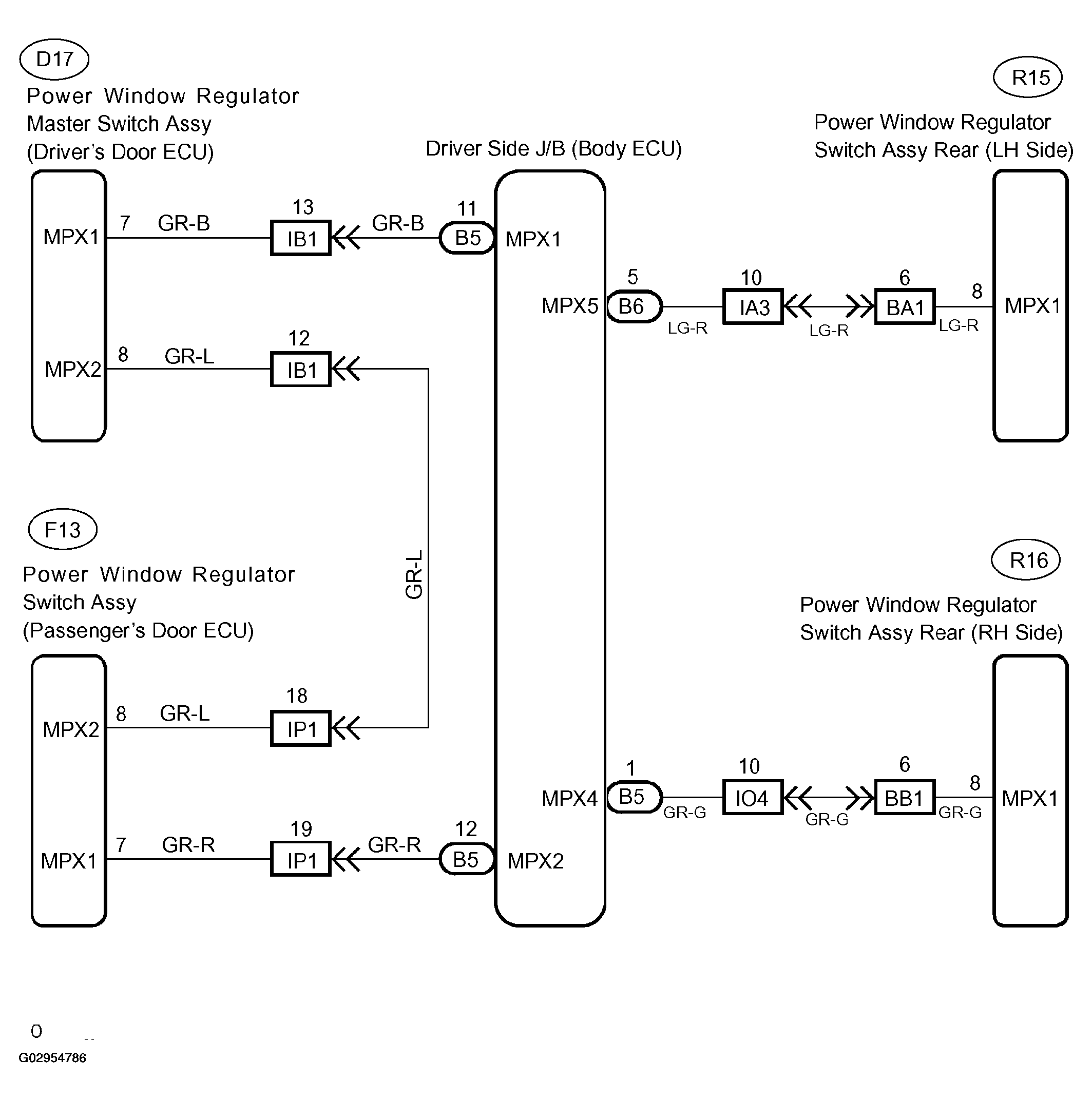

Fig 1: Wiring Diagram - Remote Control Power Window Regulator By Master Switch

G02954786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
