Power Window Regulator Motor ASSY RH Limit Switch And Pulse Sensor Circuit (Rear RH Door): Wiring Diagram

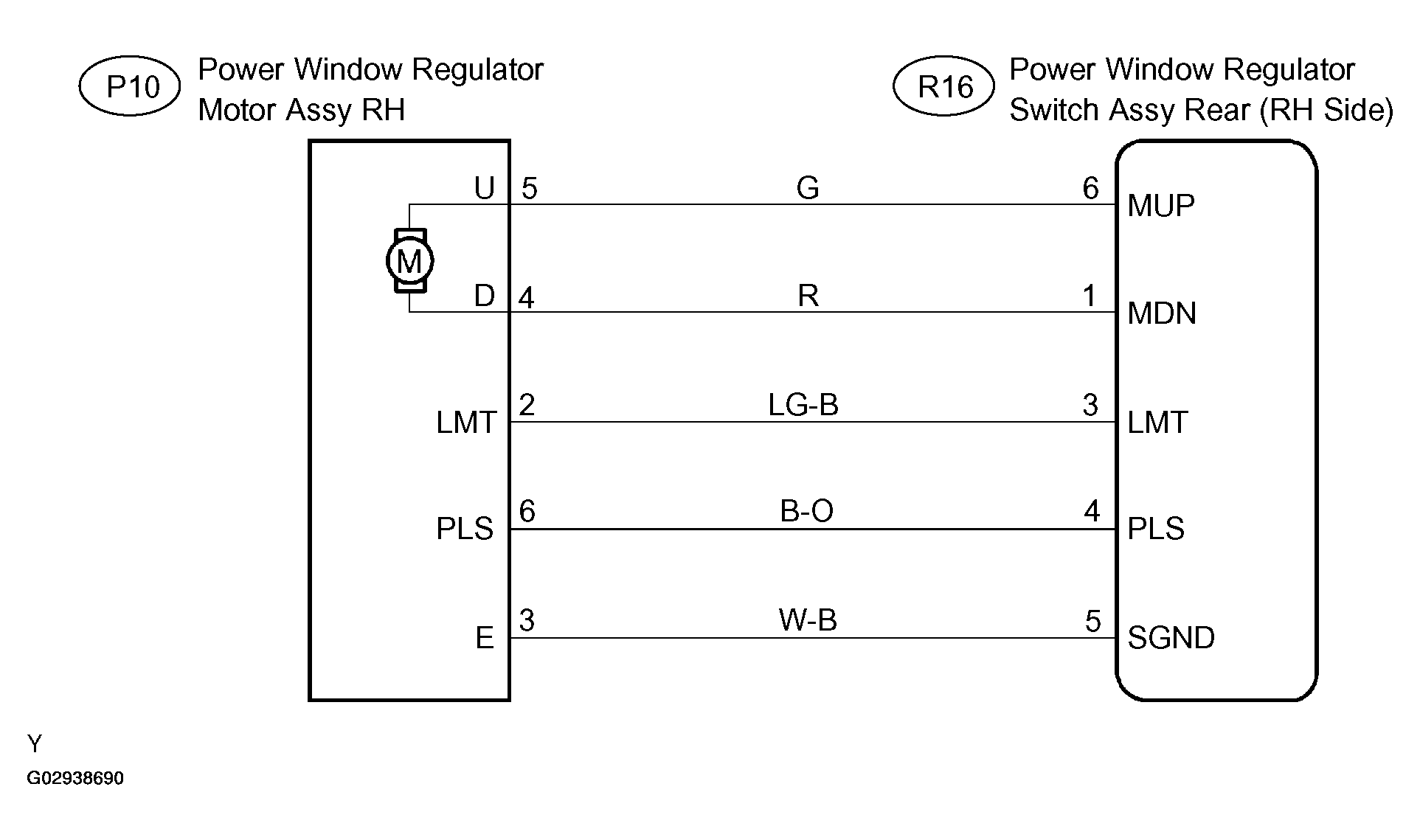

Fig 1: Wiring Diagram - Power Window Regulator Motor Assy RH Limit Switch And Pulse Sensor Circuit (Rear RH Door)
G02938690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
