Power Window Regulator Motor ASSY LH Limit Switch And Pulse Sensor Circuit (Driver's Door): Wiring Diagram

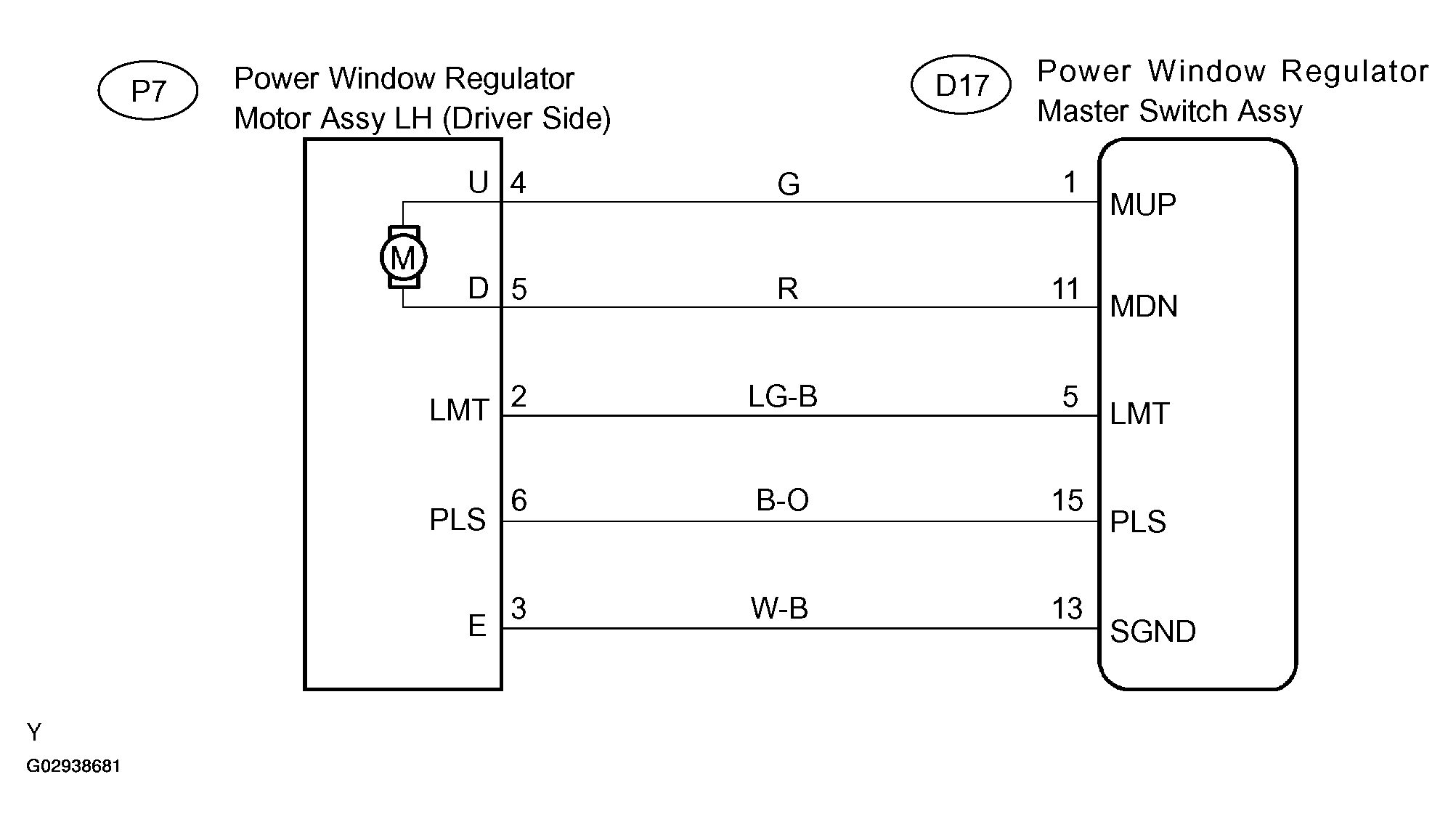

Fig 1: Wiring Diagram - Power Window Regulator Motor Assy LH Limit Switch And Pulse Sensor Circuit (Driver'S Door)
G02938681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
