Sliding Roof System: Inspection

1. Inspect the slide roof motor switch continuity.

Standard:

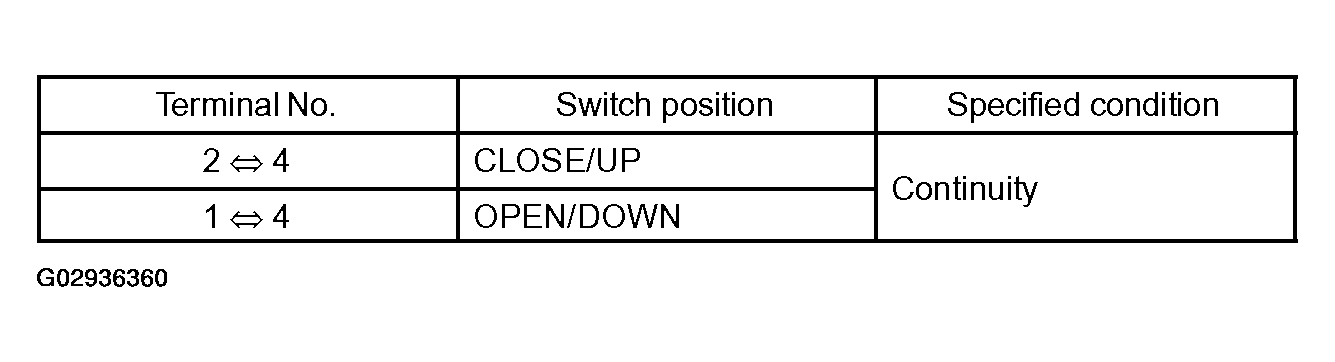

Fig 1: ECU Terminals Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the roof console box.

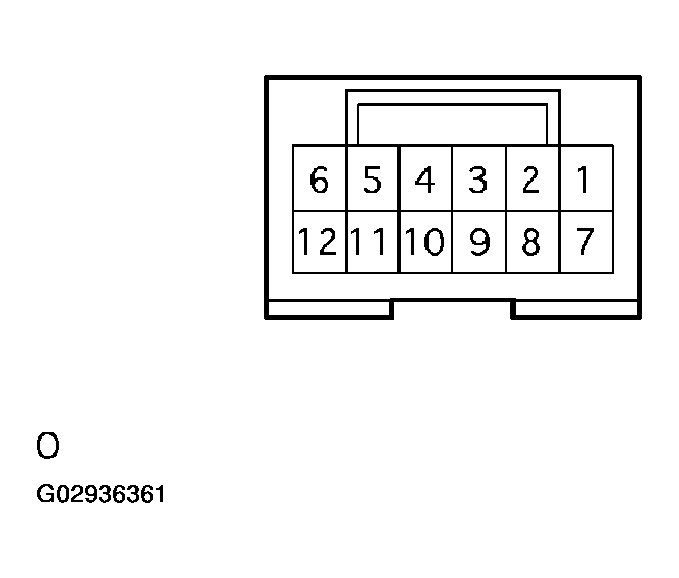

Fig 2: Identifying Roof Console Box Assy Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
