Front Seat ASSY LH: Components

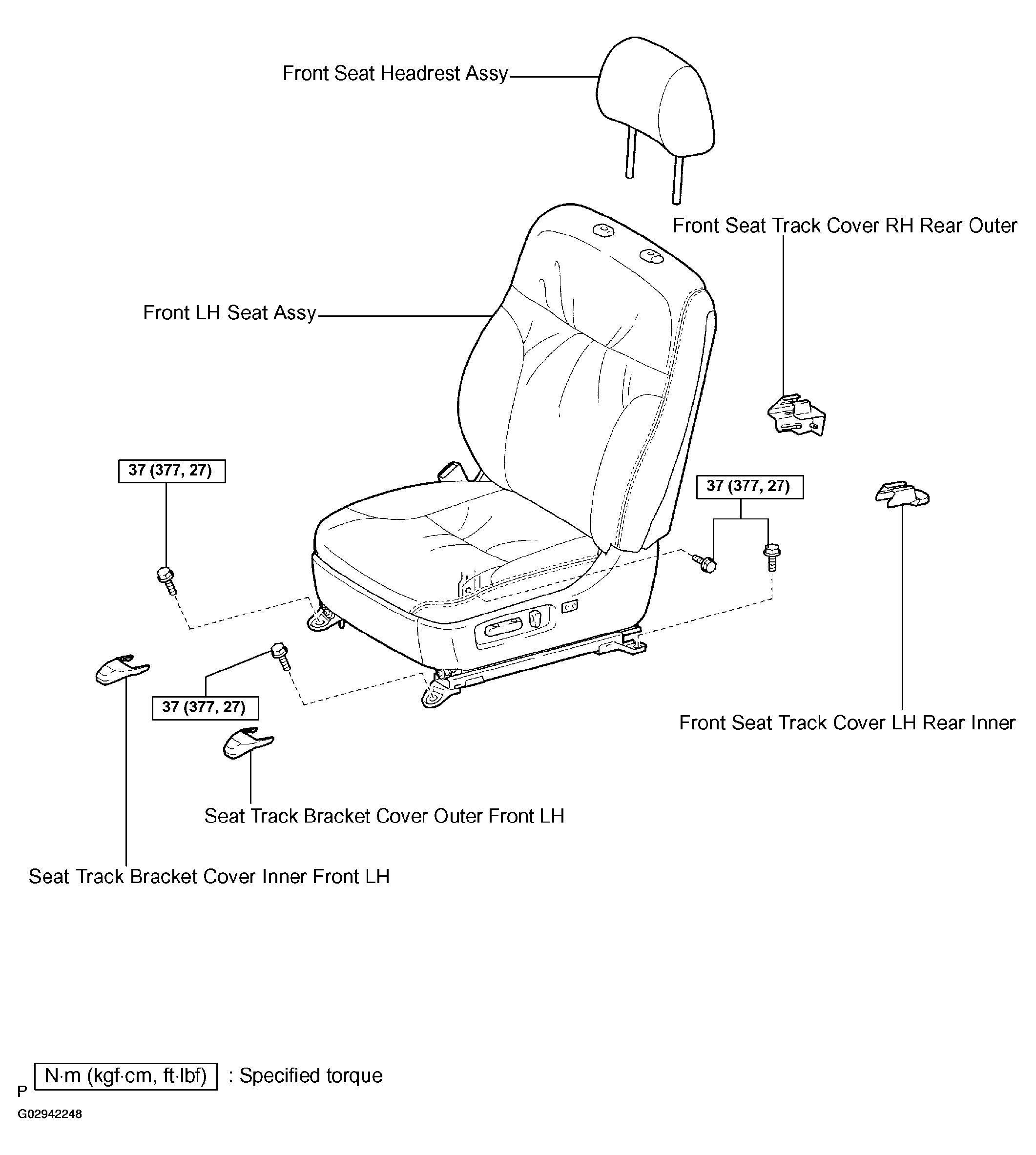

Fig 1: Identifying Front Seat Assy LH Components (1 Of 3)
G02942248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

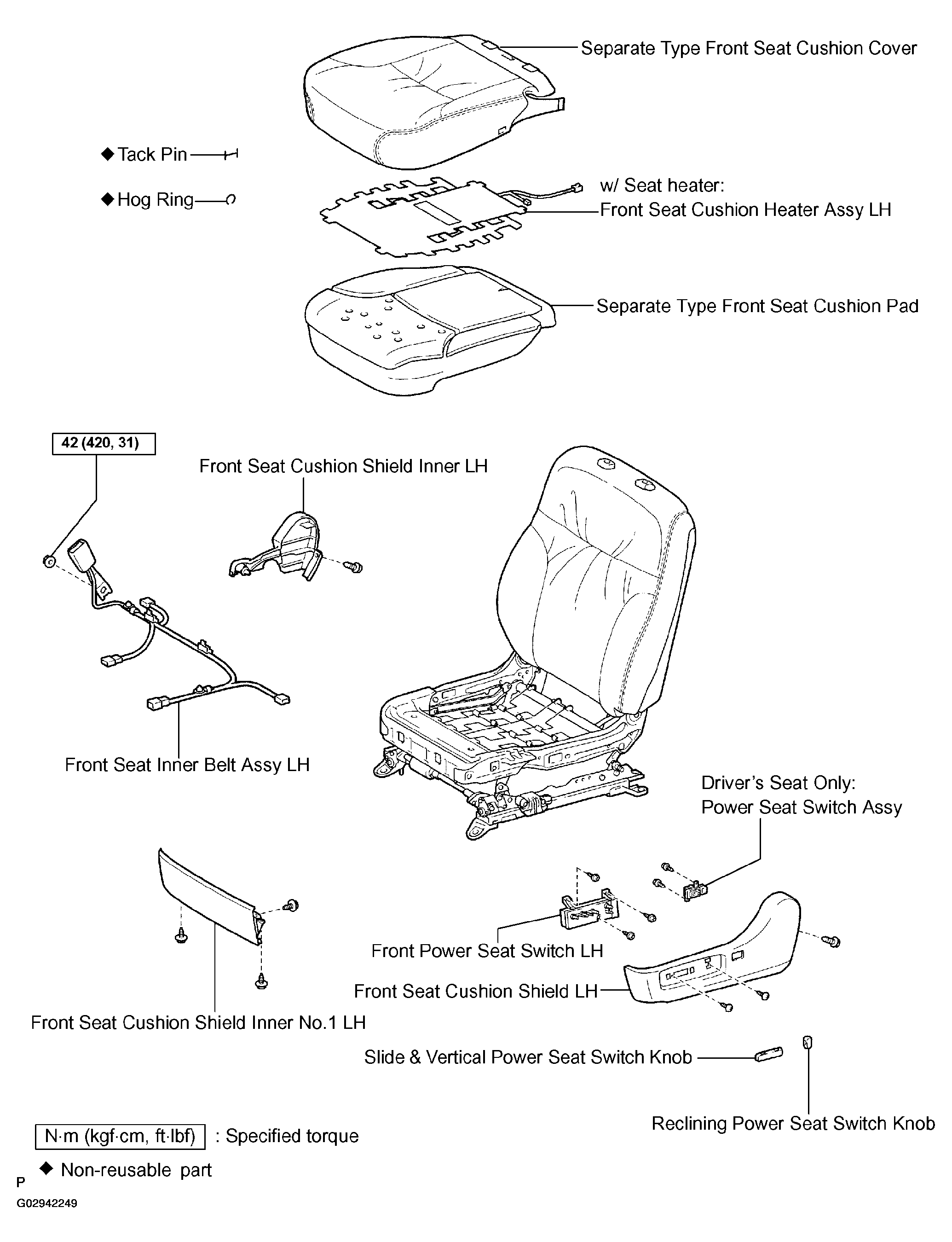

Fig 2: Identifying Front Seat Assy LH Components (2 Of 3)
G02942249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

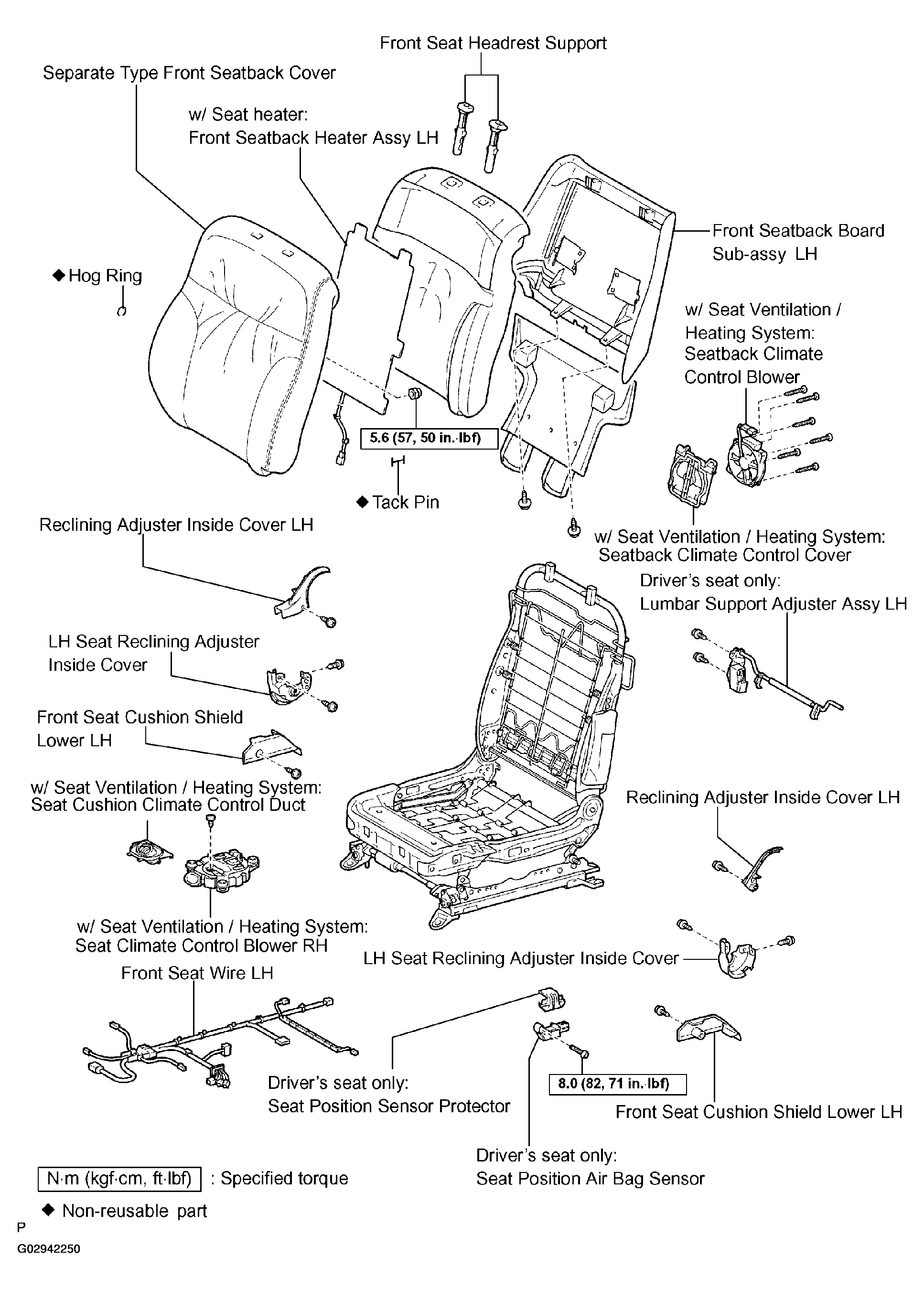

Fig 3: Identifying Front Seat Assy LH Components (3 Of 3)
G02942250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
