Ecu Power Source Circuit: Wiring Diagram

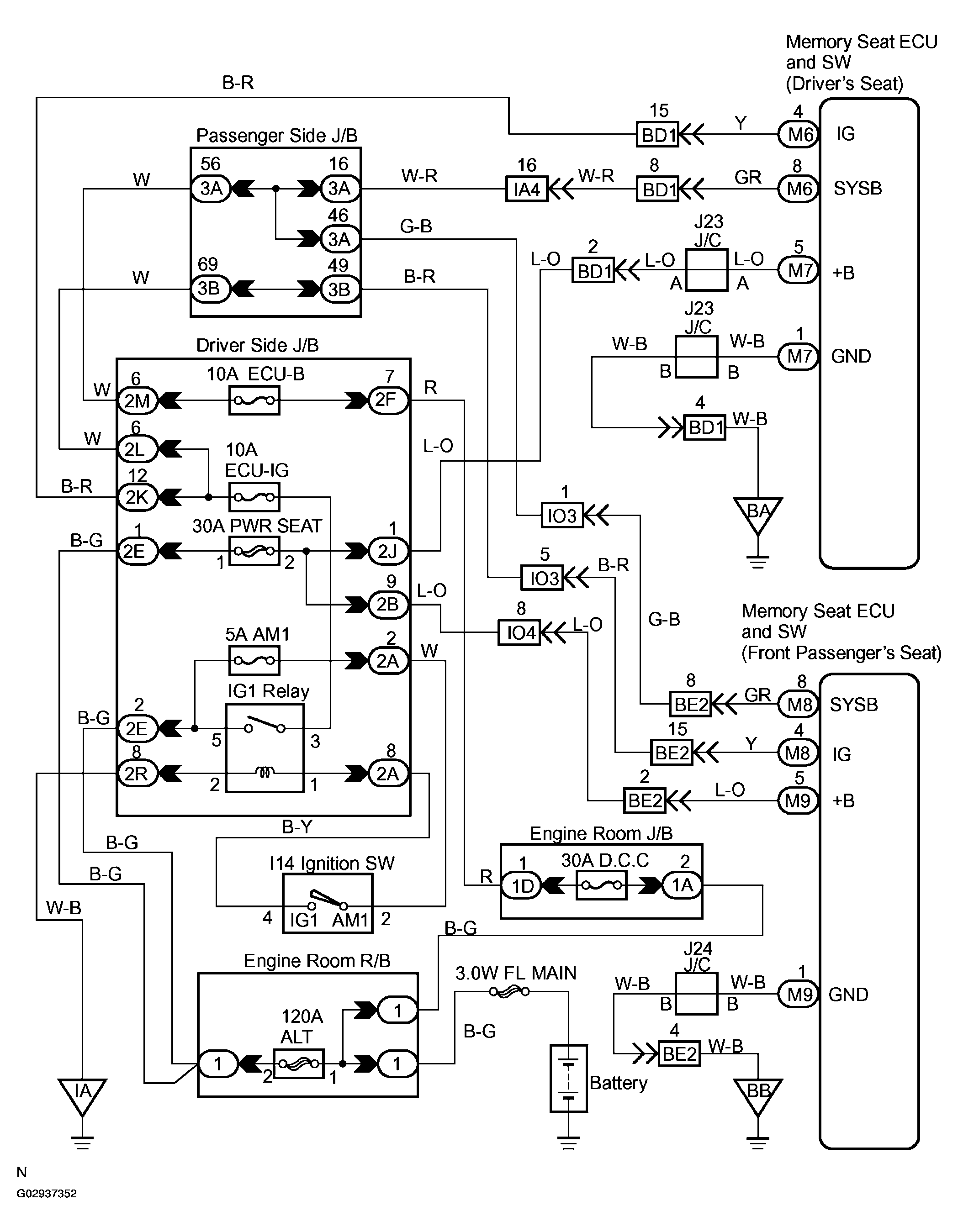

Fig 1: ECU Circuit Diagram

G02937352

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
