Inspection Procedure

1. Enter the "Menu" screen by pressing the "MENU" switch.
2. Enter the volume adjustment screen by pressing the "Volume" switch.

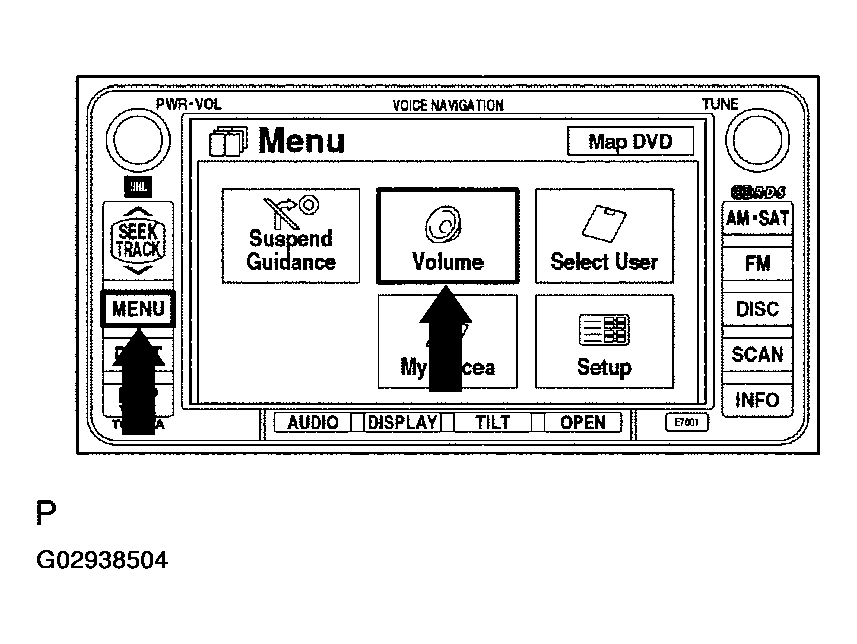

   Fig 1: Identifying Menu Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that "Off" is not selected.

OK: "Off" is not selected.

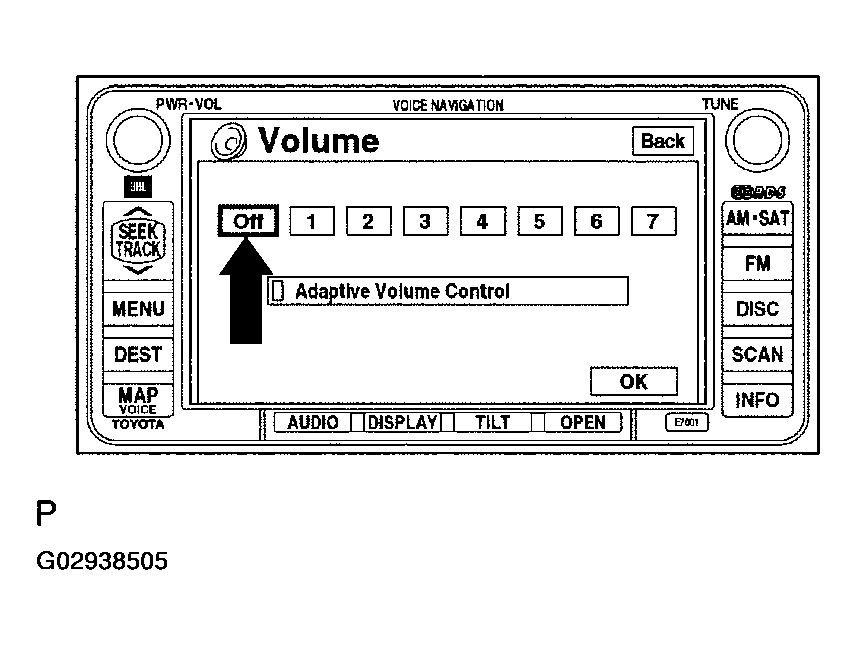

Fig 2: Identifying Volume Display

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: TURN VOICE GUIDANCE VOLUME UP TO 4 USING VOICE ADJUSTMENT SWITCHES

OK: Go To Next Step.

1. Enter the "Menu" screen by pressing the "MENU" switch.
2. Enter the "Setup" screen by pressing the "Setup" switch.

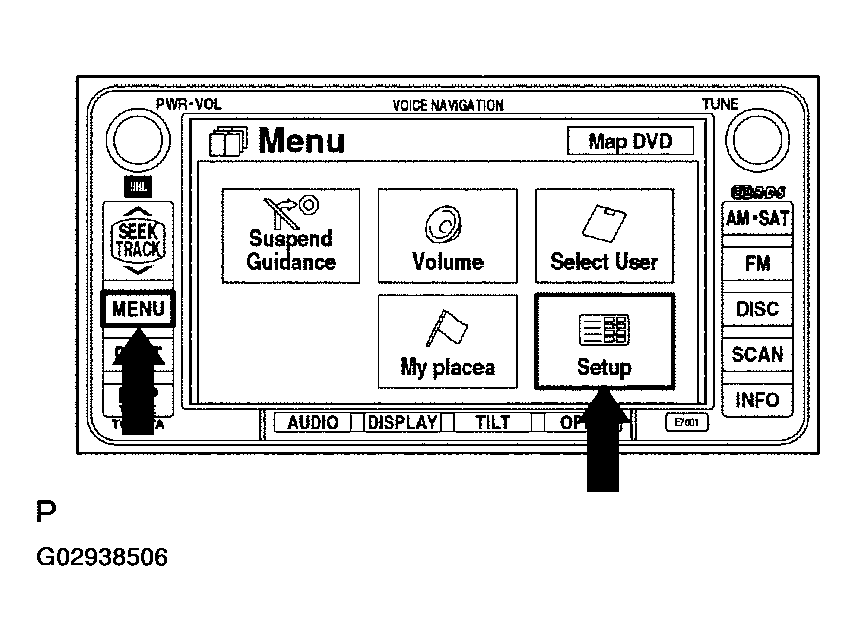

   Fig 3: Identifying Menu Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that "Auto Voice Guidance" is not OFF.

   OK: Auto voice guidance is not OFF.

4. Check that "Voice Guidance in All Modes" is not OFF.

OK: Voice guidance in all modes is not OFF.

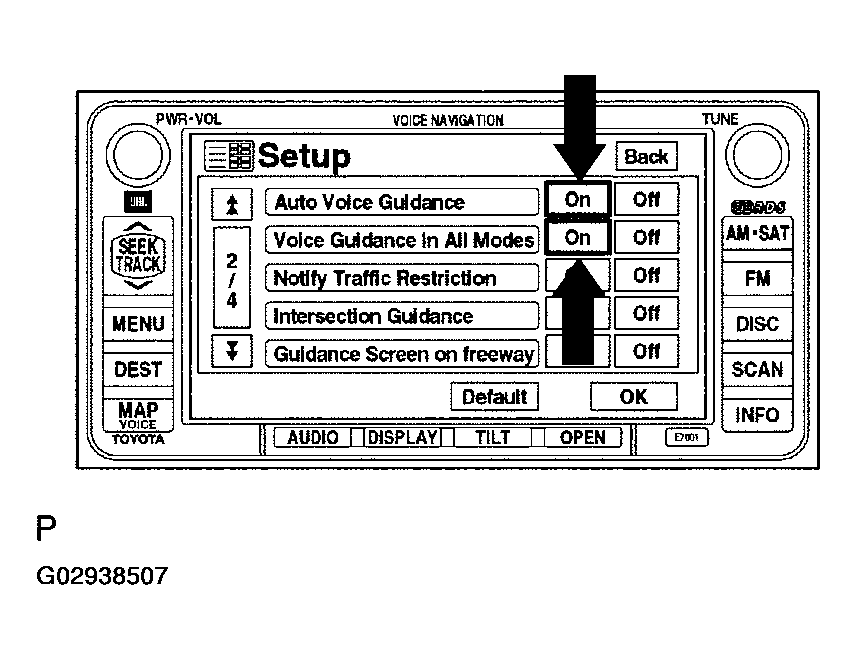

Fig 4: Identifying Step up Display

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: TURN AUTO VOICE GUIDANCE TO "ON"

OK: Go To Next Step.

1. Check that the map disc is not deformed or cracked.

OK: No deformations or cracks appear on the map disc.

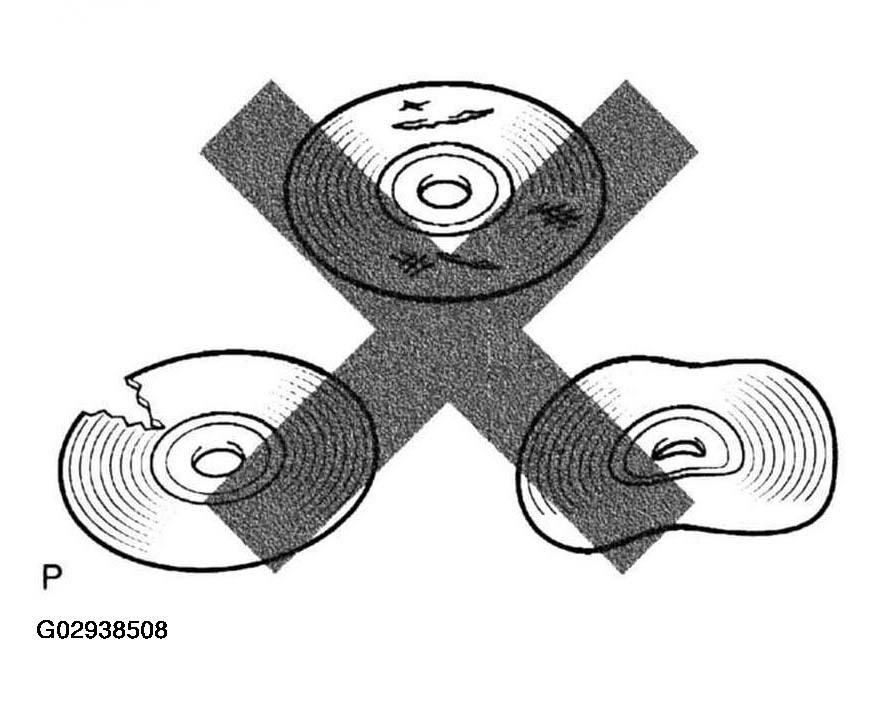

Fig 5: Identifying Damage Disc

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MAP DISC

OK: Go To Next Step.

1. Check if audio sound can be heard from the driver's side speaker.

OK: Audio sound can be heard.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

OK: REPLACE RADIO AND NAVIGATION ASSY (SEE  RADIO RECEIVER ASSY  )
