System Diagram

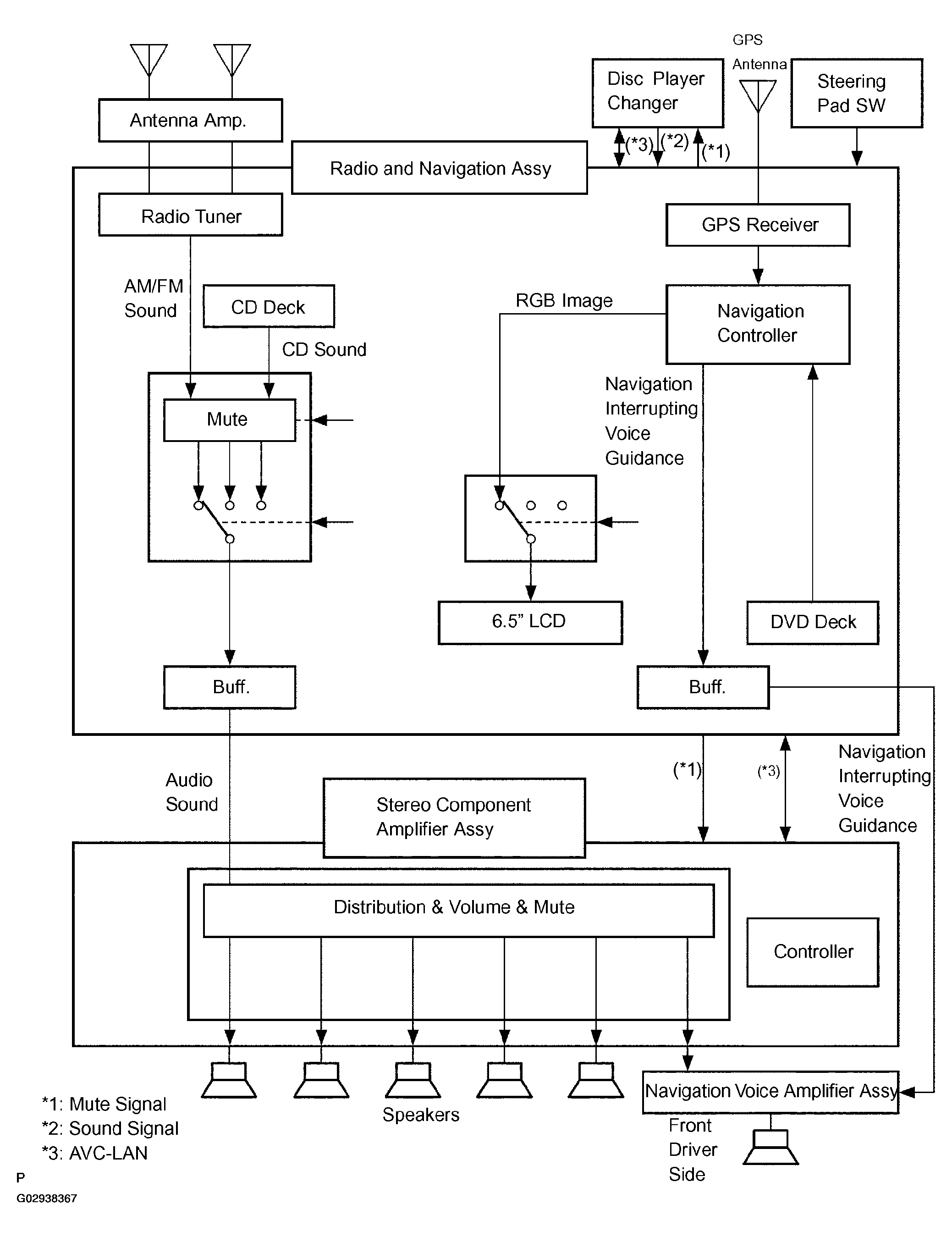

Fig 1: System Diagram - Lexus Navigation System
G02938367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
