Amplifier ASSY: Replacement

HINT:

See LOCATION

1. REMOVE FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
2. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (See  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (See  REPLACEMENT  )
4. REMOVE STEREO COMPONENT AMPLIFIER ASSY (EXCEPT MARK LEVINSON AMPLIFIER TYPE) (See  STEREO COMPONENT AMPLIFIER ASSY   )
5. REMOVE AMPLIFIER ASSY
   1. Disconnect the connector.
   2. Remove the 2 nuts and the amplifier assy.

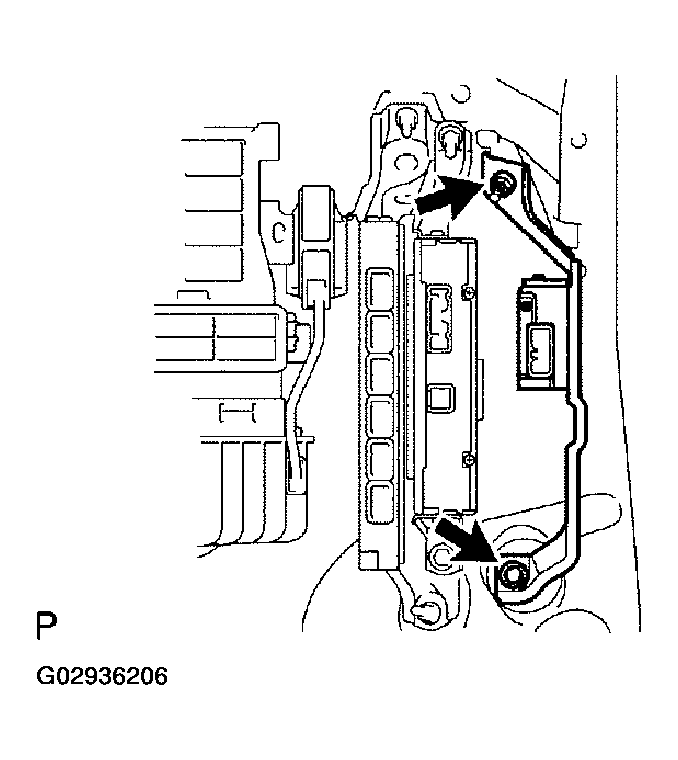

   Fig 1: Removing Amplifier Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
