Circuit Description

The ABS motor relay supplies power to the ABS pump motor. While the ABS is activated, the ECU switches the ABS motor relay ON and operates the ABS pump motor.

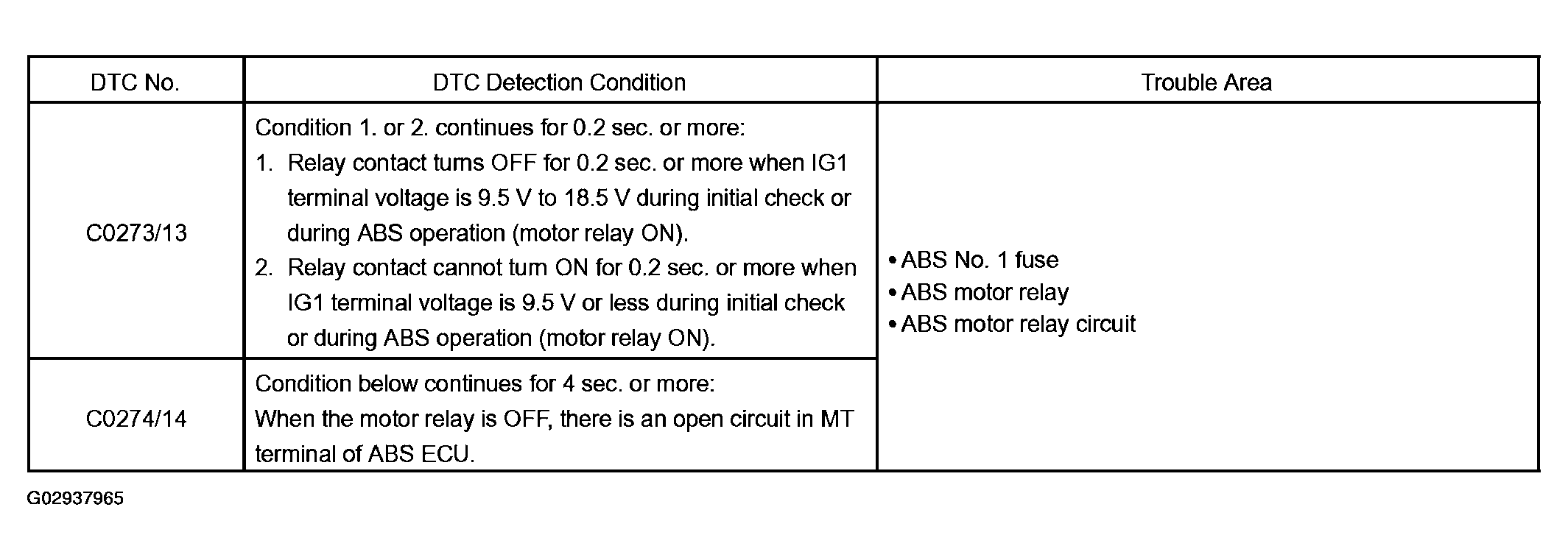

Fig 1: DTC Detection Condition Table (C0273/13, 0274/14)
G02937965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
