System Check Mode (DTC Clear/Recheck)

HINT:

The illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (see  DIAGNOSTIC START-UP/FINISH   ).
2. Clear DTC

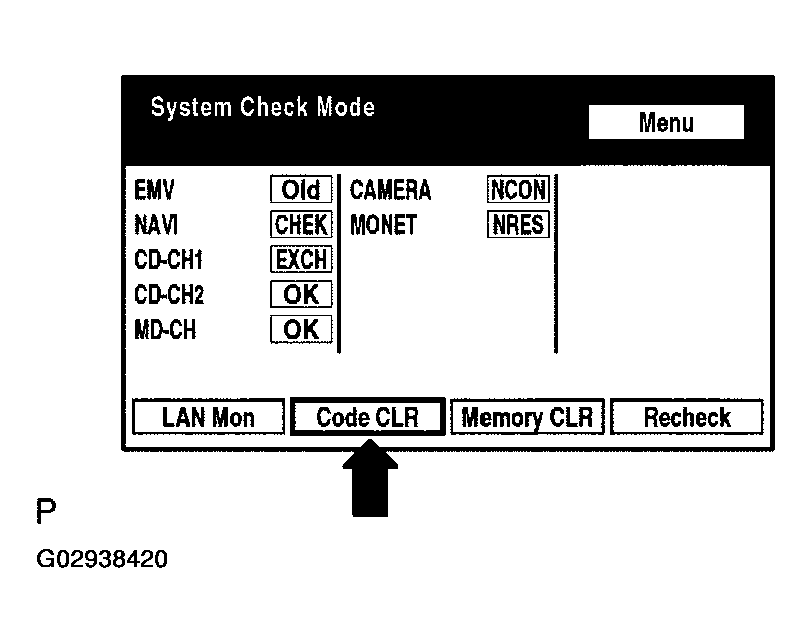

   1. Press the "Code CLR" switch for 3 seconds.
      Fig 1: Service Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check result is cleared.
3. Recheck

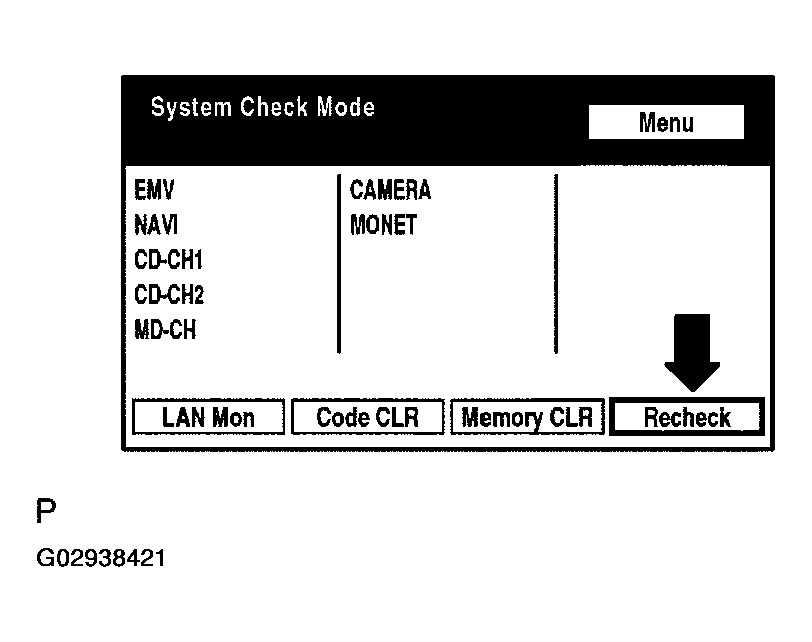

   1. Press the "Recheck" switch.
      Fig 2: Service Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

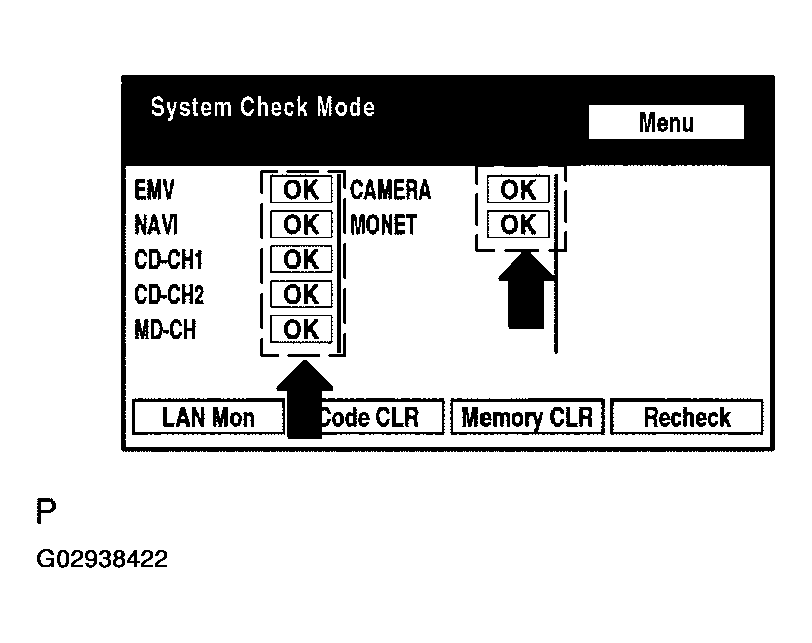

   2. Confirm that all diagnostic codes are "OK" when the check results are displayed.

      If a code other than "OK" is displayed, troubleshoot again.

      Fig 3: Service Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

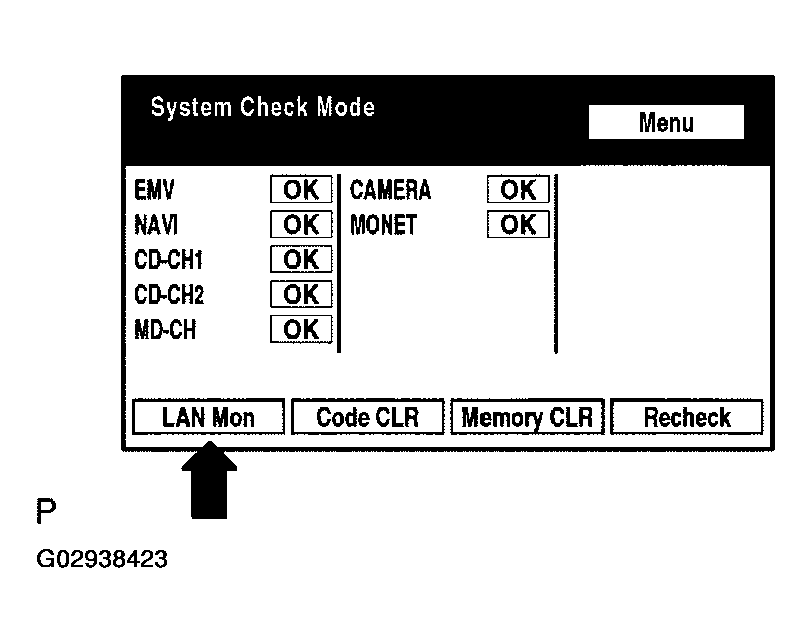

   3. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
      Fig 4: Service Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

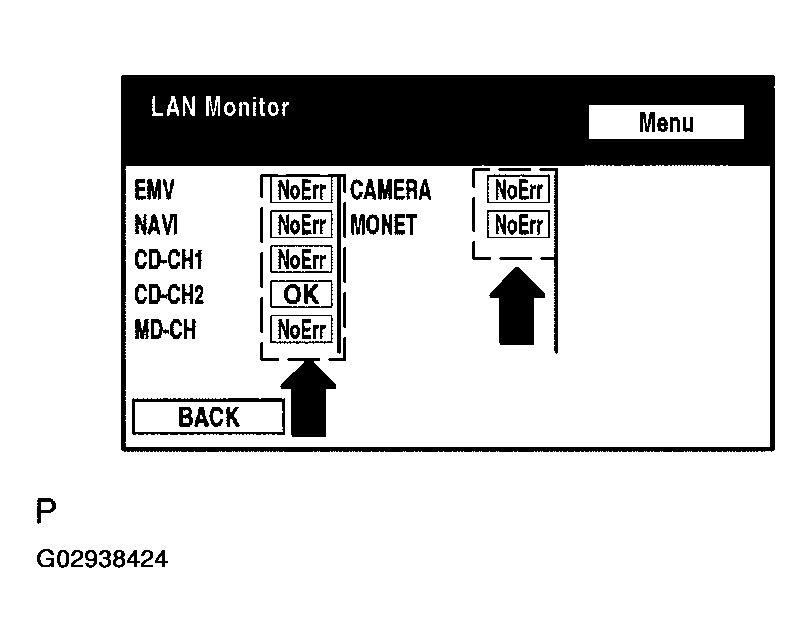

   4. Confirm that all diagnostic codes are "No Err".

   If a code other than "No Err" is displayed, troubleshoot again.

   Fig 5: Service Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
