Navigation Check Mode (NAVI Color Bar Check)

HINT:

• This mode checks the color display on the radio and navigation assy.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (see  DIAGNOSTIC START-UP/FINISH   )

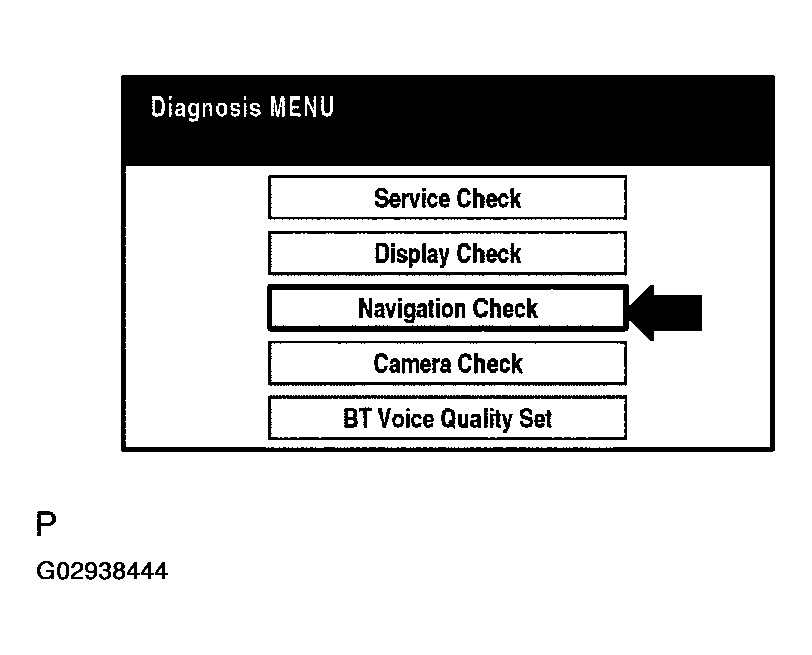

2. Select "Navigation Check" from the "Diagnosis MENU" screen
   Fig 1: Service Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

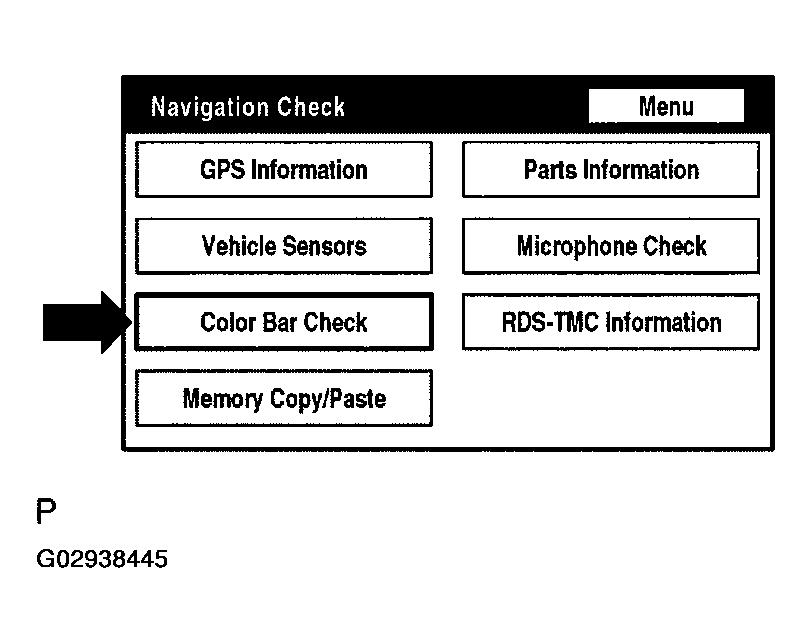

3. Select "Color Bar Check" from the "Navigation Check" screen.
   Fig 2: Service Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

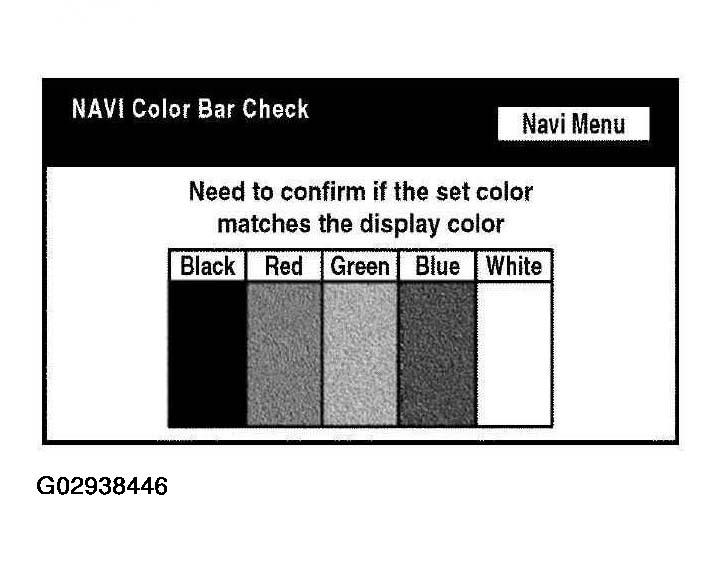

4. Check each color of the color bar when the "NAVI Color Bar Check" screen is displayed.

HINT:

Colors will not be displayed full-screen as in "Display Check Mode".

Fig 3: Service Check Screen

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
