Display Check Mode (Panel Switch Check)

HINT:

• This mode checks the panel switch operation response on the radio and navigation assy.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (see  DIAGNOSTIC START-UP/FINISH   )
2. Select "Display Check" from the "Diagnosis MENU" screen

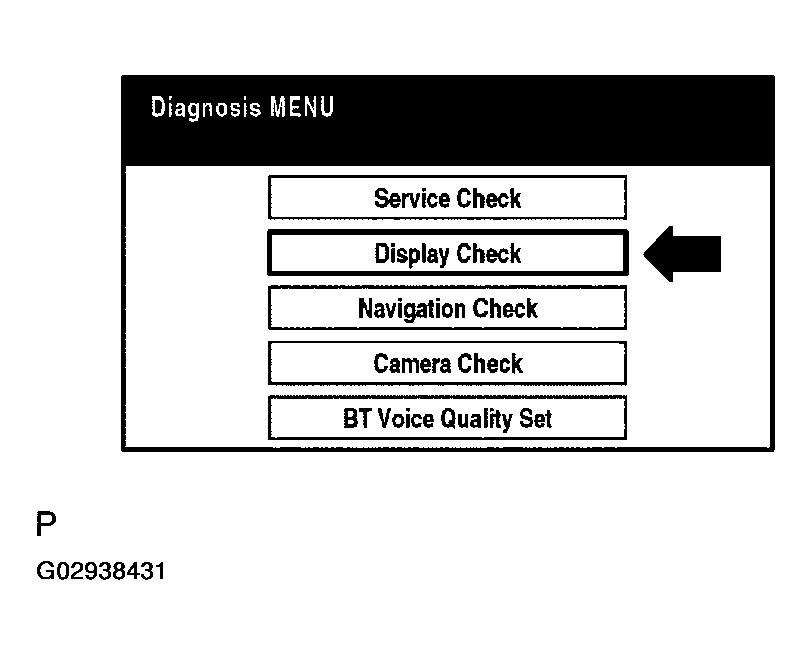

   Fig 1: Service Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "Panel Switch Check" from the "Display Check" screen.

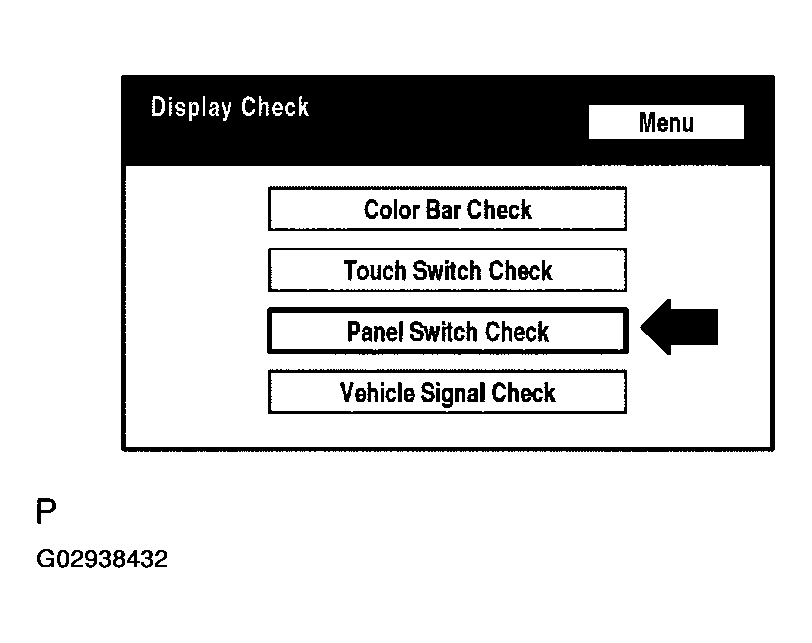

   Fig 2: Service Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Operate each switch and check that the switch name and condition are correctly displayed.

HINT:

• Pressing the "DISPLAY" switch for 3 seconds will exit the diagnostic mode.
• "OPEN" and "TILT" switches are not displayed. To test these switches, they must be operated.

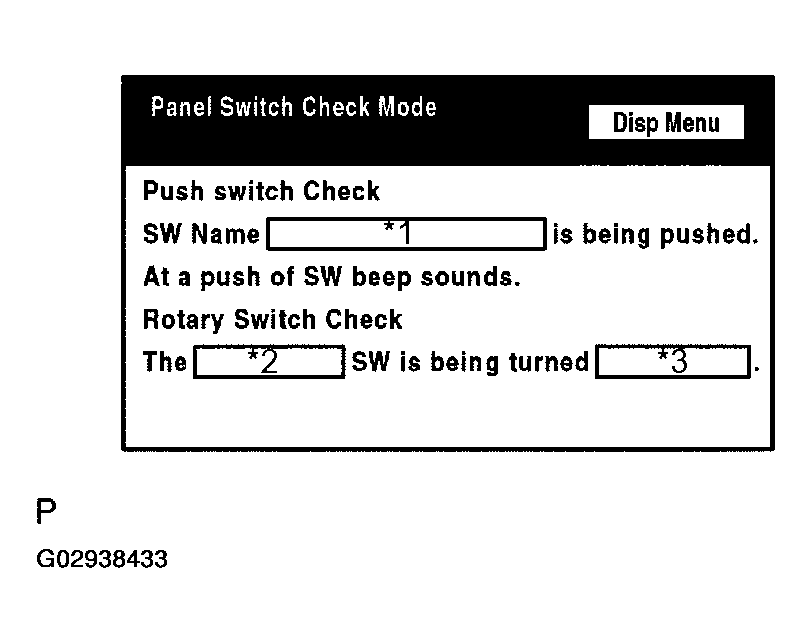

Fig 3: Service Check Screen

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

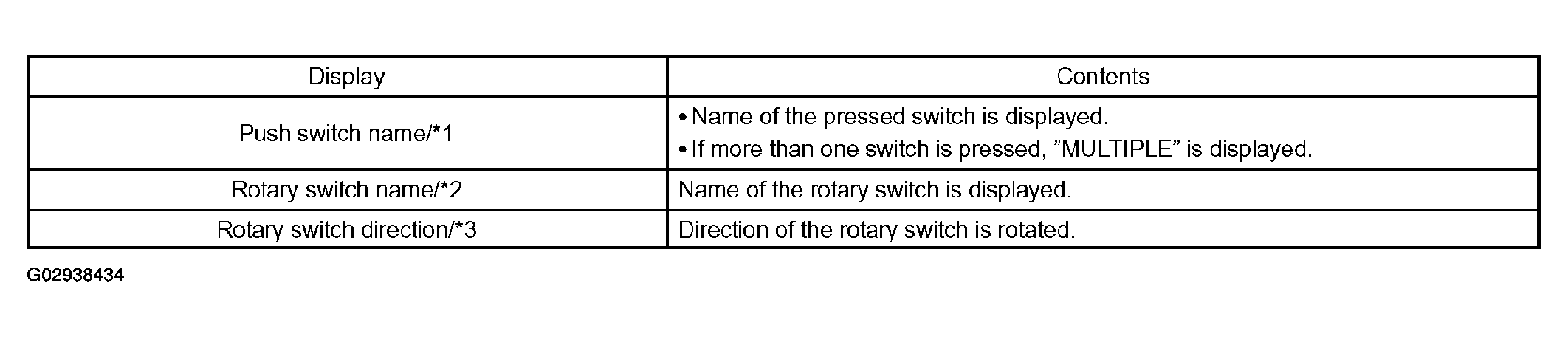

Fig 4: Switch Display Contents Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
