Display Check Mode (Color Bar Check)

HINT:

• This mode checks the color display on the radio and navigation assy.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (see  DIAGNOSTIC START-UP/FINISH   ).

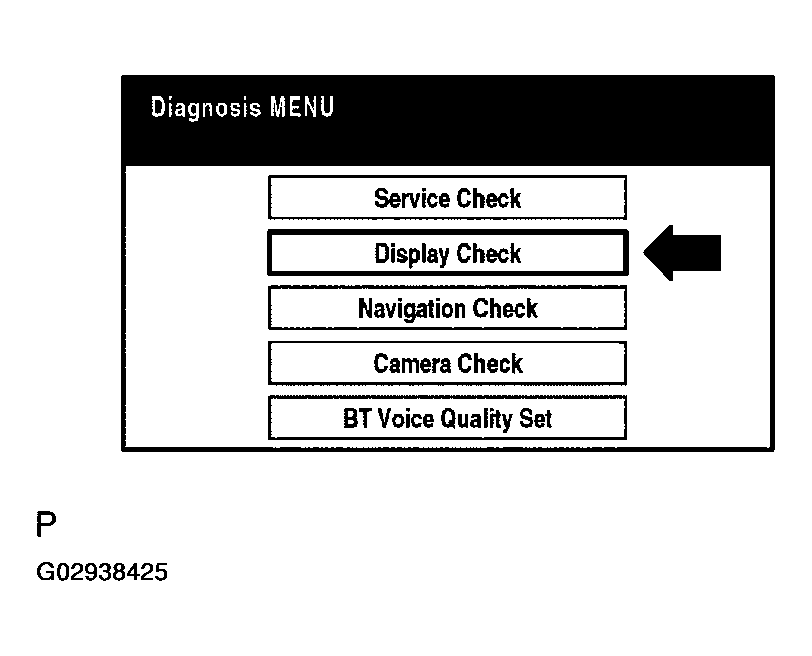

2. Select "Display Check" from the "Diagnosis MENU" screen.
   Fig 1: Service Check Screen (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

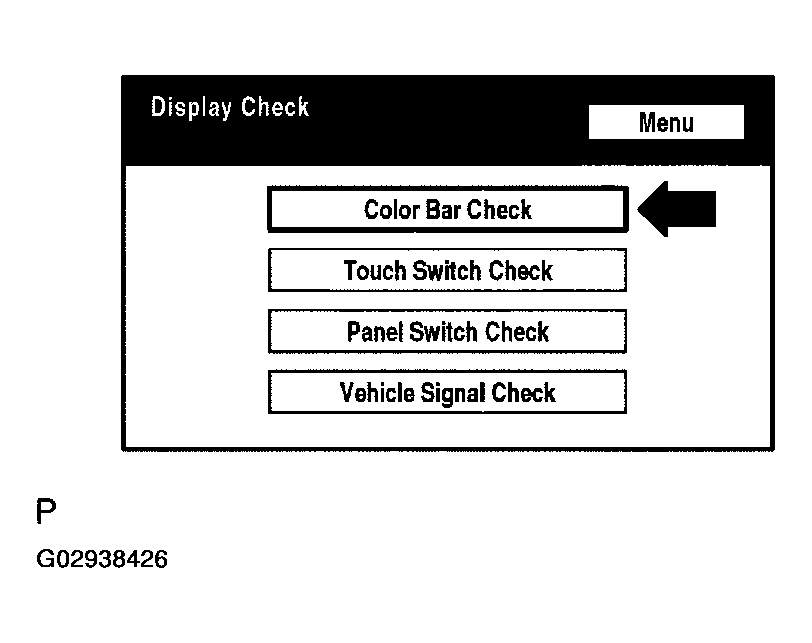

3. Select "Color Bar Check" from the "Display Check" screen.
   Fig 2: Service Check Screen (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

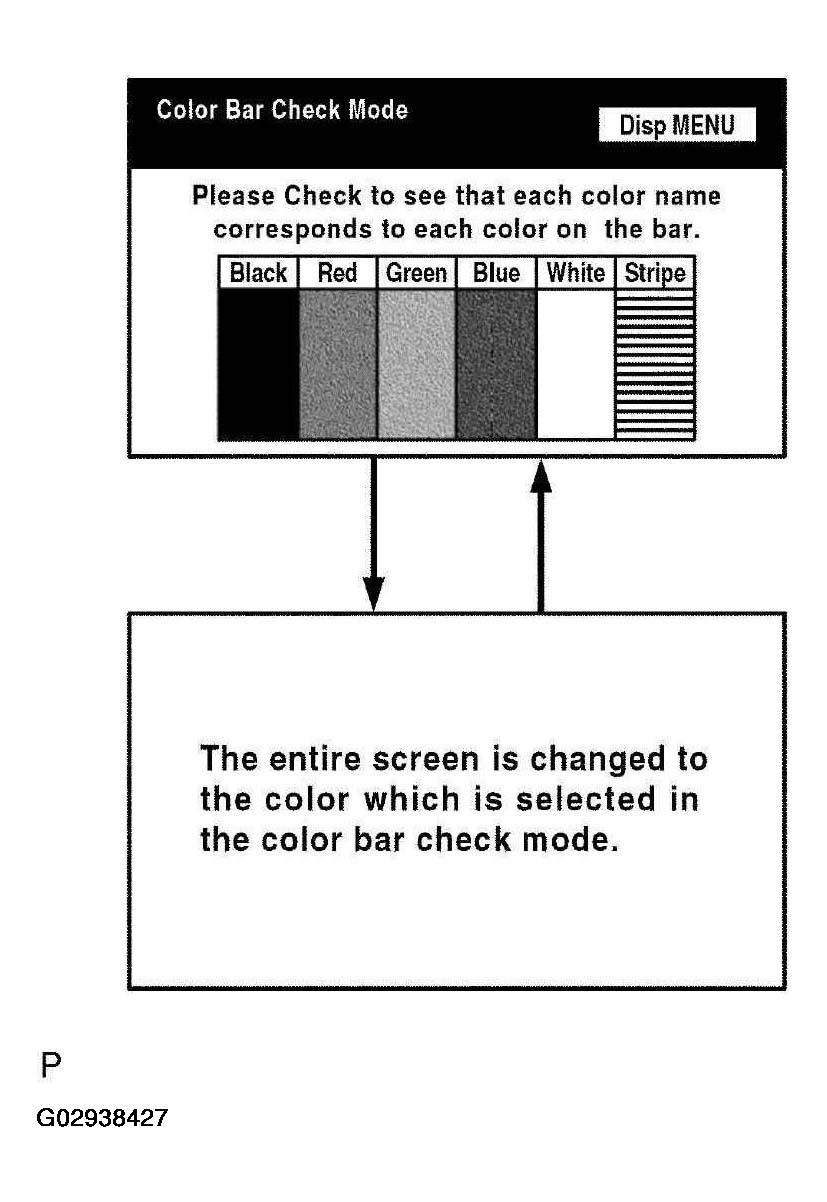

4. Select a color bar from the "Color Bar Check Mode" screen.

   HINT:

   • The entire screen turns to the color or stripe selected.
   • Touching the display will return to the "Color Bar Check" screen.
   Fig 3: Service Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
