Adjust FOGLIGHT Aim

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

A-bolt: Vertical direction

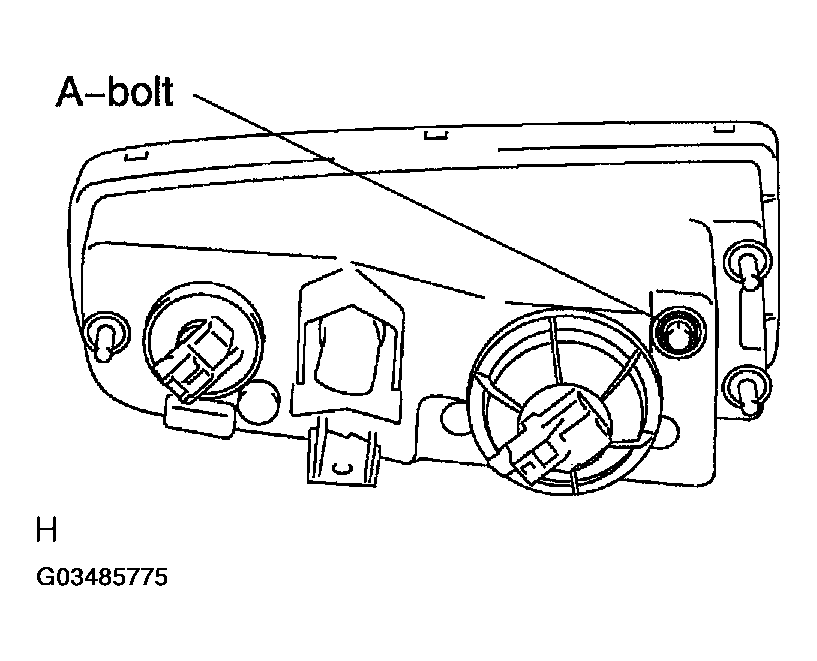

Fig 1: Identifying A - Bolt
G03485775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
