Head Light: Overhaul

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE FRONT FENDER LINER LH (See  REPLACEMENT  )
2. REMOVE FRONT FENDER LINER RH (See  REPLACEMENT  )
3. REMOVE FRONT BUMPER COVER (See  REPLACEMENT  )
4. HEAD LIGHT ASSY
   1. Remove the 4 screws.
   2. Disconnect the connectors.
      Fig 1: Removing 4 Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Pull out the headlight unit forward.
   4. Remove the headlight assy.
      Fig 2: Removing Headlight Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE CLEARANCE LAMP BULB

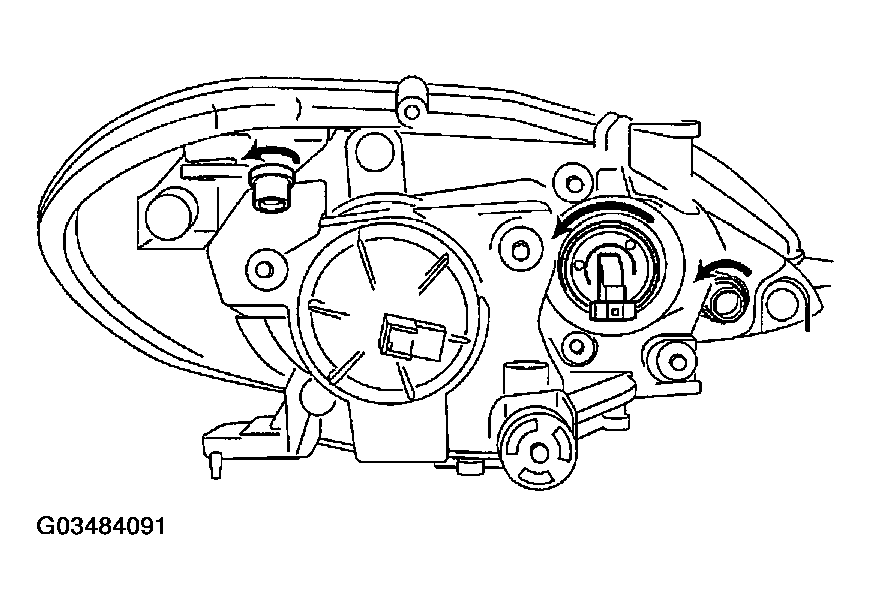

   1. Remove the clearance light bulb as shown in Fig 3.
      Fig 3: Removing Clearance Light Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE FRONT TURN SIGNAL LAMP BULB
7. REMOVE HEADLAMP, NO.2 BULB
8. REMOVE HEADLAMP, NO.1 BULB (HALOGEN HEAD LAMP)
9. REMOVE DISCHARGE HEADLAMP BULB (DISCHARGE HEAD LAMP)
   1. Remove the headlight bulb cover in Fig 4.
      Fig 4: Removing Headlight Bulb Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

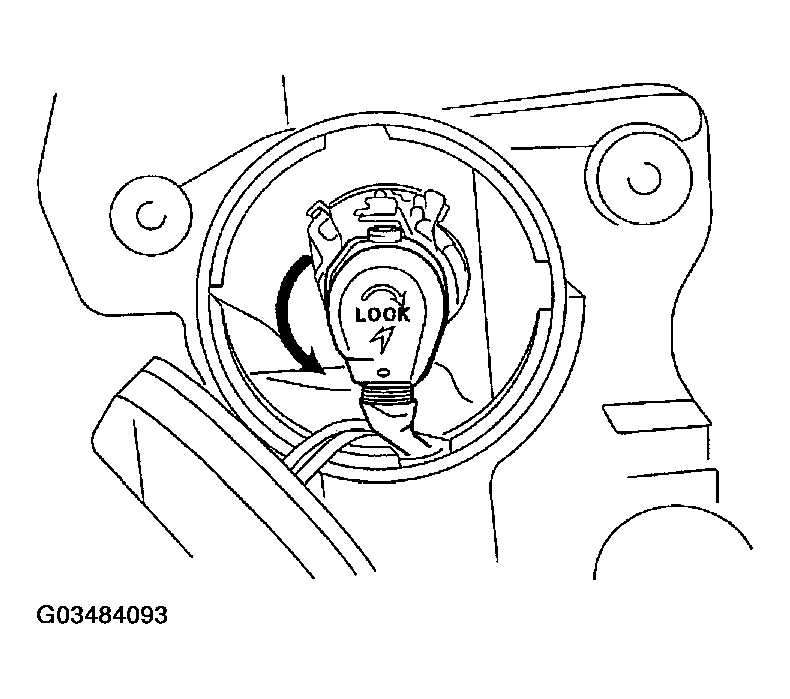

   2. Rotate the bulb socket cover in the direction of the arrow and pull it off backward of the vehicle.
      Fig 5: Rotating Bulb Socket Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

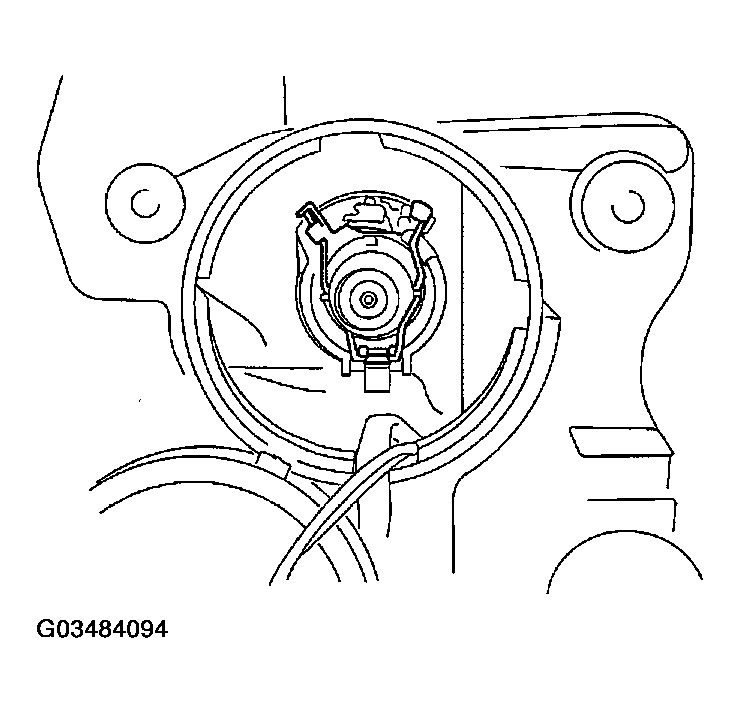

   3. Release the lock of the set spring and remove the discharge headlamp bulb.
      Fig 6: Releasing Lock Of Set Spring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE SUB-ASSY HEADLAMP LIGHT CONTROL ECU LH (DISCHARGE HEAD LAMP)
    1. Remove the 4 screws and headlight light control ECU cover.
       Fig 7: Removing Screws And Headlight Light Control ECU Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
       Fig 8: Removing 2 Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Release the claw, disconnect the connector.
    4. Remove the headlight light control ECU sub-assy LH.
       Fig 9: Removing Headlight Light Control ECU Sub-Assy LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. INSTALL HEADLAMP PROTECTOR RETAINER UPPER LH

    HINT:

    When only the installation part of the headlight unit assy LH is damaged, it can be repaired inexpensively by using a headlight protector retainer UPPER LH. In this case, however, the headlight unit assy LH itself should not be damaged.

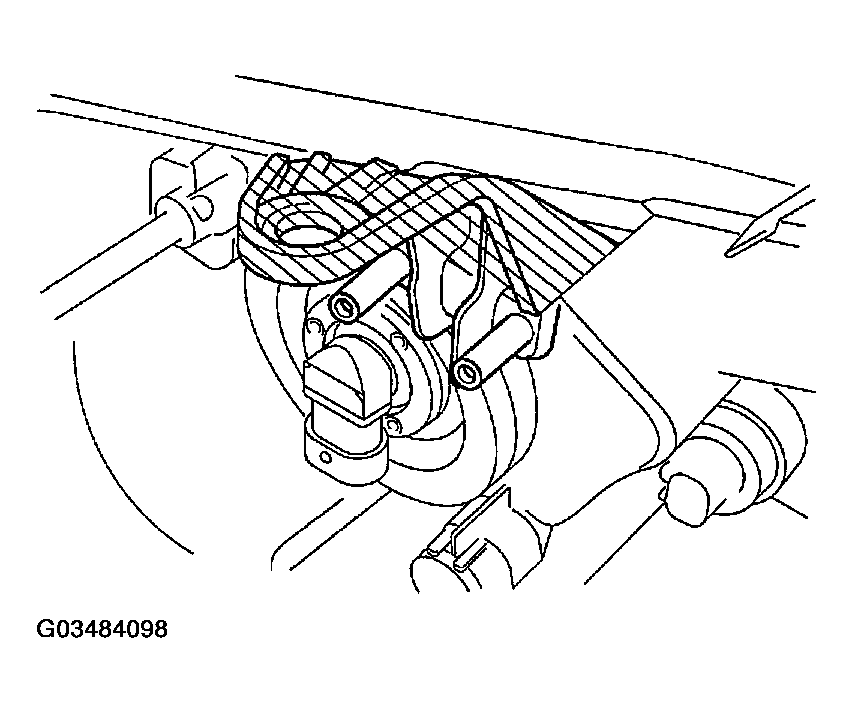

    1. Cut off the part shaded in Fig 10 and properly it with sandpaper.
       NOTE: After cutting off the part roughly, place the headlight protector retainer UPPER LH against the bosses and gradually file any interfering part until the proper condition for installation is made.
       Fig 10: Identifying Headlamp Protector Retainer Upper LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

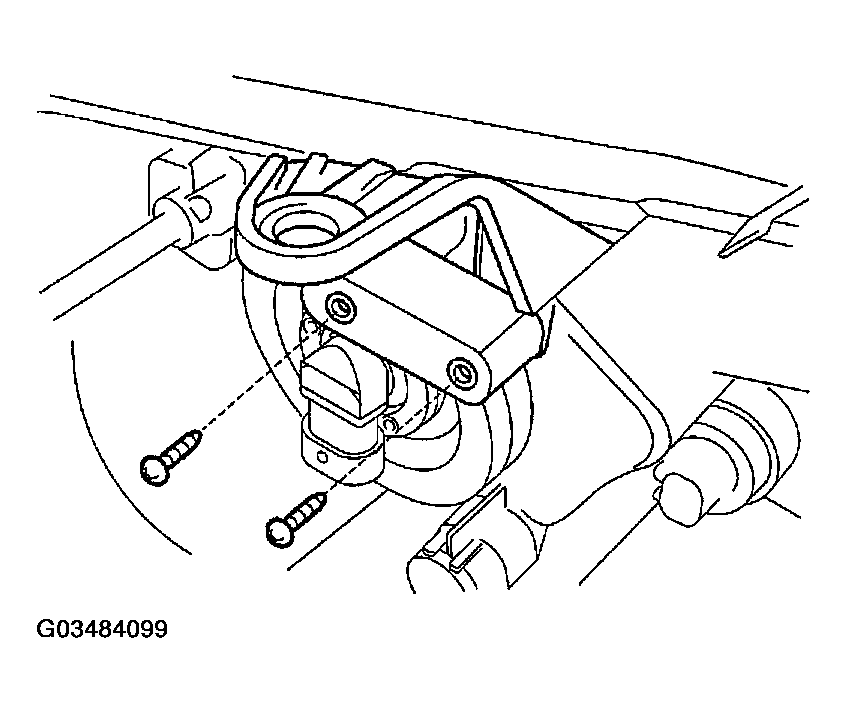

    2. Install the headlight protector retainer UPPER LH with the 2 screws.
       Fig 11: Installing Headlight Protector Retainer Upper LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. INSTALL HEADLAMP PROTECTOR RETAINER LWR LH

    HINT:

    When only the installation part of the headlight unit assy LH is damaged, it can be repaired inexpensively by using a headlight protector retainer LWR LH. In this case, however, the headlight unit assy LH itself should not be damaged.

    1. Cut off the part shaded in Fig 12 and properly it with sandpaper.
       NOTE: After cutting off the part roughly, place the headlight protector retainer LWR LH against the bosses and gradually file any interfering part until the proper condition for installation is made.
       Fig 12: Identifying Headlamp Protector Retainer LWR LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the headlight protector retainer LWR LH with the 2 screws.
       Fig 13: Installing Headlight Protector Retainer LWR LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. PUT VEHICLE THESE CONDITIONS (See  ADJUSTMENT   )
14. ADJUST FOG LIGHT AIM (See  ADJUSTMENT   )
15. HEADLIGHT AIM ONLY (See  ADJUSTMENT   )
