Floor Shift Assembly: Removal

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSFER SHIFT LEVER KNOB
  2. REMOVE UPPER CONSOLE PANEL (See  COMPONENTS  )
    Fig 1: Removing Floor Shift Gear Shifting Rod From Connecting Rod Swivel
    G01352605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. SEPARATE NO. 1 FLOOR SHIFT GEAR SHIFTING ROD
    1. Shift into the N position.
    2. Remove the nut and separate the No. 1 floor shift gear shifting rod from the connecting rod swivel.

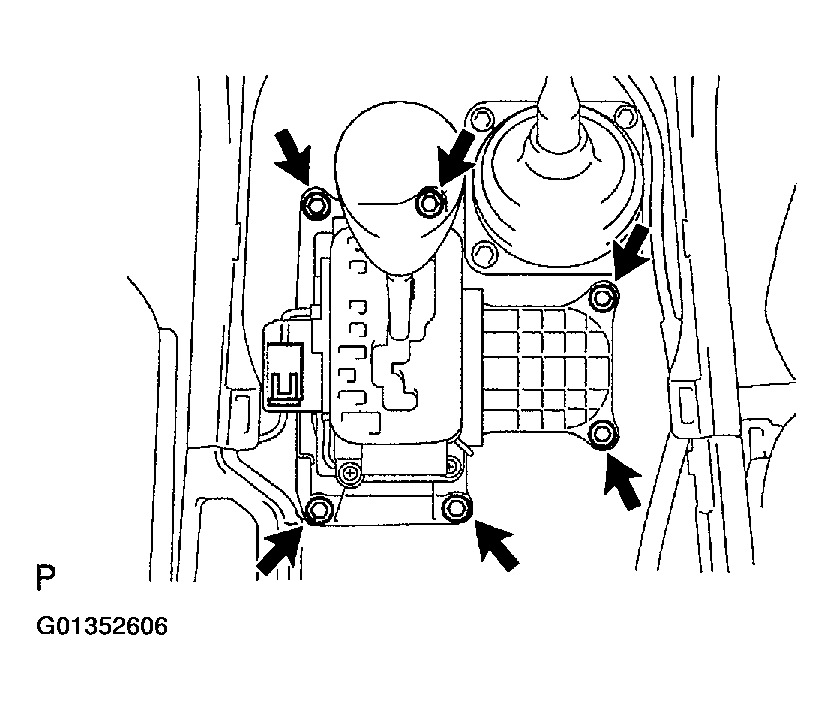

      Fig 2: Removing Floor Shift Lever Assembly
      G01352606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FLOOR SHIFT LEVER ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 6 bolts.

      Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

    3. Remove the floor shift lever assembly.
