Section 294 (Rear Axle Shaft): Reassembly

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR AXLE BEARING
Using SST and a press, install a new bearing to the bearing case.
1. SST 09950-60020 (09951-00890)

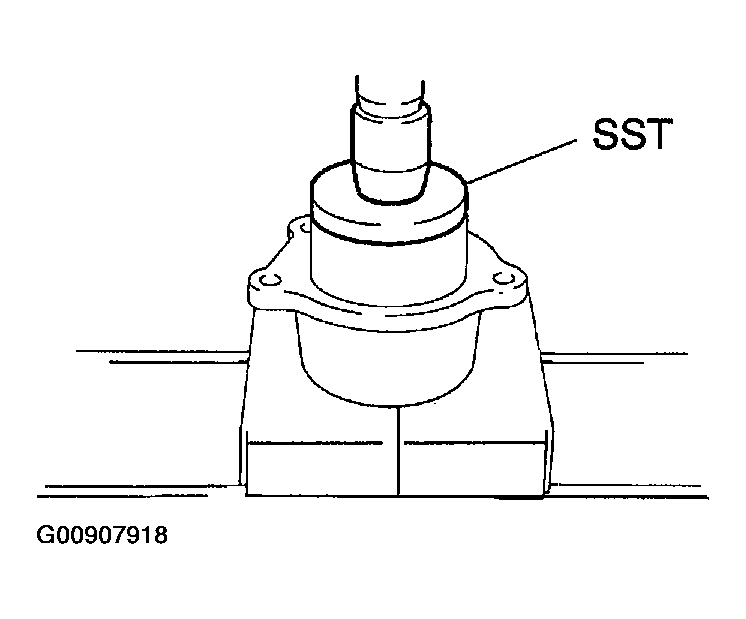

Fig 1: Installing New Bearing To Bearing Case
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BEARING CASE
Position the backing plate on the bearing case and using a press and 2 socket wrenches, install the serration bolts.

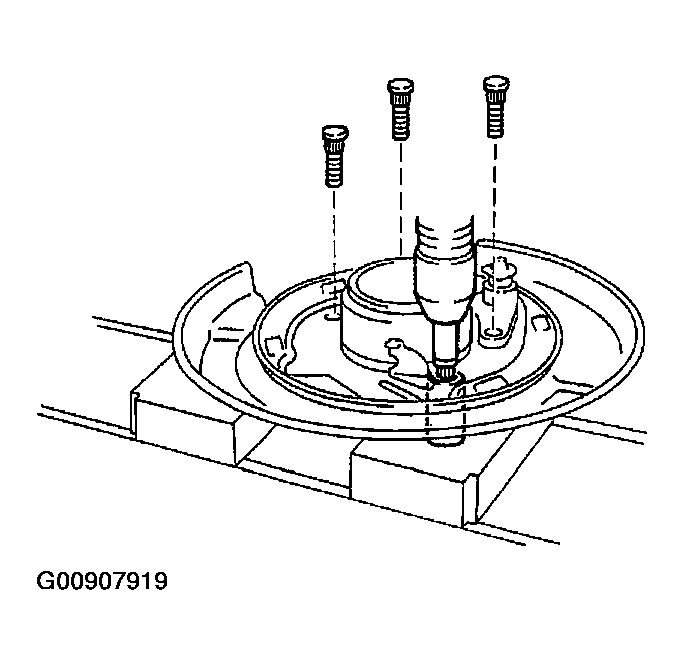

Fig 2: Installing Serration Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

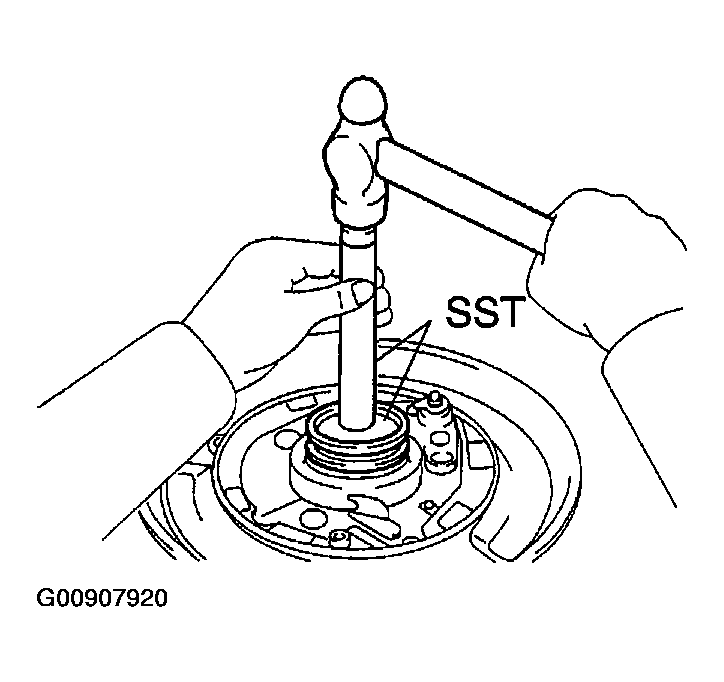

Fig 3: Installing New Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTER OIL SEAL
1. Using SST and a hammer, install a new oil seal.
  1. SST 09950-60020 (09951-00810), 09950-70010 (09951-07100)
2. Coat MP grease to the oil seal lip.
INSTALL OIL DEFLECTOR AND GASKET
Position a new gasket on the axle shaft and install a washer and nut to a new hub bolt, as shown in Fig 4 , and install the hub bolt by torquing the nut.

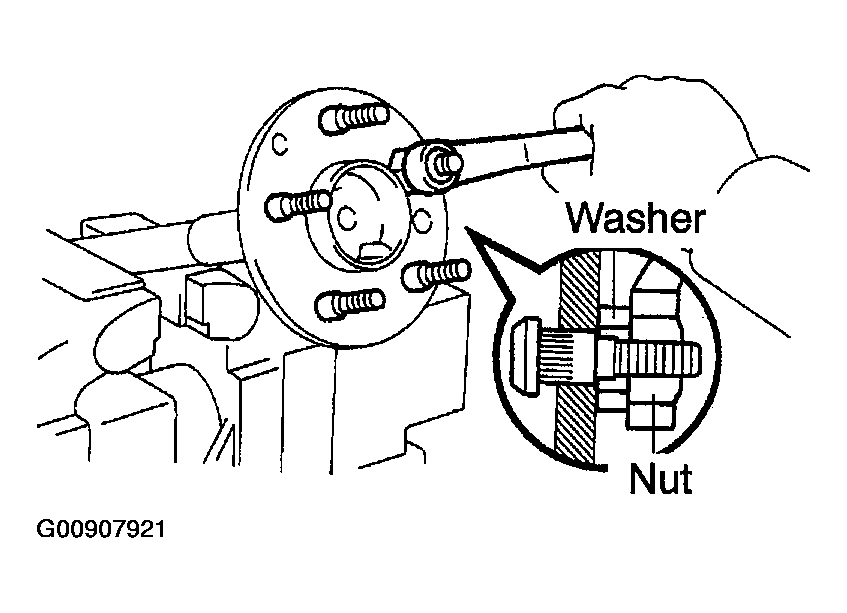

Fig 4: Installing Hub Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR AXLE SHAFT TO BACKING PLATE
1. Install the backing plate, plate washer and bearing retainer on the rear axle shaft.

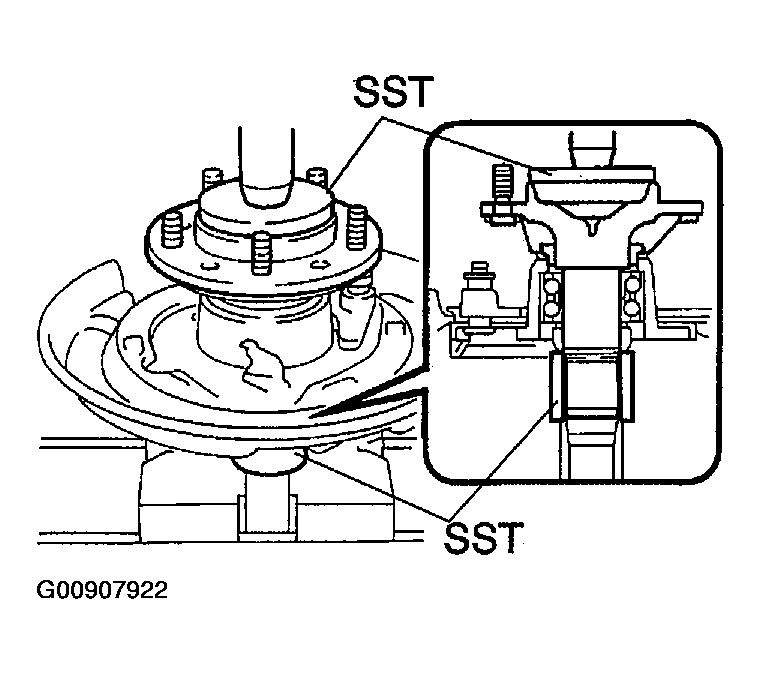

  Fig 5: Installing Rear Axle Shaft Into Backing Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, install the rear axle shaft into the backing plate.
  1. SST 09631-12090, 09950-60020 (09951-01030)
INSTALL SNAP RING TO AXLE SHAFT
Using a snap ring expander, install a new snap ring.
INSTALL ABS SPEED SENSOR ROTOR AND BEARING RETAINER (DIFFERENTIAL SIDE)
Using SST and a press, install a new ABS speed sensor rotor and bearing retainer.
1. SST 09631-12090, 09950-60020 (09951-01030)
2. Standard length: 170.7 +/- 1.0 mm (6.720 +/- 0.039 in.)

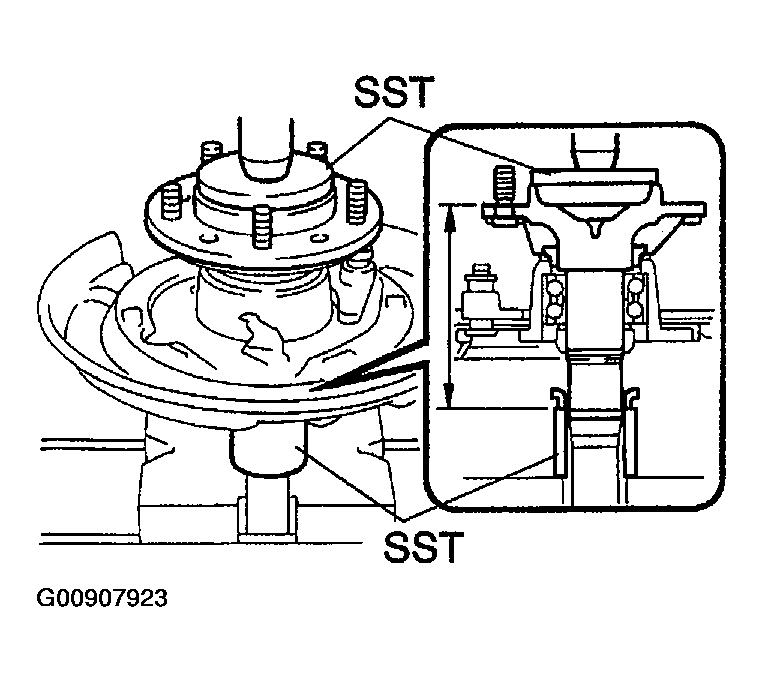

Fig 6: Installing New ABS Speed Sensor Rotor & Bearing Retainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
