Inspection Procedure
WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK CELLULAR PHONE

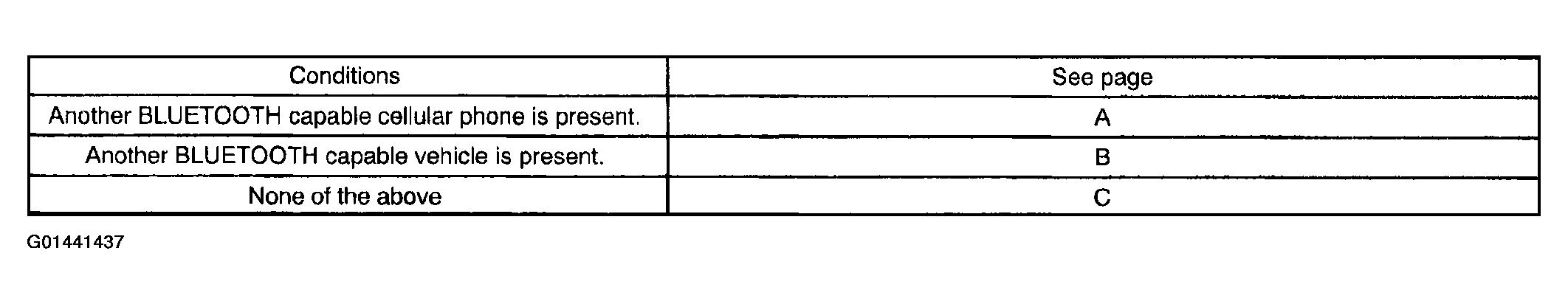

- Check by following the conditions below.
B: GO TO STEP 3
C: GO TO STEP 4
A: Go to next step
- CHECK USING ANOTHER CELLULAR PHONE
- Check if the system functions using another BLUETOOTH capable cellular phone.
OK: The system functions.
NG: GO TO STEP 4
OK: USE A CAPABLE BLUETHOOTH CELLULAR PHONE (DEPENDING ON THE VERSION, SOME BLUETOOTH CAPABLE CELLULAR PHONES CANNOT BE USED)
- Check if the system functions using another BLUETOOTH capable cellular phone.
- CHECK USING ANOTHER BLUETOOTH CAPABLE VEHICLE
- Check if the cellular phone is BLUETOOTH capable.
OK: The system functions.
OK:
REPLACE MULTI-DISPLAY (SEE REPLACEMENT )
NG: Go to next step.
- Check if the cellular phone is BLUETOOTH capable.
- CHECK CELLULAR PHONE
Check if the cellular phone is BLUETOOTH capable.
HINT:
Some version of BLUETOOTH capable cellular phone may not function.
OK:
The phone is BLUETOOTH capable.
NG: USE A BLUETOOTH CAPABLE CELLULAR PHONE
OK: Go to next step.
- CHECK CELLULAR PHONE
- Check if the cellular phone can call.
HINT:
When the battery charge is low, registration or directory transfer cannot be performed.
OK: The cellular phone can call.
NG: REPLACE THE CELLULAR PHONE
OK: REPLACE MULTI-DISPLAY (SEE REPLACEMENT )
- Check if the cellular phone can call.
