Disc RUNOUT

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Lexus SC 430, 2002 Lexus RX 300, 2002 Lexus LX 470, 2002 Lexus LS 430, and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front wheel.
  2. Remove caliper support assembly and suspend aside.
  3. Turn disc 1/5 turn and reinstall. Install and tighten 3 hub nuts to specification. See TORQUE SPECIFICATIONS .
  4. Using a dial indicator, measure disc runout. See Fig 1.
  5. Make a note of runout and disc's position on hub.
  6. Repeat removing, turning, installing and measuring until disc has been installed on all hub positions.
  7. If minimum runout recorded in second and third position is less than specification, install disc in that position. See DISC BRAKE SPECIFICATIONS .
  8. If minimum runout recorded is greater than specification, replace disc and repeat procedure. It is possible to adjust disc runout by grinding it with an "On-car" brake lathe.
  9. Install torque plate and tighten 2 bolts to specification. See TORQUE SPECIFICATIONS .

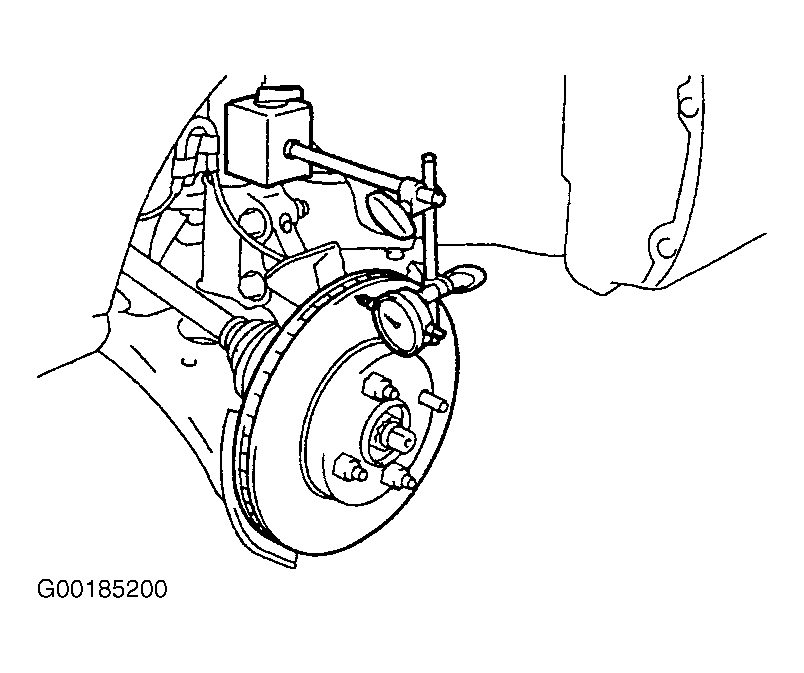

Fig 1: Inspecting Disc Runout
G00185200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
