Air Conditioning System: Location

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

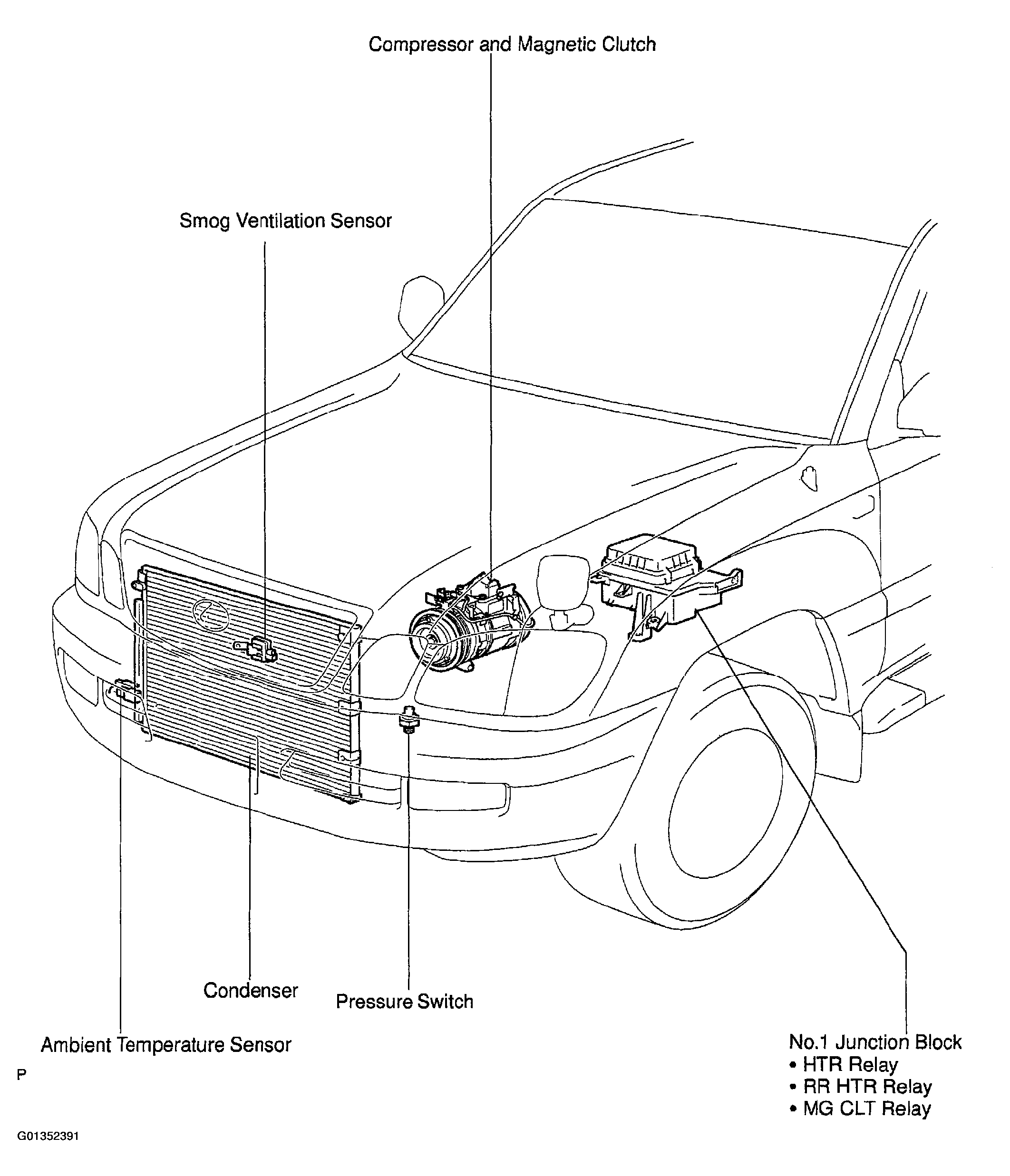

Fig 1: Identifying Air Conditioning System Components (1 Of 2)
G01352391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

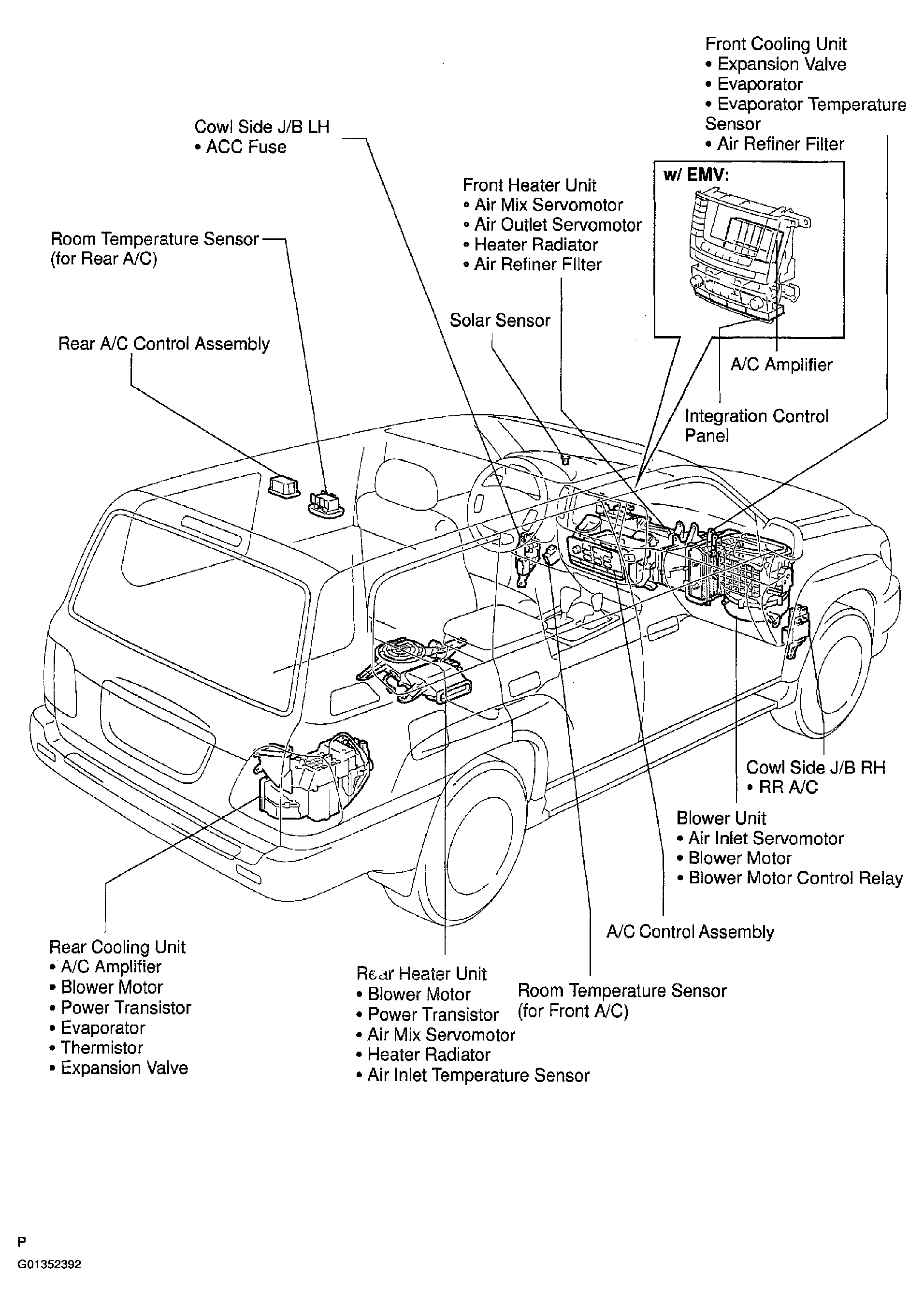

Fig 2: Identifying Air Conditioning System Components (2 Of 2)
G01352392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
