Water Valve: Installation

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal (See REMOVAL ).

AFTER INSTALLATION, CHECK WATER VALVE OPERATION
1. Turn ignition switch to ON.
2. Operate temperature control switches to "MAX. COOL" and "MAX. WARM", then check that water valve operation, as shown in the illustration.
If operation is not as specified, next step.

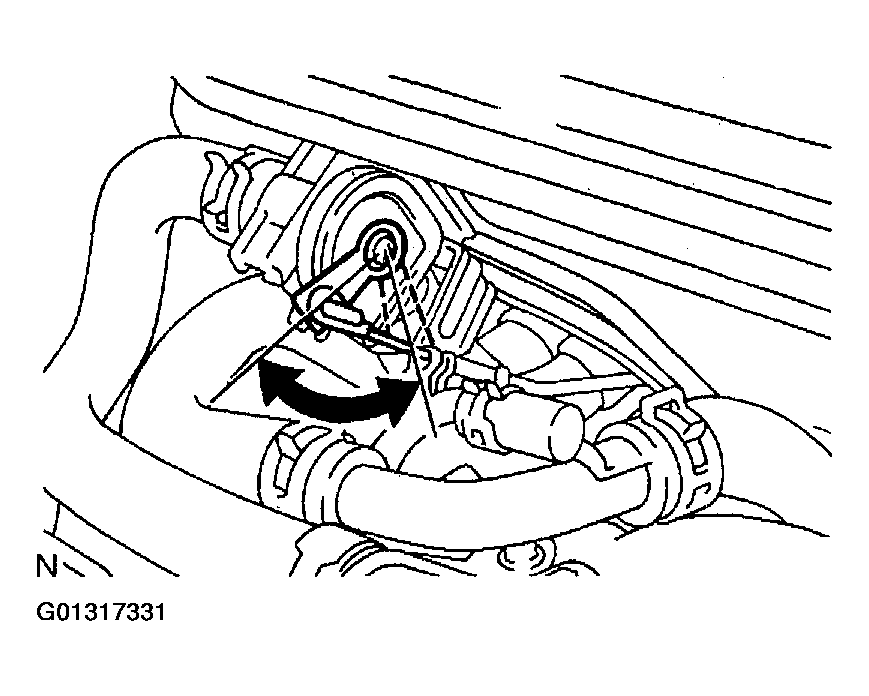

Fig 1: Inspecting Water Valve Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST WATER VALVE CONTROL CABLE
1. Turn ignition switch to ON.
2. Disconnect the control cable.
3. Set temperature control switches "MAX. COOL".
4. Set the water valve lever on "COOL" position, connect the control cable and lock the clamp.
HINT:

Lock the clamp while lightly pushing the outer cable in the direction, as shown in the illustration by an arrow.

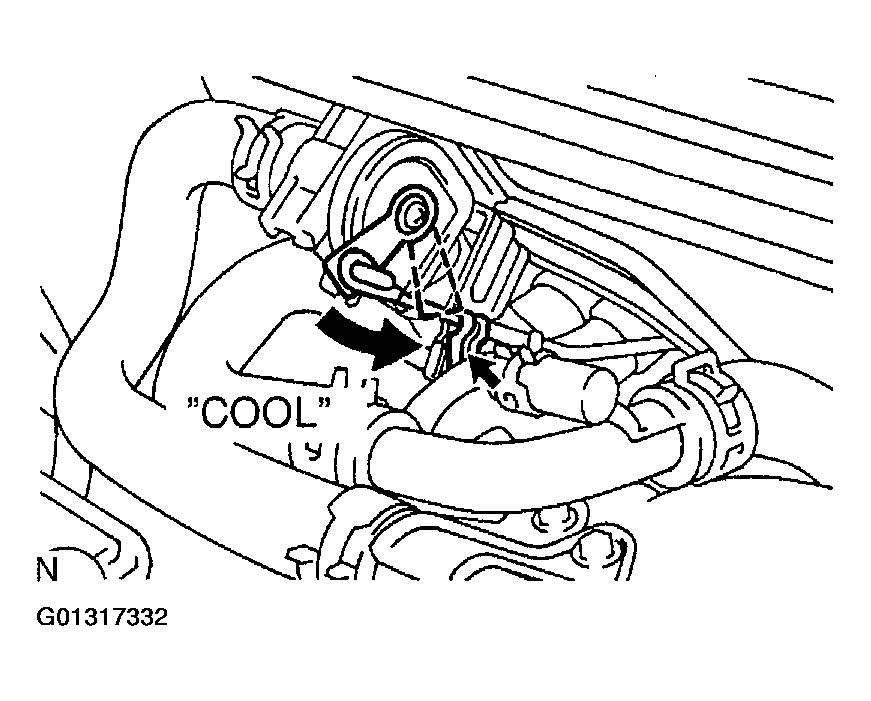

Fig 2: Adjusting Water Valve Control Cable
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
