Condenser Fan: Removal

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN ENGINE COOLANT FROM RADIATOR
HINT:

It is not necessary to drain out all coolant.
REMOVE AIR INLET DUCT
REMOVE AIR CLEANER ASSEMBLY
DISCONNECT RADIATOR UPPER HOSE
REMOVE CONDENSER FAN
1. Disconnect the connector.
2. Remove the 6 bolts and fan.

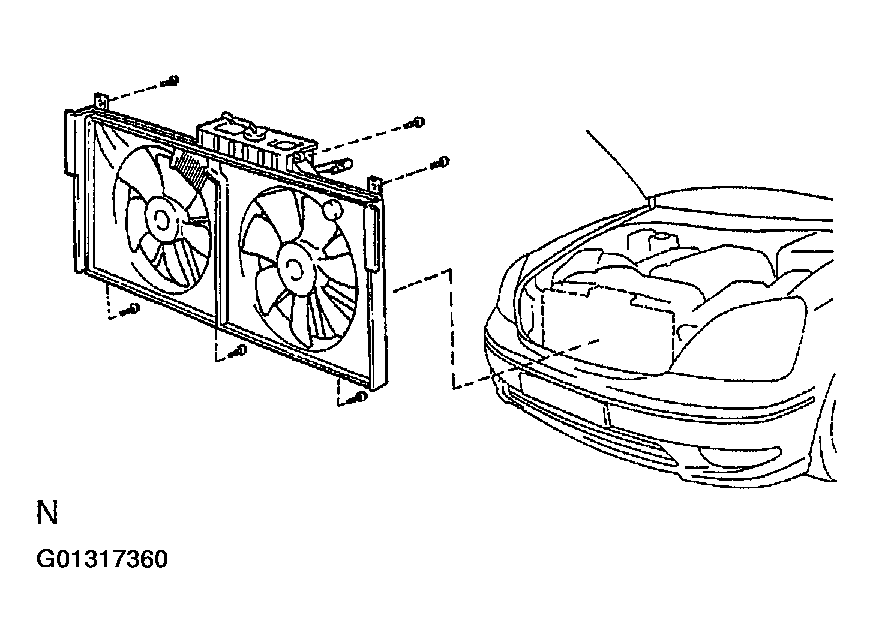

  Fig 1: Removing Condenser Fan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
