SFI System - Diagnosis: Location

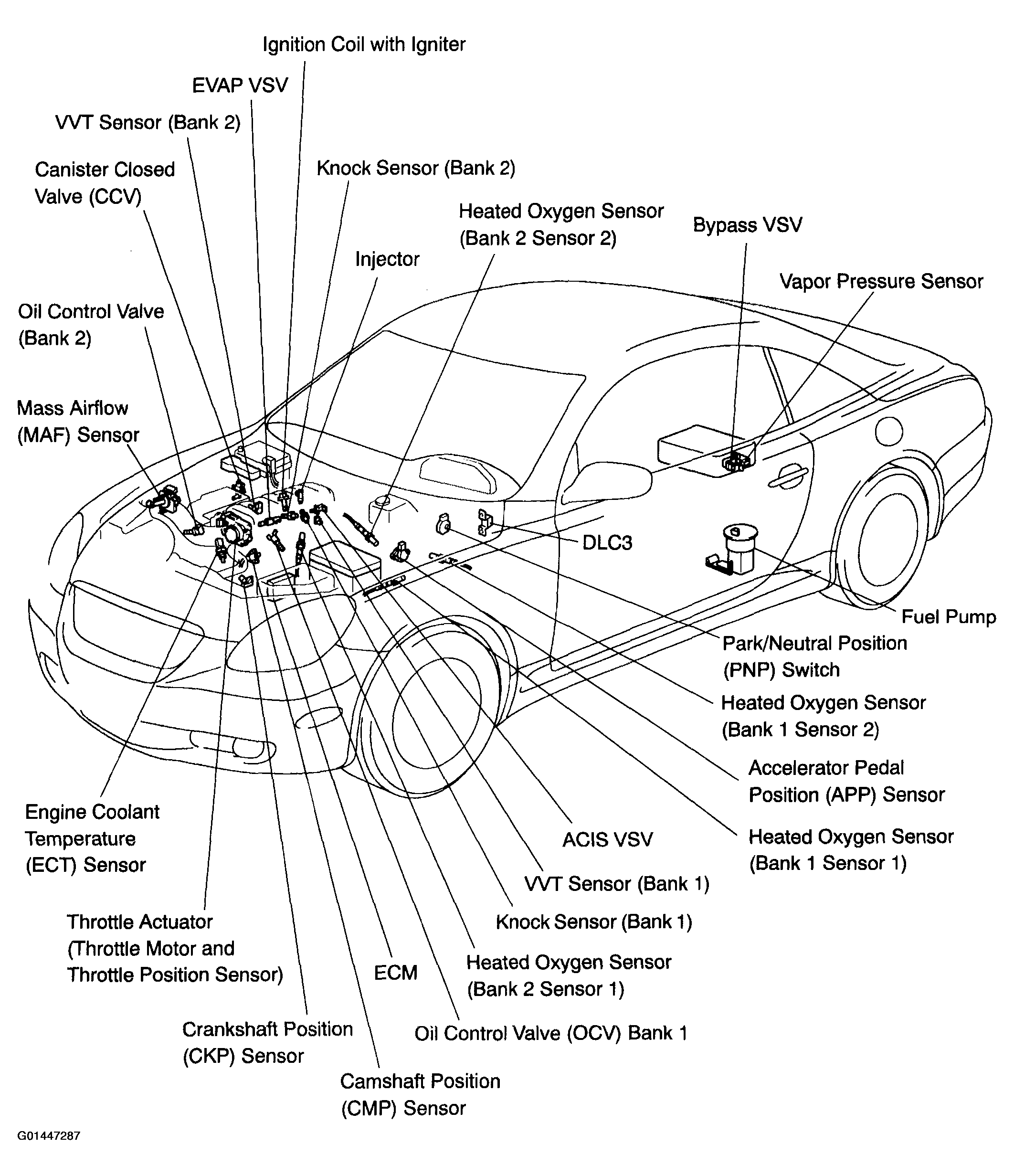

Fig 1: Identifying SFI System Part Location

G01447287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
