ECM Power Source Circuit: Wiring Diagram

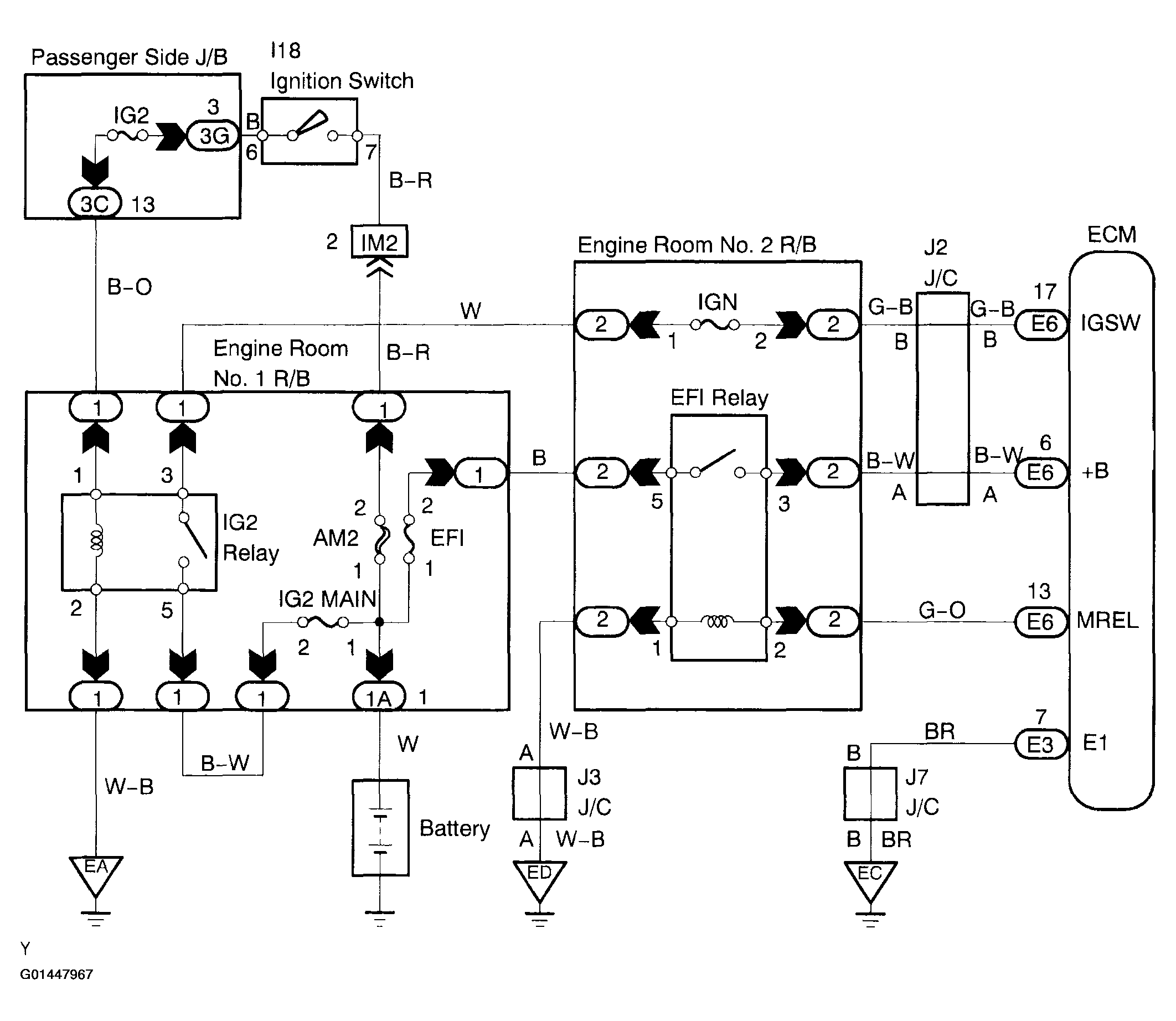

Fig 1: Circuit Range/Performance Wiring Diagram

G01447967

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
