DTC P0110: Intake Air Temperature Circuit, DTC P0112 Intake Air Temperature Circuit Low Input, DTC P0113 Intake Air Temperature Circuit High Input: Wiring Diagram

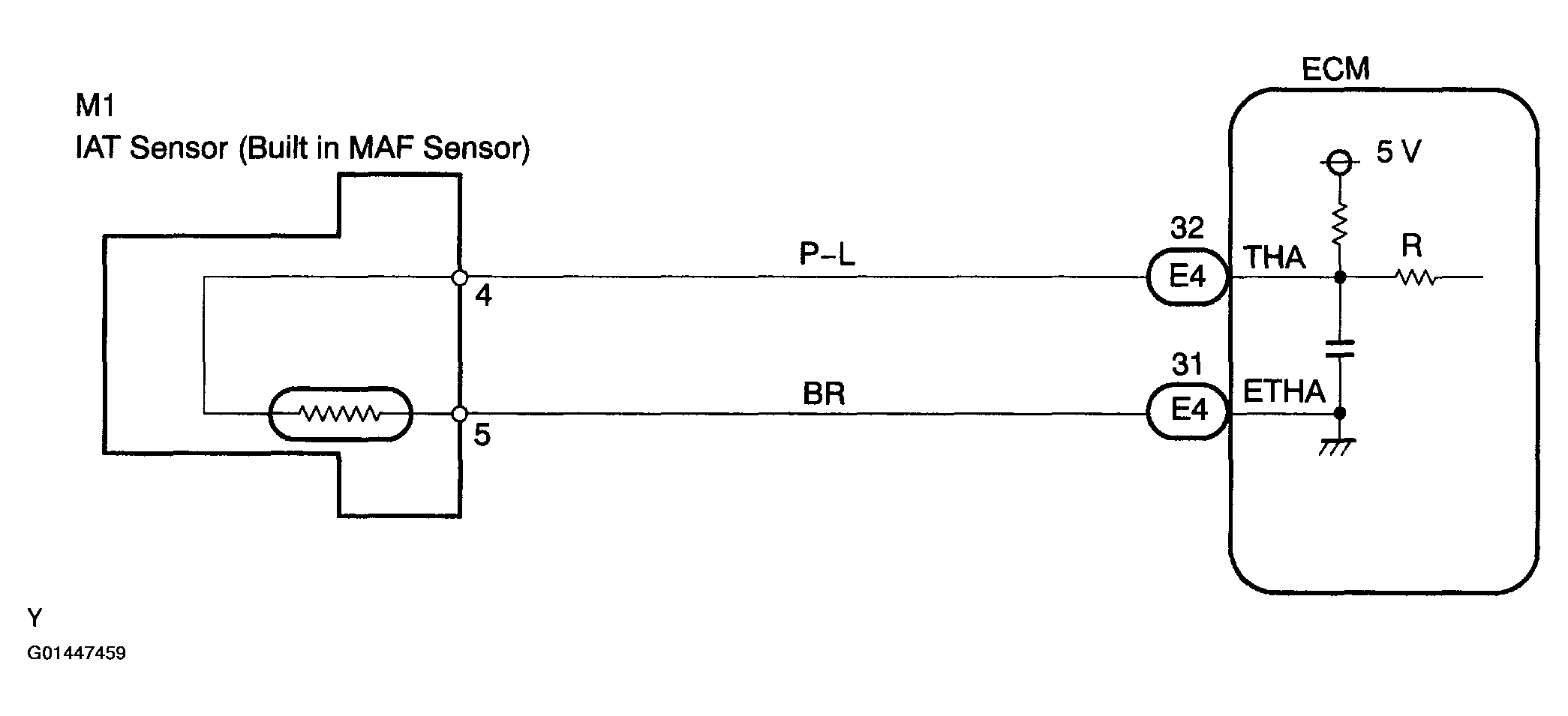

Fig 1: Intake Air Temperature Circuit Wiring Diagram
G01447459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
