Driver Power Window Does Not Operate: Wiring Diagram

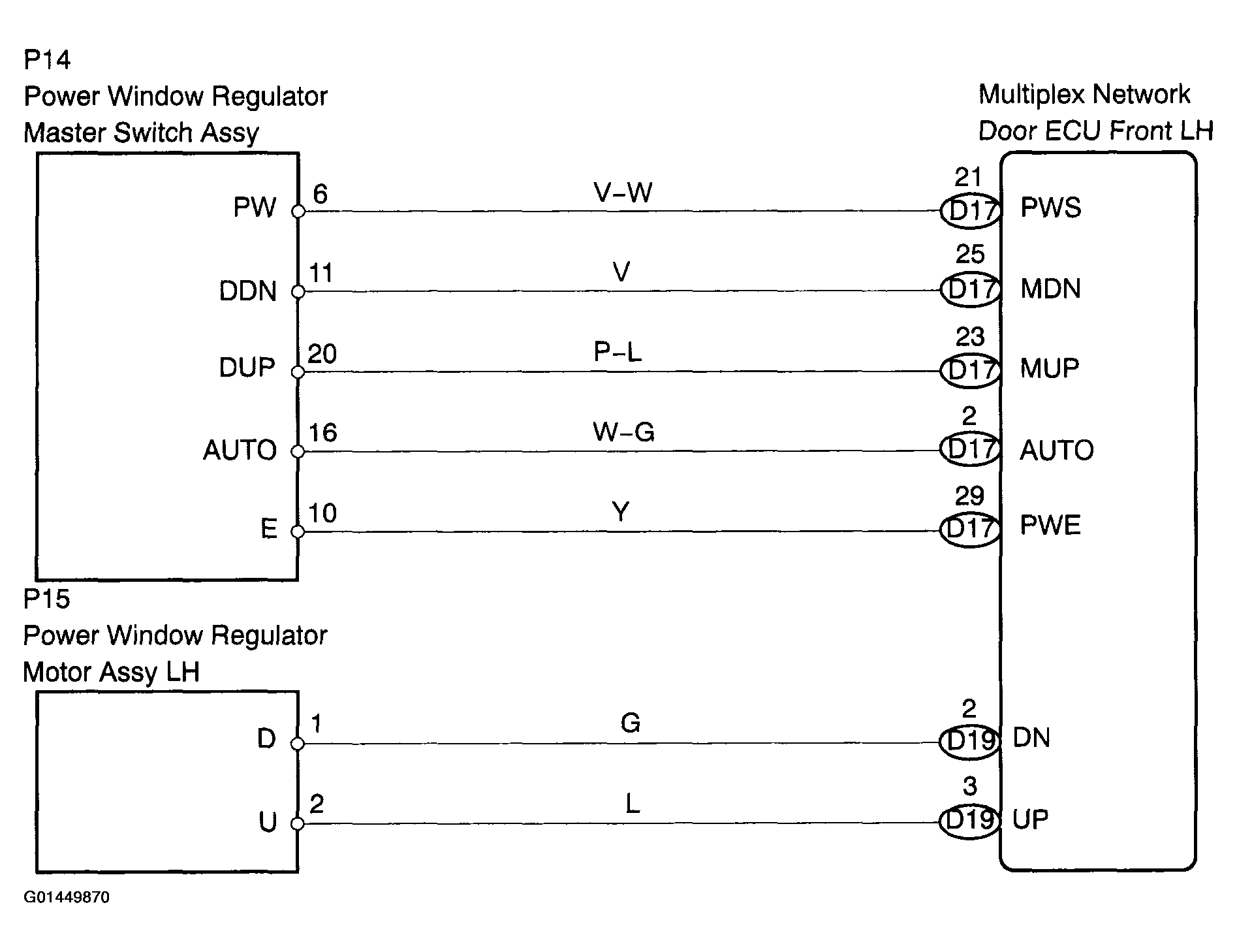

Fig 1: Power Window Wiring Schematic

G01449870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
