Circuit Description

This DTCs are output when the power window motor malfunctions.

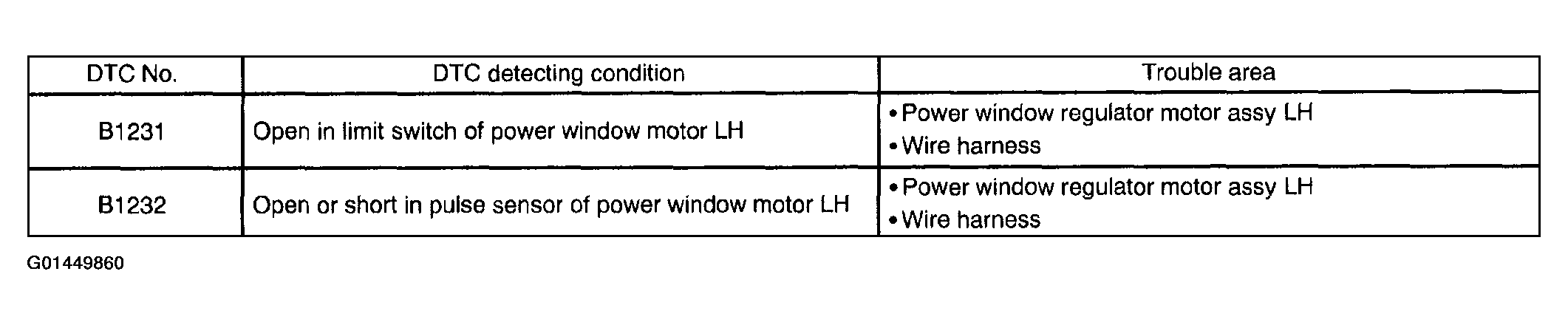

Fig 1: DTC B1231 And B1232 Detection Table

G01449860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
