Home >> Lexus >> 2004 >> SC 430 >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heater System >> Location

Seat Heater System: Location

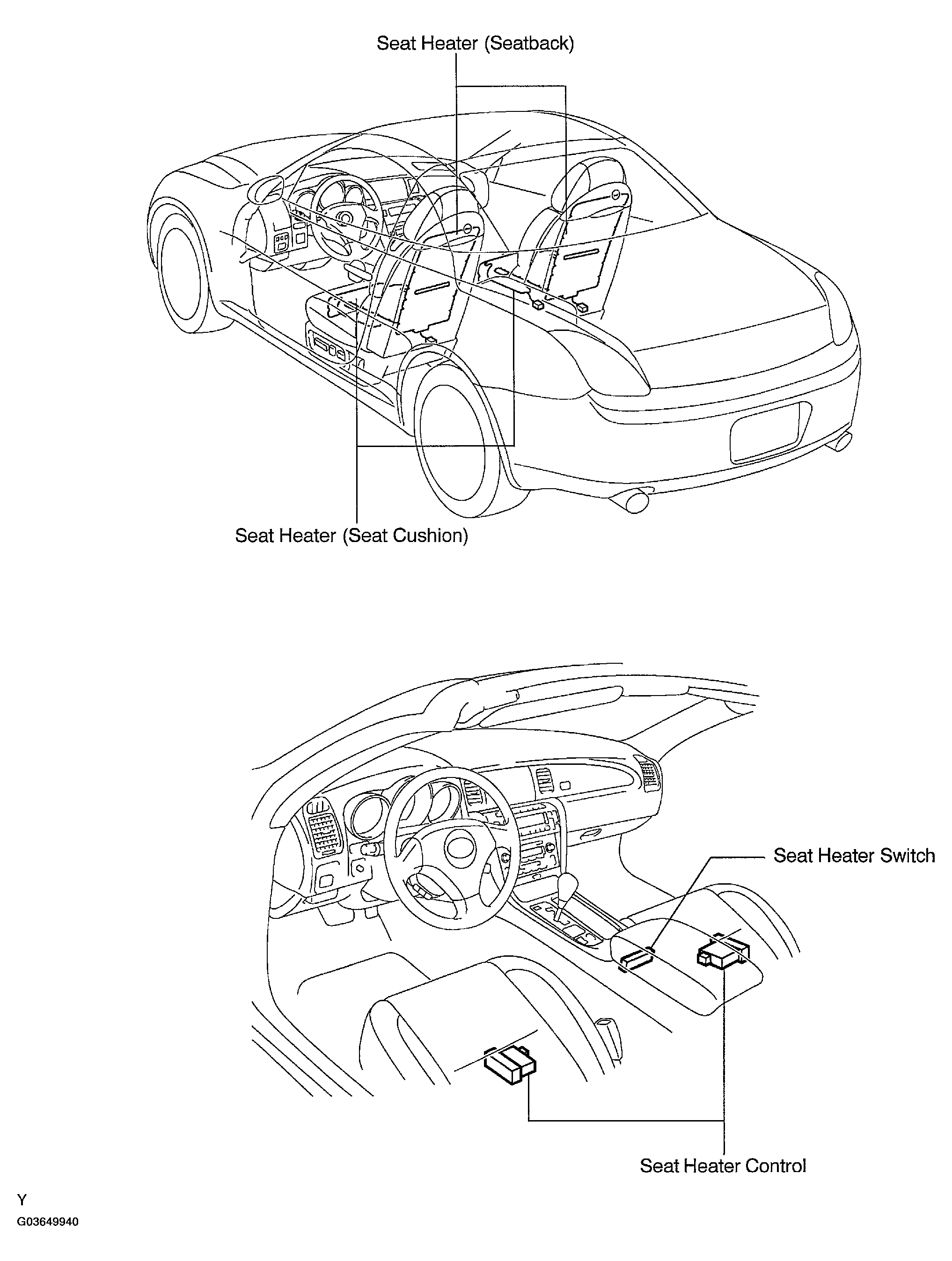

Fig 1: Locating Seat Heater System

G03649940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
