Power Mirror Control System - Diagnosis: Location

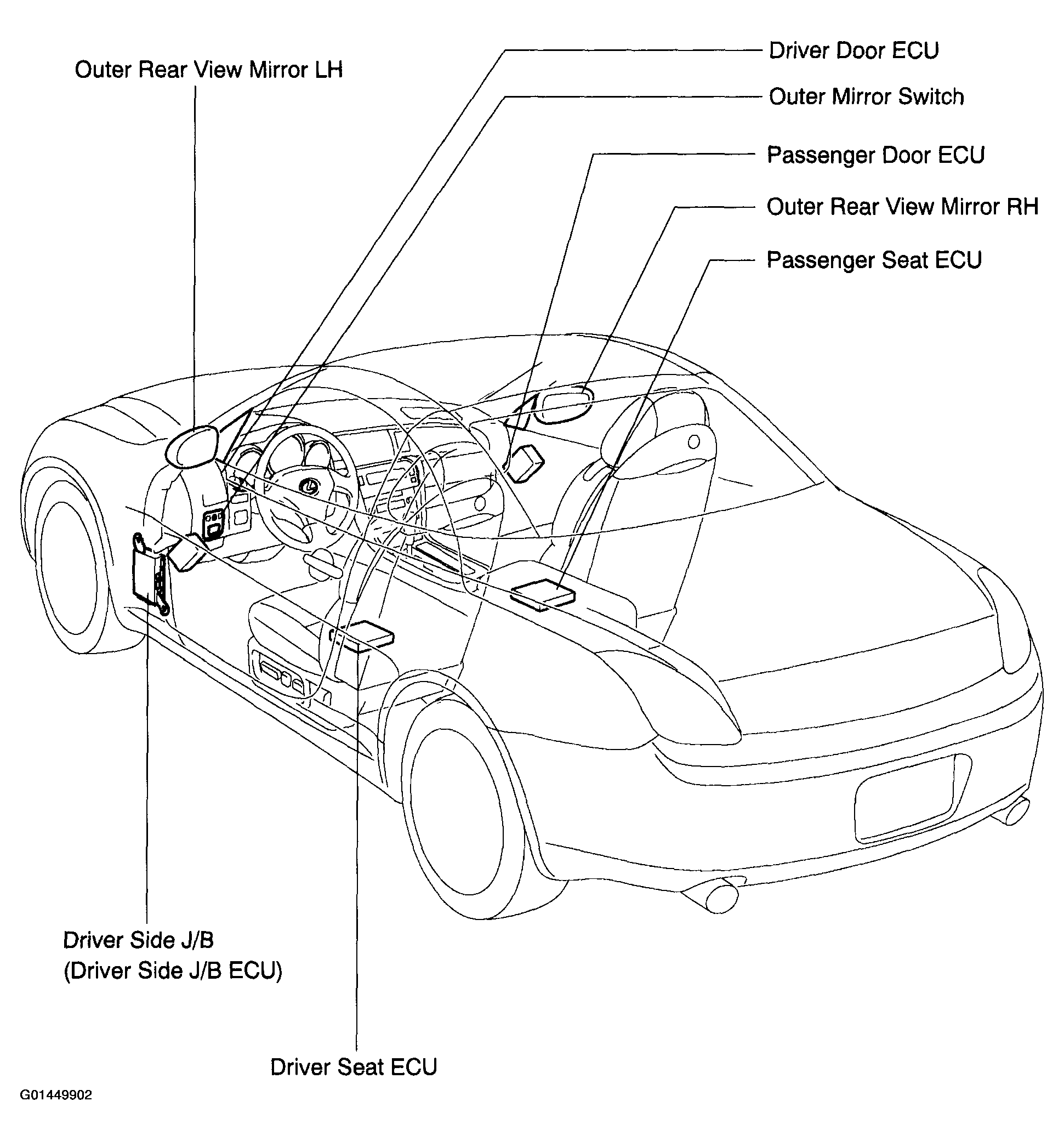

Fig 1: Locating Power Mirror Control System Components

G01449902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
