Wireless Door Lock Control System - Diagnosis: Pre-Check

READ VALUE OF HAND-HELD TESTER
1. Connect the hand-held tester to the DLC3.
2. Read the data monitor using the hand-held tester.
  Transponder (immobilizer) key ECU (switch condition):

  Fig 1: Transponder (Immobilizer) Key ECU (Switch Condition) - Data List Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Theft warning (security) ECU (switch condition):

  Fig 2: Theft Warning (Security) ECU (Switch Condition) - Data List Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM ACTIVE TEST USING HAND-HELD TESTER
1. Connect the hand-held tester to the DLC3.
2. Enter into the active test using the hand-held tester.
  Theft warning (security) ECU (switch condition):

  Fig 3: Theft Warning (Security) ECU (Switch Condition) - Active Test Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHANGE SETTING OF CUSTOMIZING FUNCTION USING HAND-HELD TESTER (REFERENCE)
1. Connect the hand-held tester to the DLC3.
2. Select a setting from the following items on the wireless door lock.
  Theft warning (security) ECU (switch condition):

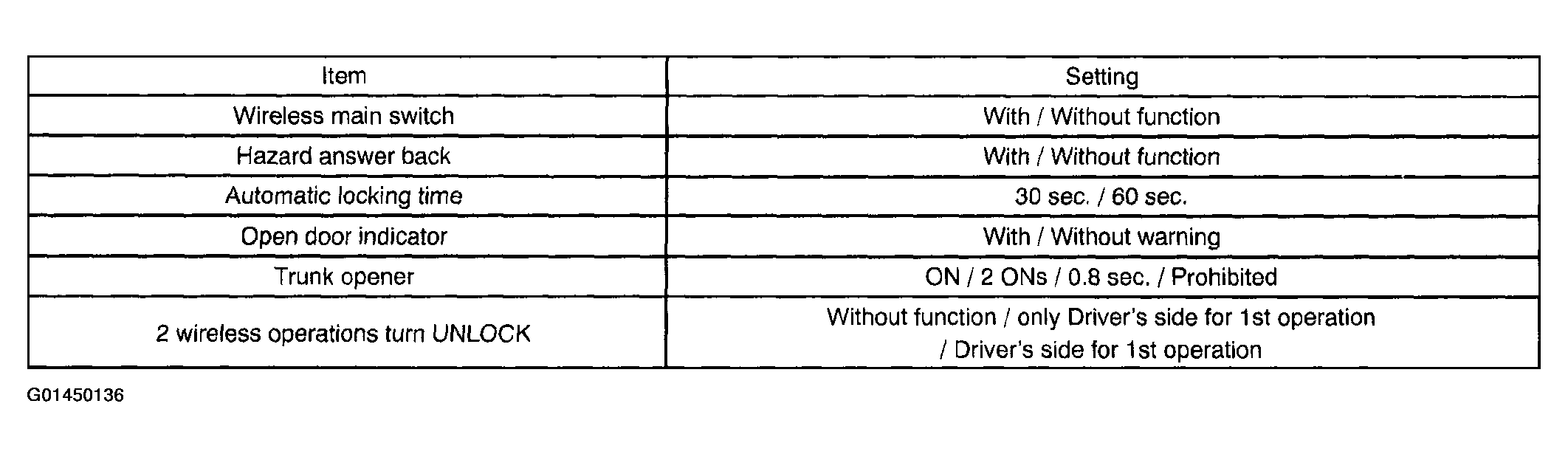

  Fig 4: Theft Warning (Security) ECU (Switch Condition) - Data List Table
