Audio & Visual System: Components

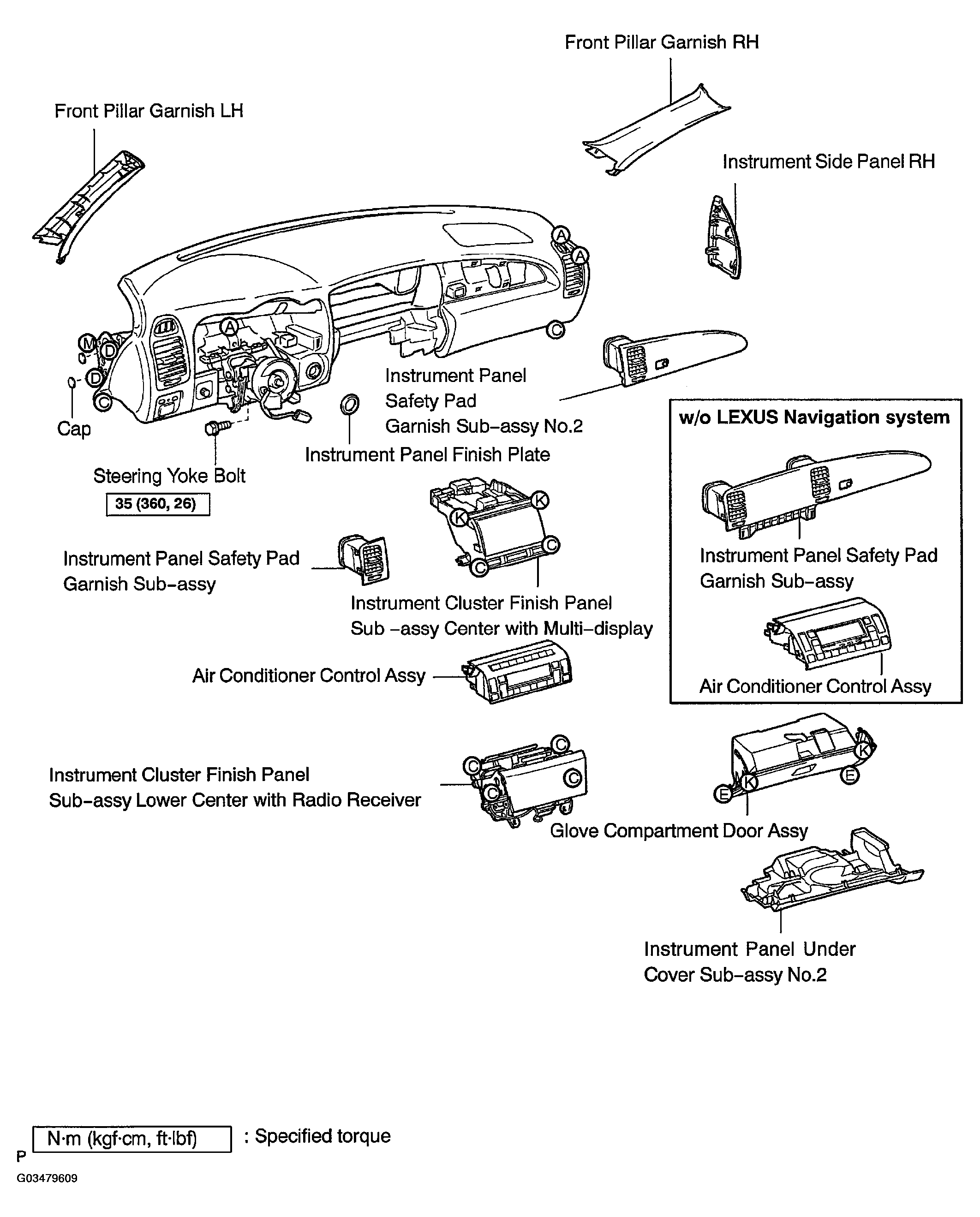

Fig 1: Identifying Audio & Visual System Components (1 Of 6)
G03479609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

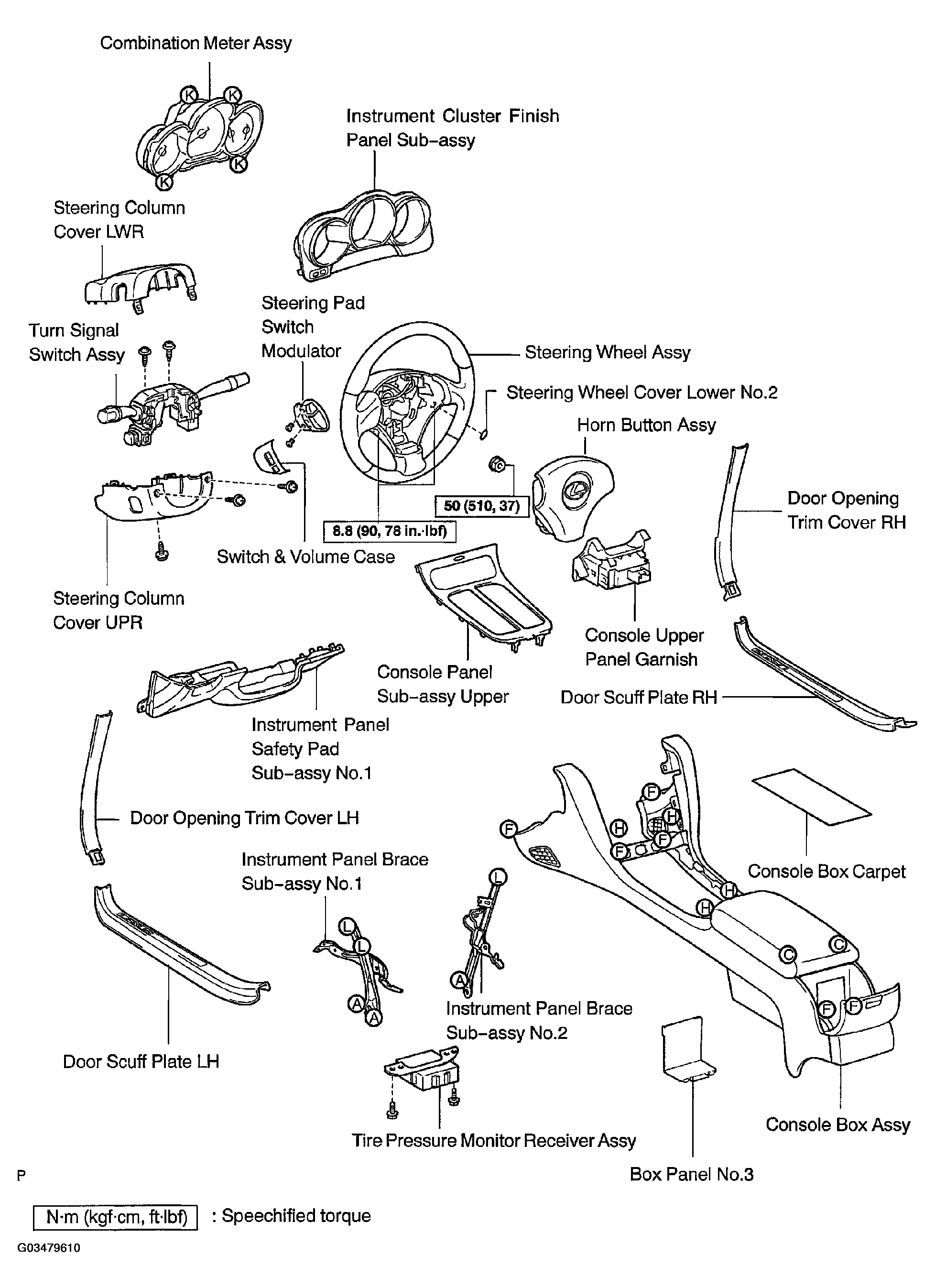

Fig 2: Identifying Audio & Visual System Components (2 Of 6)
G03479610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

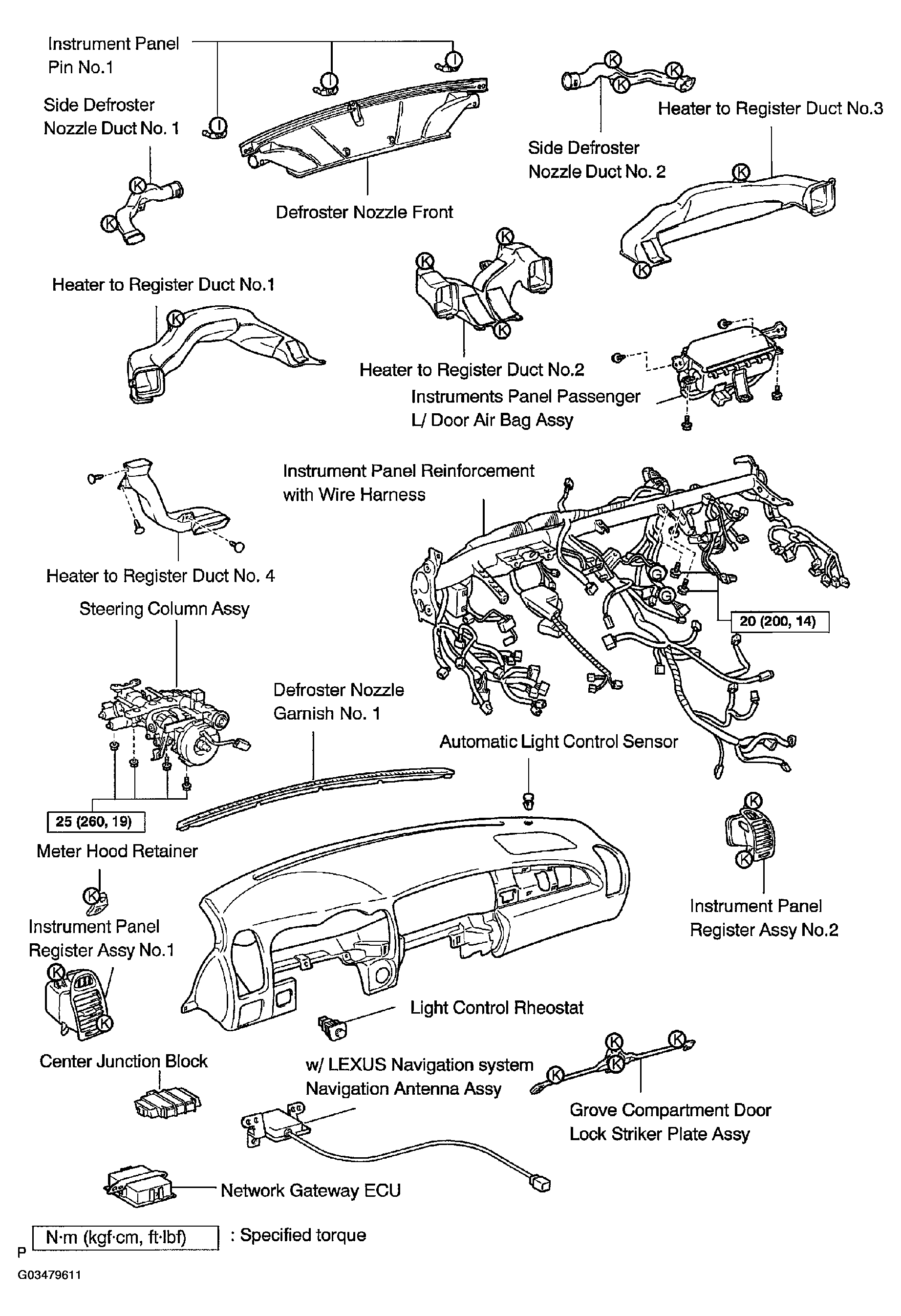

Fig 3: Identifying Audio & Visual System Components (3 Of 6)
G03479611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

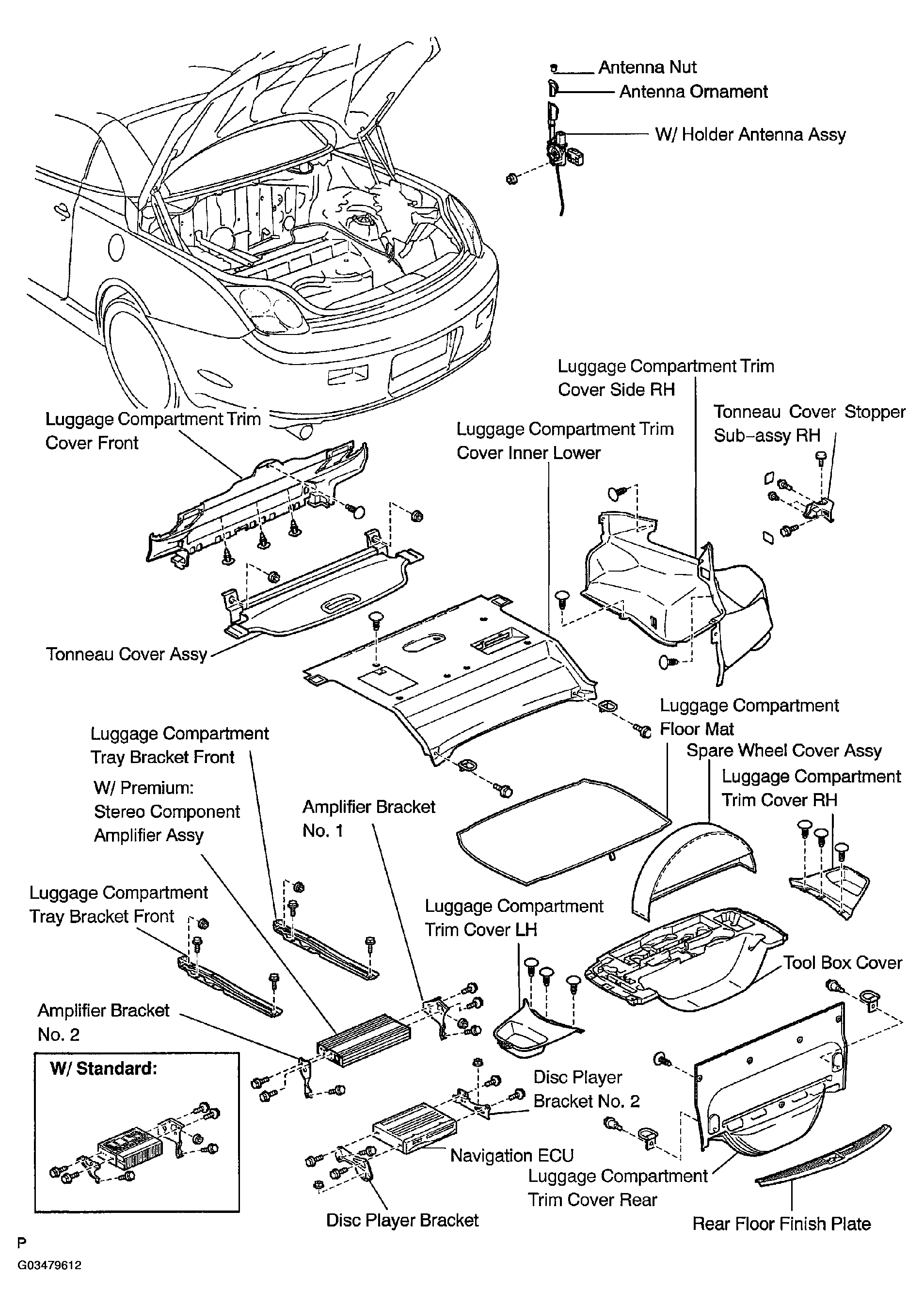

Fig 4: Identifying Audio & Visual System Components (4 Of 6)
G03479612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

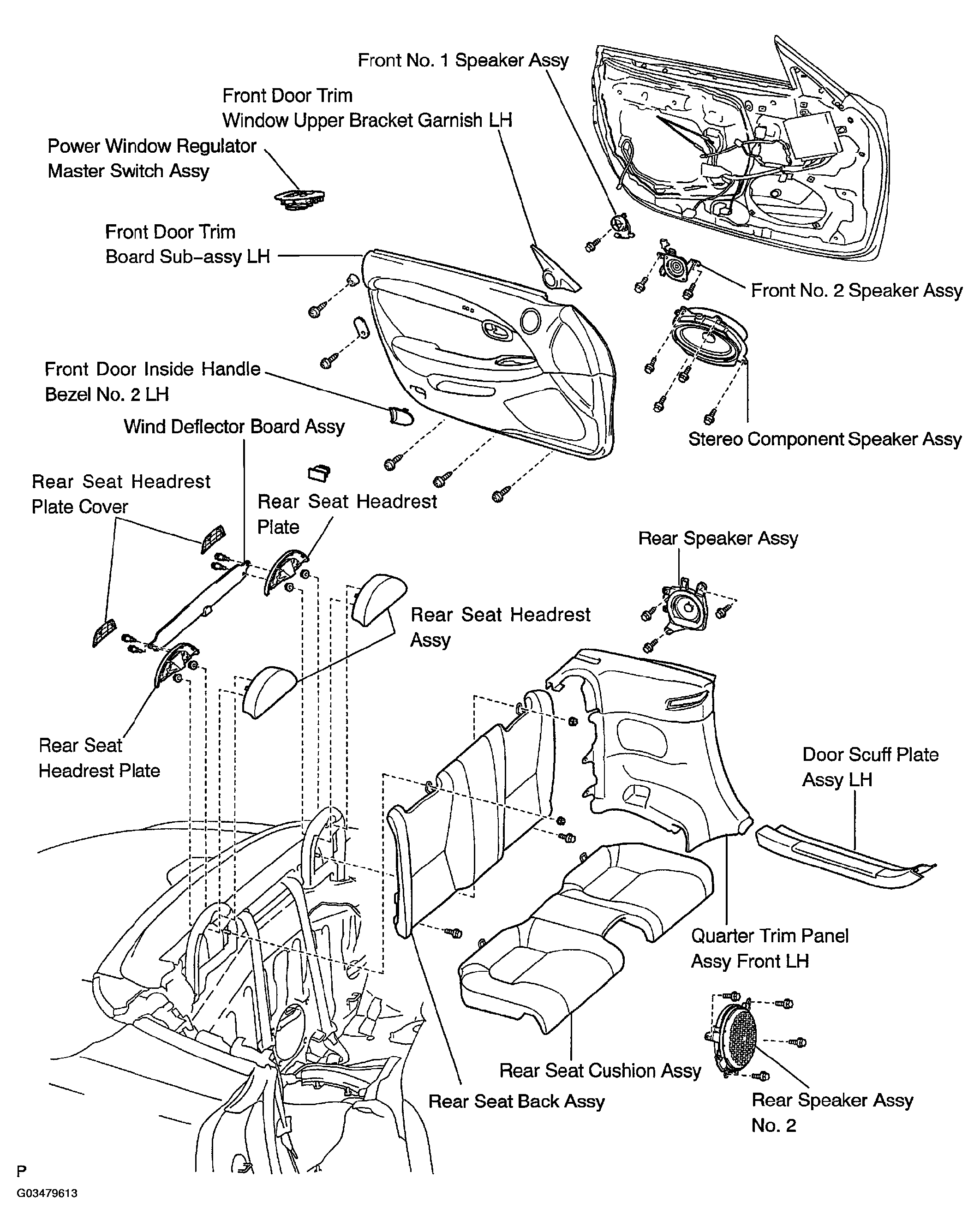

Fig 5: Identifying Audio & Visual System Components (5 Of 6)
G03479613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

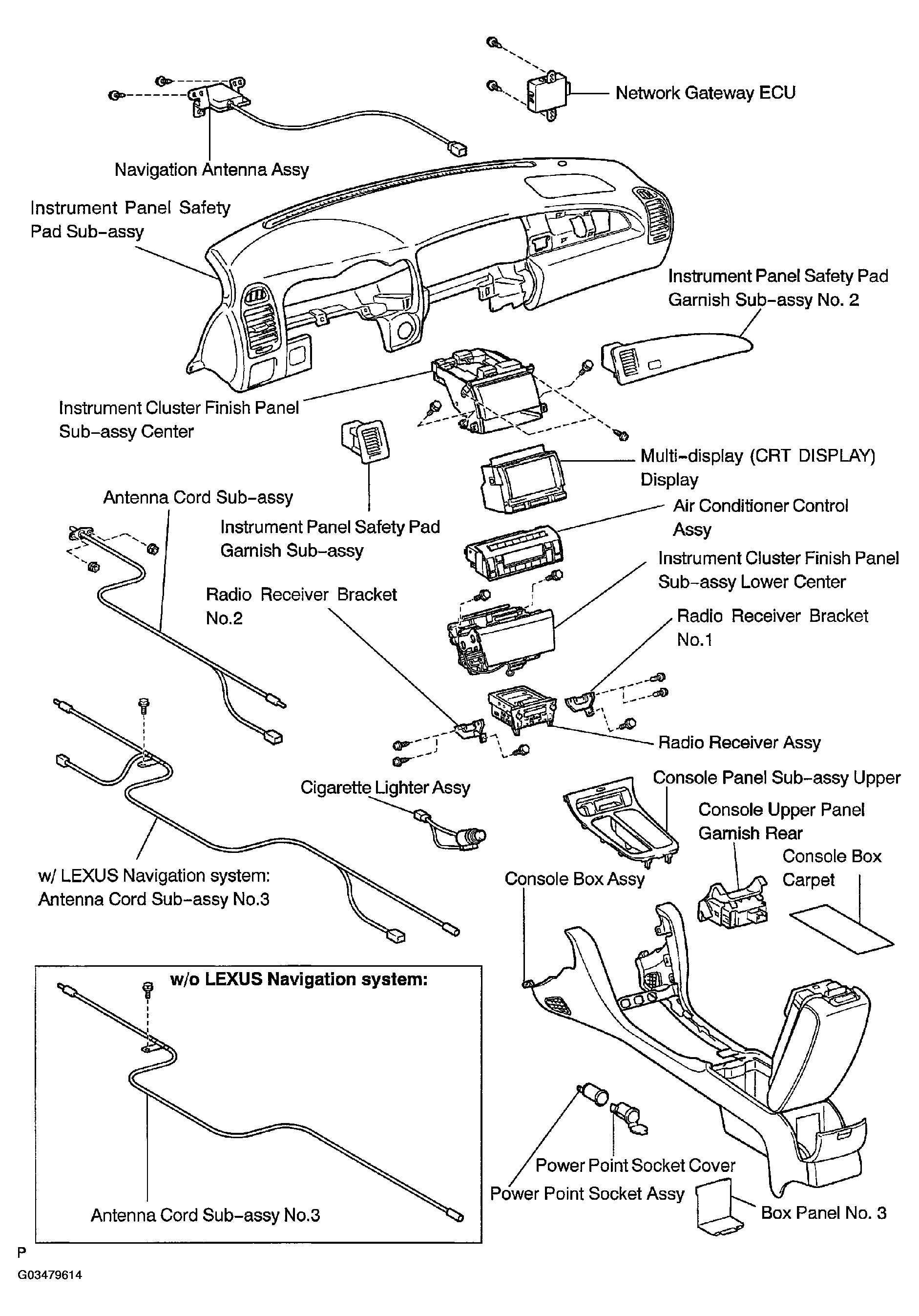

Fig 6: Identifying Audio & Visual System Components (6 Of 6)
G03479614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
