Diagnostic Trouble Code Table

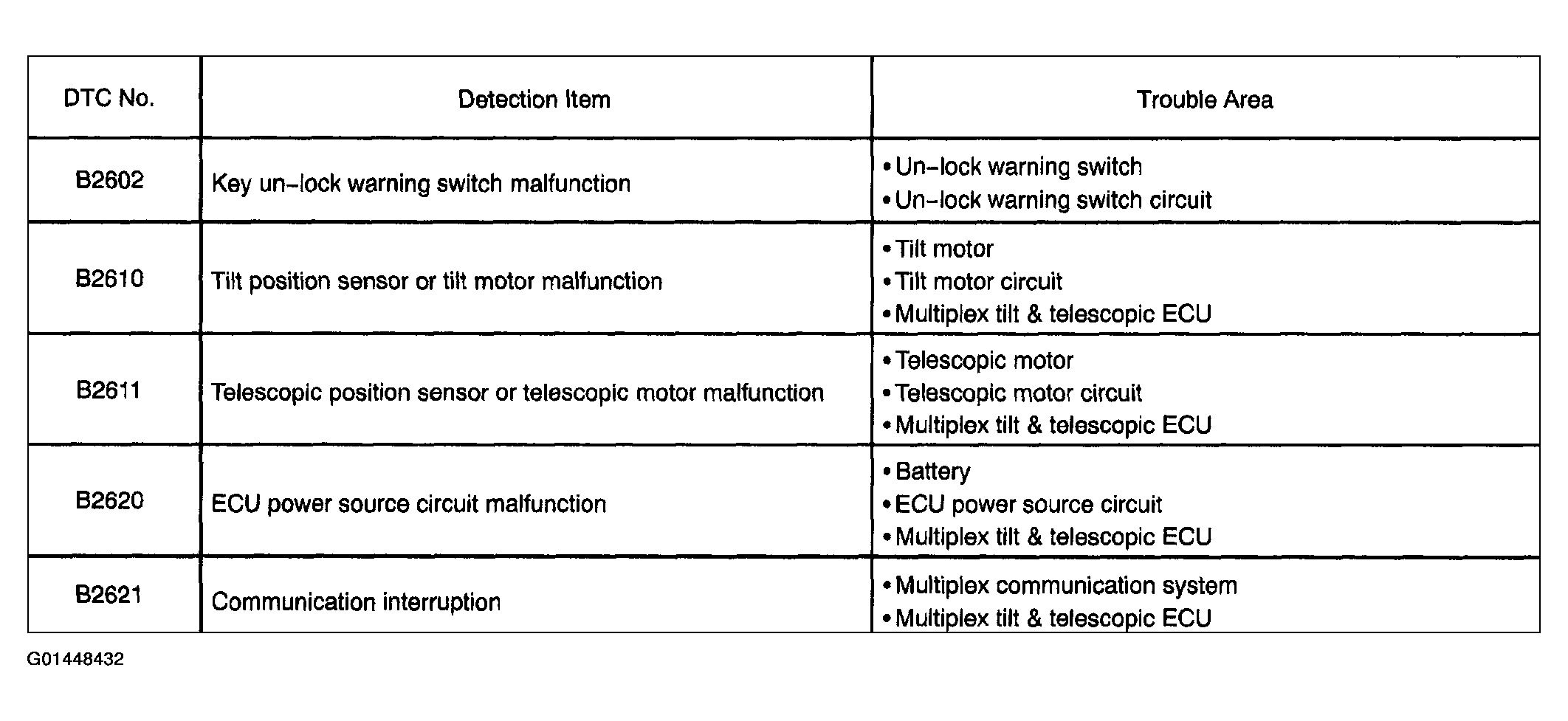

If a DTC is displayed during the DTC check, check the circuit for that code listed in the Fig 1 .
DIAGNOSTIC TROUBLE CODE TABLE
| DTC | Description |
|---|---|
| DTC B2602 | KEY UN-LOCK WARNING SWITCH CIRCUIT MALFUNCTION |
| DTC B2610 | TILT POSITION SENSOR OR TILT MOTOR CIRCUIT MALFUNCTION |
| DTC B2611 | TELESCOPIC POSITION SENSOR OR TELESCOPIC MOTOR CIRCUIT MALFUNCTION |
| DTC B2620 | ECU POWER SOURCE CIRCUIT MALFUNCTION |
| DTC B2621 | COMMUNICATION INTERRUPTION |
