Circuit Description

Refer to DTC P2120 on DTC P2120 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" CIRCUIT, DTC P2122 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" CIRCUIT LOW INPUT, DTC P2123 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" CIRCUIT HIGH INPUT, DTC P2125 THROTTLE/PEDAL POSITION SENSOR/SWITCH "E" CIRCUIT, DTC P2127 THROTTLE/PEDAL POSITION SENSOR/SWITCH "E" CIRCUIT LOW INPUT, DTC P2128 THROTTLE/PEDAL POSITION SENSOR/SWITCH "E" CIRCUIT HIGH INPUT, DTC P2138 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D"/"E" VOLTAGE CORRELATION  .

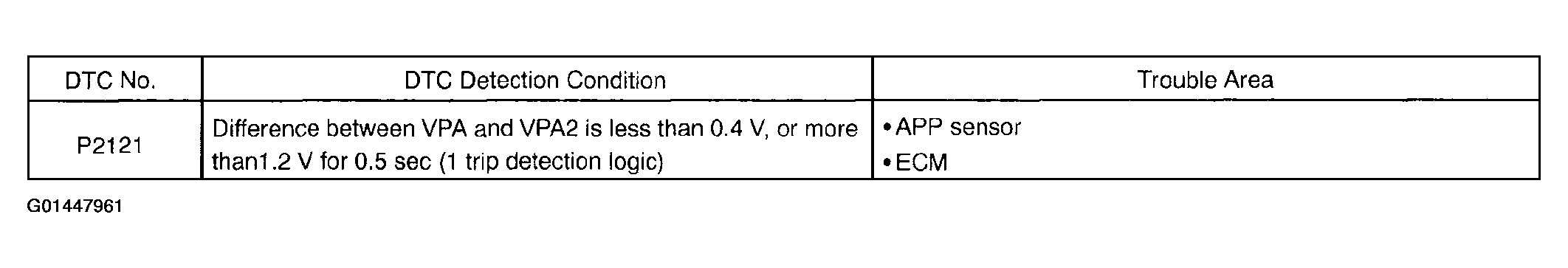

Fig 1: DTC Detection Condition/Possible Cause Chart
G01447961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
