O2S Test Result

Refer to O2S TEST RESULT  for detailed information.

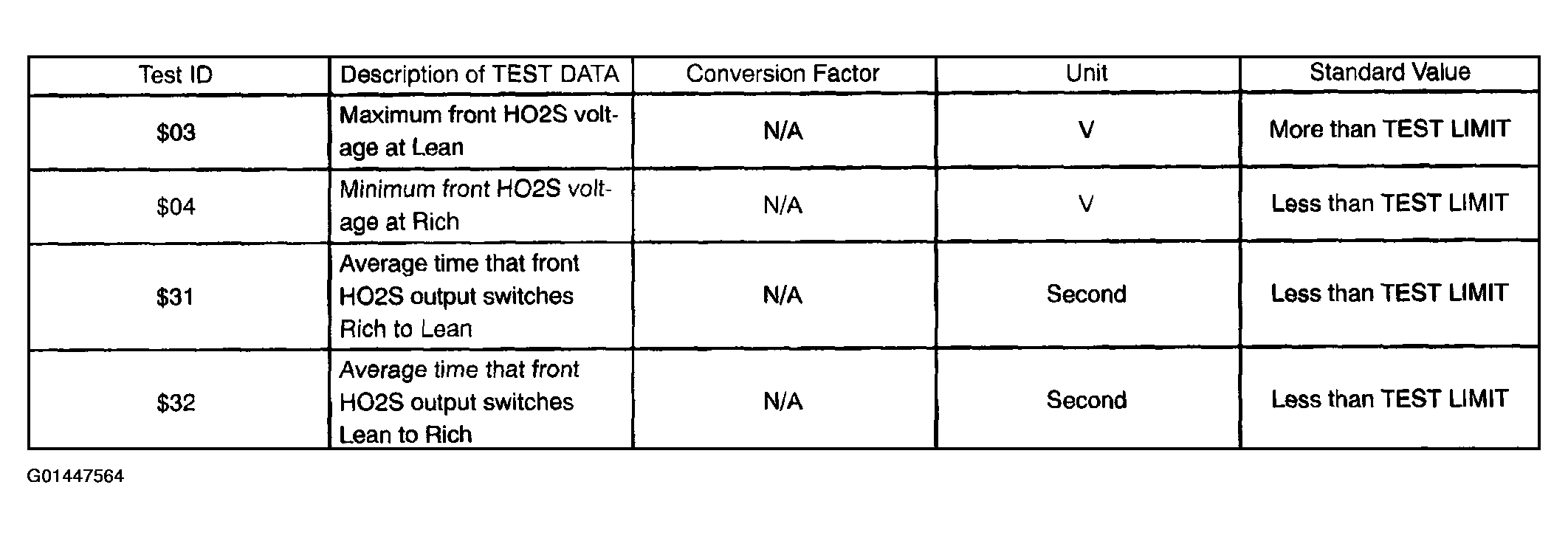

Front HO2S slow slope:

Fig 1: Test Result Chart (Front HO2S Slow Slope)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

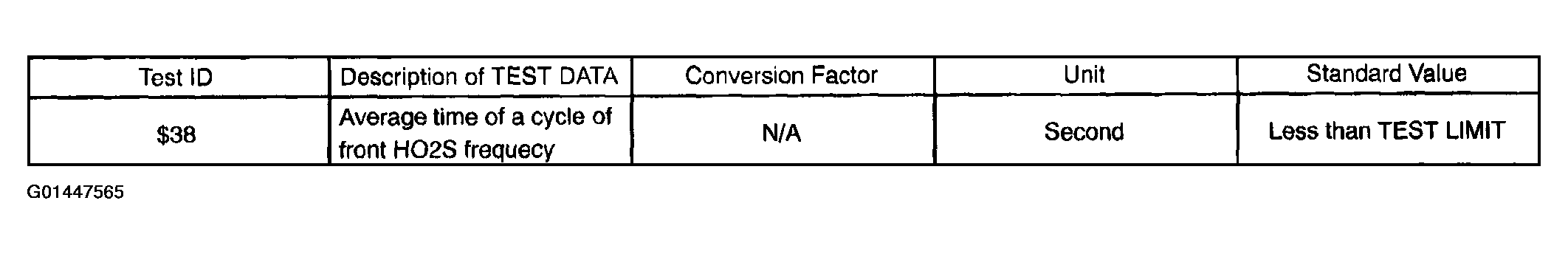

Front HO2S frequency:

Fig 2: Test Result Chart (Front HO2S Frequency)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
