DTC 2: "Code 2 Button Module Failure": Wiring Diagram

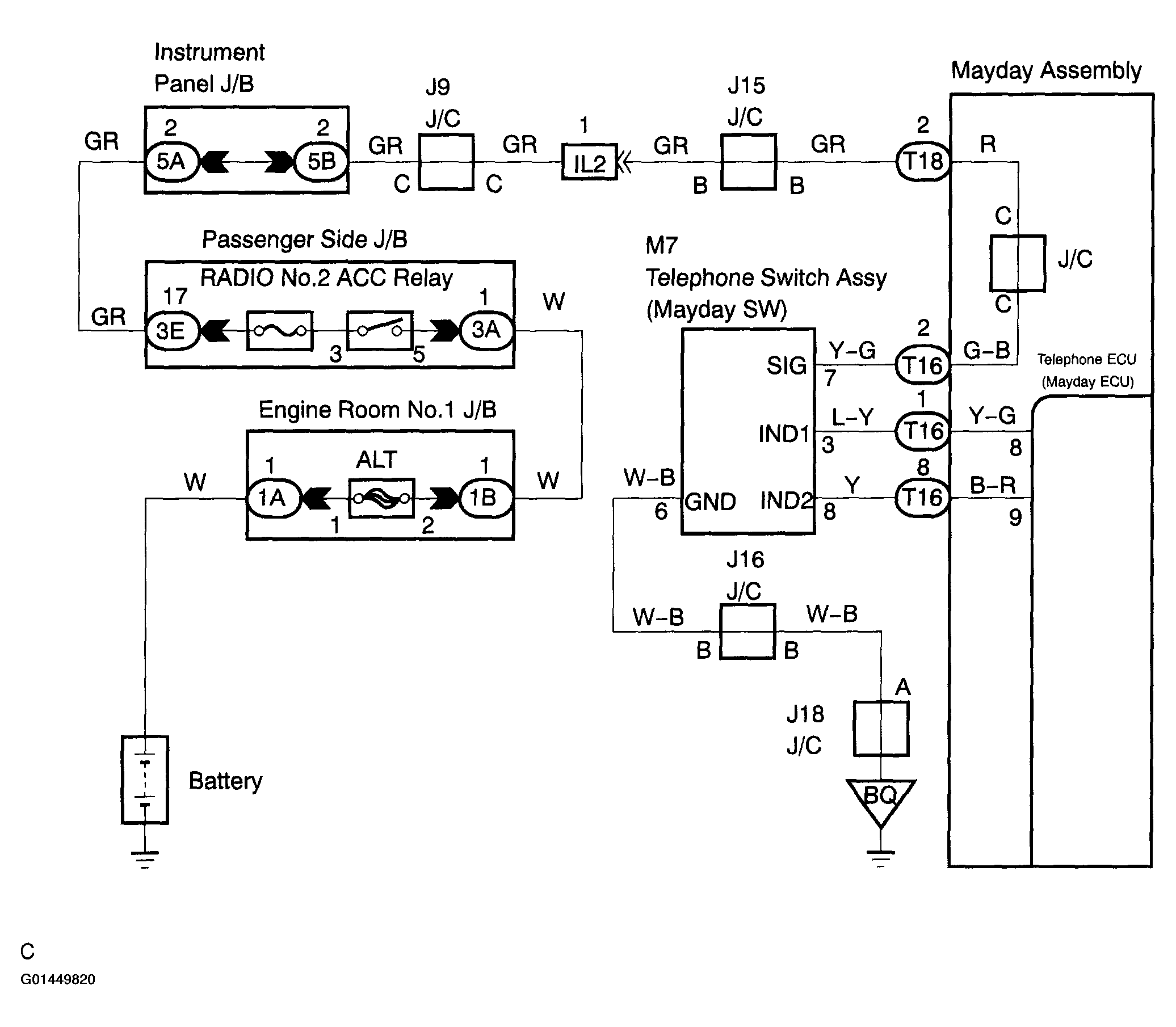

Fig 1: DTC 2 "Code 2 Button Module Failure" Wiring Schematic

G01449820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
