Key Lock-In Prevention Function Does Not Work Properly (Unlock Warning Switch Circuit): Wiring Diagram

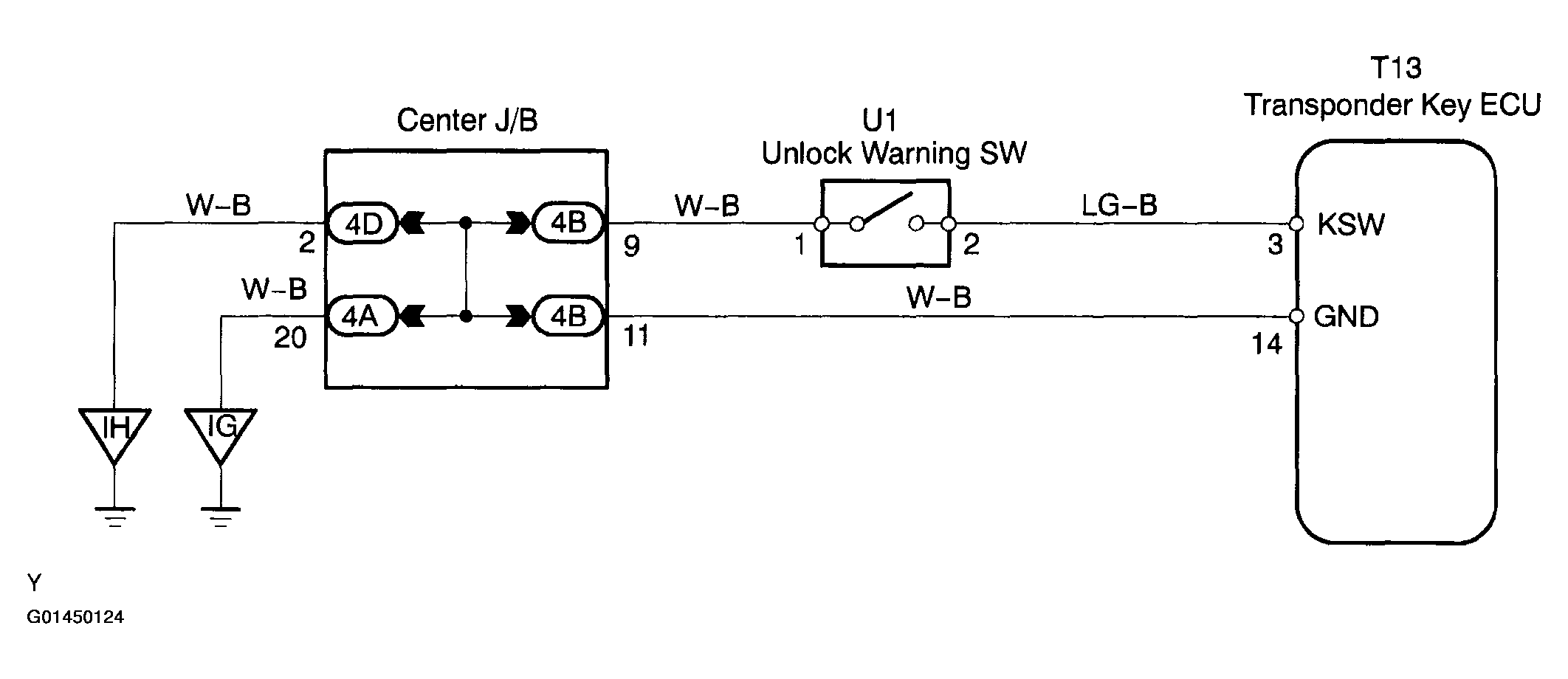

Fig 1: Unlock Warning Switch Circuit Diagram

G01450124

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
