Power Steering Link: Installation

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL POWER STEERING LINK ASSEMBLY
1. Install the power steering link assembly with the 2 bolts and the nuts.
  Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

  Fig 1: Identifying Power Steering Link Assembly With Bolts & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT PRESSURE FEED TUBE ASSEMBLY
1. Using SST, connect the pressure feed tube assembly to the steering link assembly.
  SST 09023-12701

  Torque: 22 N*m (230 kgf*cm, 16 ft.*lbf)

  Fig 2: Connecting Pressure Feed Tube Assembly To Steering Link Assembly Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
  - This torque value is effective when SST is parallel to a torque wrench.
2. Install the pressure feed tube assembly clamp with the bolt.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  Fig 3: Identifying Pressure Feed Tube Assembly Clamp Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT RETURN TUBE ASSEMBLY
1. Using SST, connect the return tube assembly to the steering link assembly.
  SST 09023-12701

  Torque: 22 N*m (230 kgf*cm, 16 ft.*lbf)

  Fig 4: Connecting Return Tube Assembly To Steering Link Assembly Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
  - This torque value is effective when SST is parallel to a torque wrench.
2. Install the tube clamp to the pressure feed tube assembly.
3. Install the pressure feed tube clamp with the nut.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  Fig 5: Identifying Pressure Feed Tube Clamp Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT LH (See INSTALLATION )

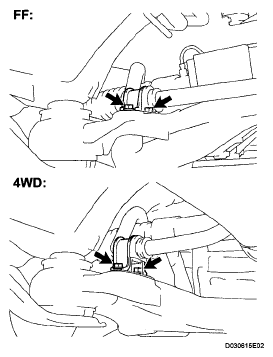

INSTALL FRONT STABILIZER BRACKET NO.1 LH
1. FF:
  Install the stabilizer bracket No. 1 LH with the 2 bolts.

  Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)
2. 4WD:
  Install the stabilizer bracket No. 1 LH and the stabilizer bracket No. 2 with the 2 bolts.

  Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

  Fig 6: Identifying Front Stabilizer Bracket No.1 LH Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT STABILIZER BRACKET NO.1 RH
HINT:

Perform the same procedure on the other side.
INSTALL EXHAUST PIPE ASSEMBLY FRONT (See INSTALLATION )
CONNECT FRONT STABILIZER LINK ASSEMBLY LH (See INSTALLATION )
CONNECT FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure on the other side.
CONNECT TIE ROD ASSEMBLY LH (See INSTALLATION )
CONNECT TIE ROD ASSEMBLY RH
HINT:

Perform the same procedure on the other side.
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CONNECT STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY
1. Align the matchmarks on the intermediate shaft sub-assembly and the steering link assembly.

  Fig 7: Aligning Matchmarks On Intermediate Shaft Sub-Assembly & Steering Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the bolt.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
3. Tighten the bolt A.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
4. Install the steering column hole cover No. 2 to the steering hole cover No. 1.
5. Install the clamp to the steering column hole cover No. 1 and tighten the bolt B.

  Fig 8: Identifying Steering Intermediate Shaft Sub-Assy Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BLEED POWER STEERING FLUID (See BLEEDING )
CHECK POWER STEERING FLUID LEAKAGE
CHECK FOR EXHAUST GAS LEAKS
INSPECT STEERING WHEEL CENTER POINT
