Air Bag Sensor Front LH: Replacement

HINT:

Replacement procedure of the RH side is the same as that for the LH side.

1. (SEE  PRECAUTION  )
2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  PRECAUTION  )
3. REMOVE LH HEADLAMP ASSY (SEE  OVERHAUL  )
4. REMOVE AIR BAG SENSOR FRONT LH
   1. Remove the 2 bolts and the airbag sensor front LH.
   2. Disconnect the connector from the airbag sensor front LH.

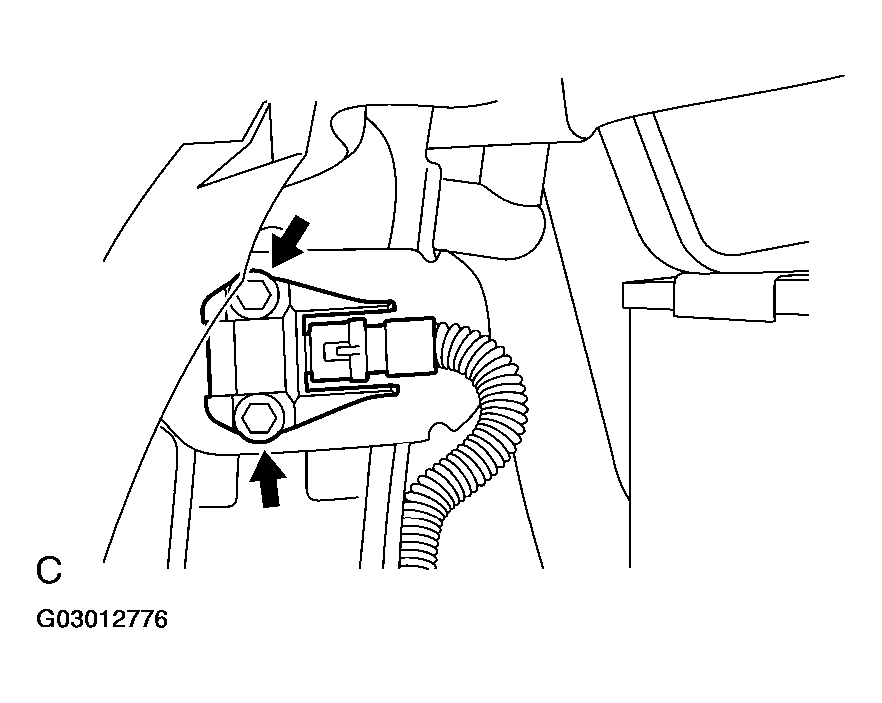

      Fig 1: Removing Bolts And Airbag Sensor Front LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL AIR BAG SENSOR FRONT LH
   1. Check that the ignition switch is off.
   2. Check that the battery negative (-) terminal is disconnected.
      NOTE: Do not start the operation for 90 seconds after removing the terminal.
   3. Install the airbag sensor front LH with the 2 bolts.

      Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)

      NOTE:

      • If the airbag sensor front LH has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace the airbag sensor front LH with a new one.
      • When installing the airbag sensor front LH, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
   4. Connect the connector of the airbag sensor front LH.
   5. Check that no play is identified.
6. INSTALL LH HEADLAMP ASSY (SEE  OVERHAUL  )
7. HEADLIGHT AIM ONLY (SEE  ADJUSTMENT  )
8. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
